Velleman

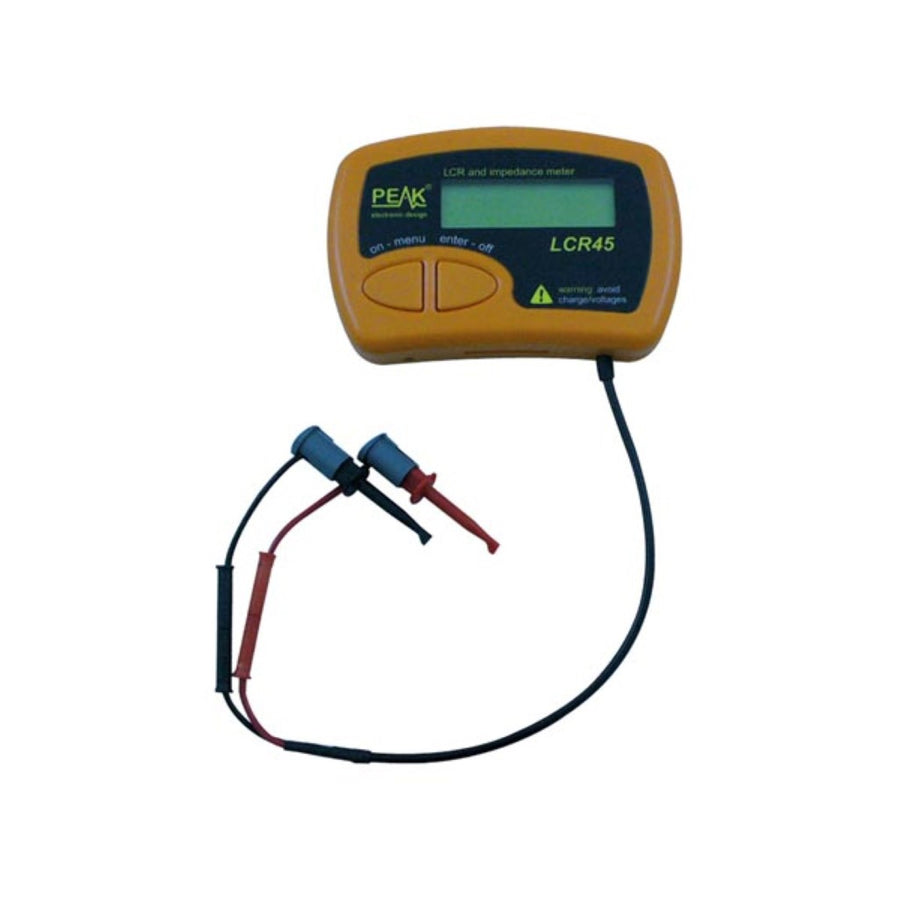

Peak LCR impedance analyzer LCR45 measuring resistance inductance capacitance
SKU: 86358
EAN: 7001532229696
✓ Free shipping, VAT included.
Express 24h shipping
30-day returns
2-year warranty
Only 1 left in stock
Secure Payments
Peak LCR45 impedance meter analyzer wires
The LCR45 analyzer is a precision tool for measuring resistance, inductance and capacitance. With its compact design and intuitive interface, the device is ideal for use in laboratories and by hobbyists. Equipped with an LCD display, it allows for quick and accurate readings.
The LCR / Impedance Analyzer LCR45 is indispensable in electronics work, enabling precise measurements of key component parameters. It can be used to test capacitors, inductors and resistors, making it an invaluable tool in the diagnosis and repair of electronic devices. Thanks to its versatility, it is used both in professional laboratories and in home workshops.
Specification:
- Manual language: English
- Colors: orange
- Dimensions: 20 x 14 x 3 mm
- Weight: 165 g
- Display type: digital
Specification of capacitance:
- range: 0.5 pF to 10000 µF
- resolution: 0.2 pF
- Accuracy: ± 1.5 % ± 0.6 pF
Specification of resistance:
- Range: 0 Ohm to 2 MOhm
- Resolution: 0.1 Ohm
- Accuracy: ± 1.0 % ± 0.6 Ohm
Specification of inductance:
- Range: 1 µH to 10 H
- resolution: 0.2 µH
- accuracy: ± 1.5 % ± 0.6 µH
Impedance of passive element:
- Re and Im: ± 1.5 % ± 10 LSD
- magnitude: ± 1.5 % ± 10 LSD
- phase: ± 5 %.
- Measurement sampling frequency: 0.5-2 Hz
- Peak test current through s/c: -3.25-3.25 mA
- Peak test voltage by o/c: -1.05-1.05 V
- Sine wave purity: 60 dB 3rd harmonic
- Test frequency accuracy:
- 1 kHz: ± 0.5 %
- 14.9254 kHz: ± 0.5 %
- 200 kHz: ± 0.5 %
- Operating temperature: 10-40 °C
- Rated battery voltage range: 8.5-13 V
- Number of batteries: 1
- Battery size: A23 (8LR932, 1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
Set contains:
- Peak LCR/Impedance Analyzer LCR45
- Test leads
- User manual (English)
- Manufacturer's packaging
- Allows measurement of resistance, inductance and capacitance
- Smooth measurement with hold function
- Component type - set automatically or manually
- Test frequency - set automatically or manually, DC, 1 kHz,15 kHz or 200 kHz
- Clear menu
- Shutdown - automatic or manual
- Interchangeable test leads included.
