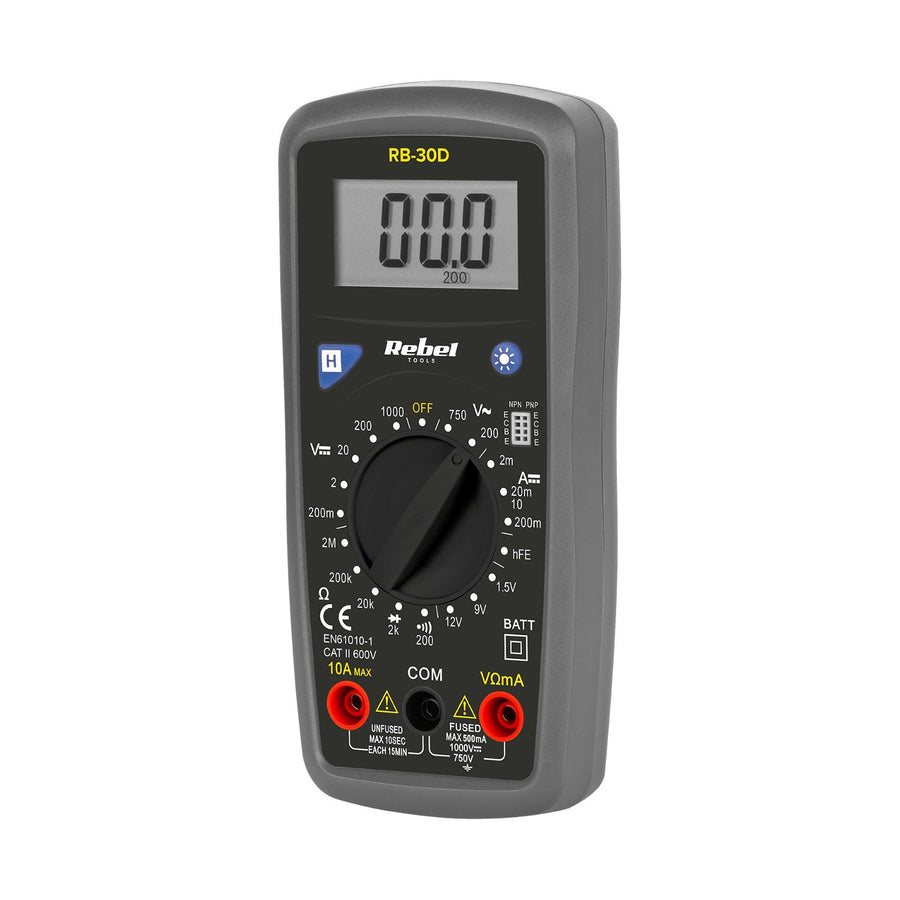

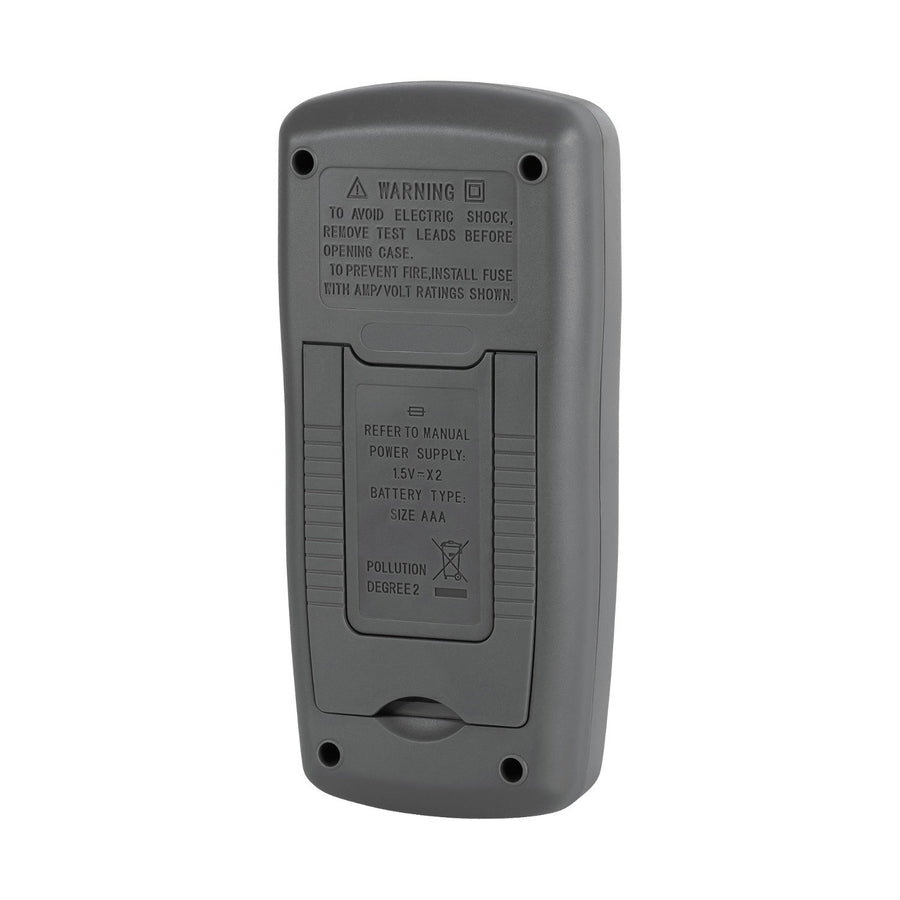

The Rebel Tools RB-30D universal meter includes test leads
SKU: 72437
EAN: 5901890058186
Shipping from £4.85, VAT included.
Express 24h shipping
30-day returns
2-year warranty
Only 3 left in stock
Secure Payments
Rebel Tools are primarily devices designed to support DIYers who want to carry out minor renovation work themselves. This series has been expanded with the REBEL RB-30D universal meter sold in this offer.
Specification:
- Backlit display
- Manual change of measuring ranges

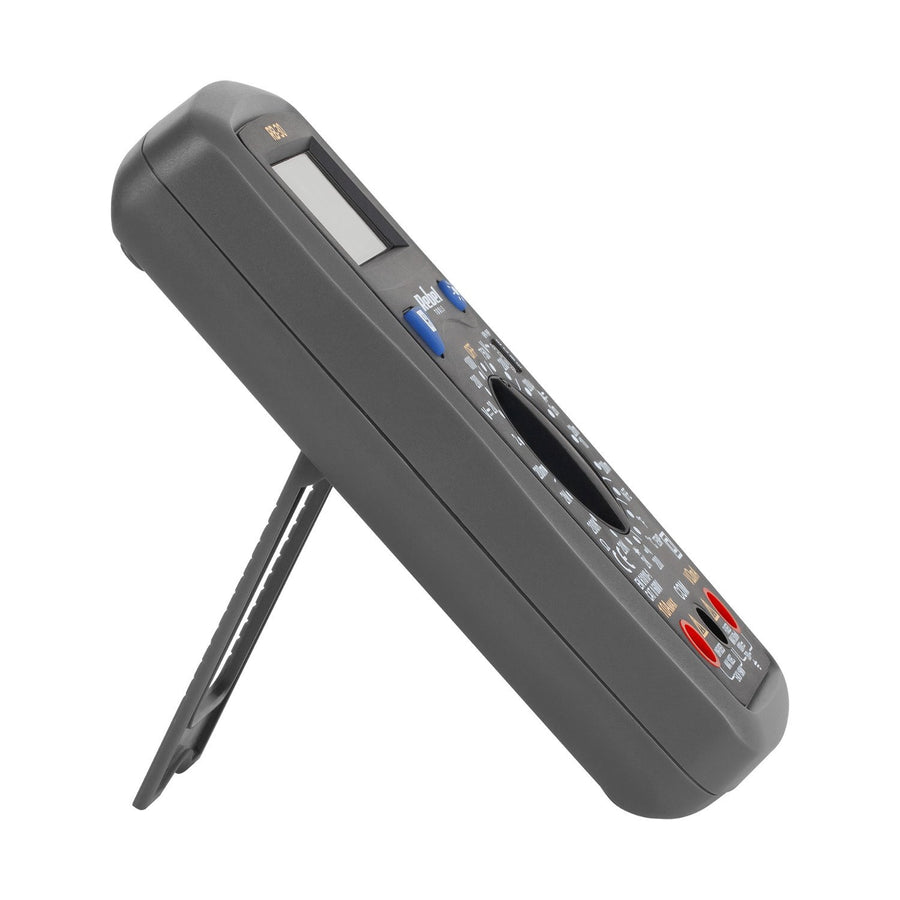

- Fold-out stand
- Freeze the last reading
- Low battery indication
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 45 x 21 mm
- Working temperature: 0°C~40° with humidity <80%
- Storage temperature: -10°~50°C with humidity <85%
- Power supply: 2x AAA battery
- Dimensions: 160 x 76 x 32 mm
- Weight: 150g
MEASUREMENT RANGE
- DC voltage: 200mV, 2V, 20V, 200V, 1000V ± (1% + 5)
- AC voltage: 200V, 750V ± (2% + 10)
- DC Current: 2 mA, 20 mA, 200 mA, 10 A ± (2% + 10)
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm ± (1% + 4)
- Battery test: 1.5V, 9V, 12V
- Diode Test
- hFE transistor test
- Continuity Tests
Set contains:
In kit:
- Rebel Tools RB-30D universal gauge

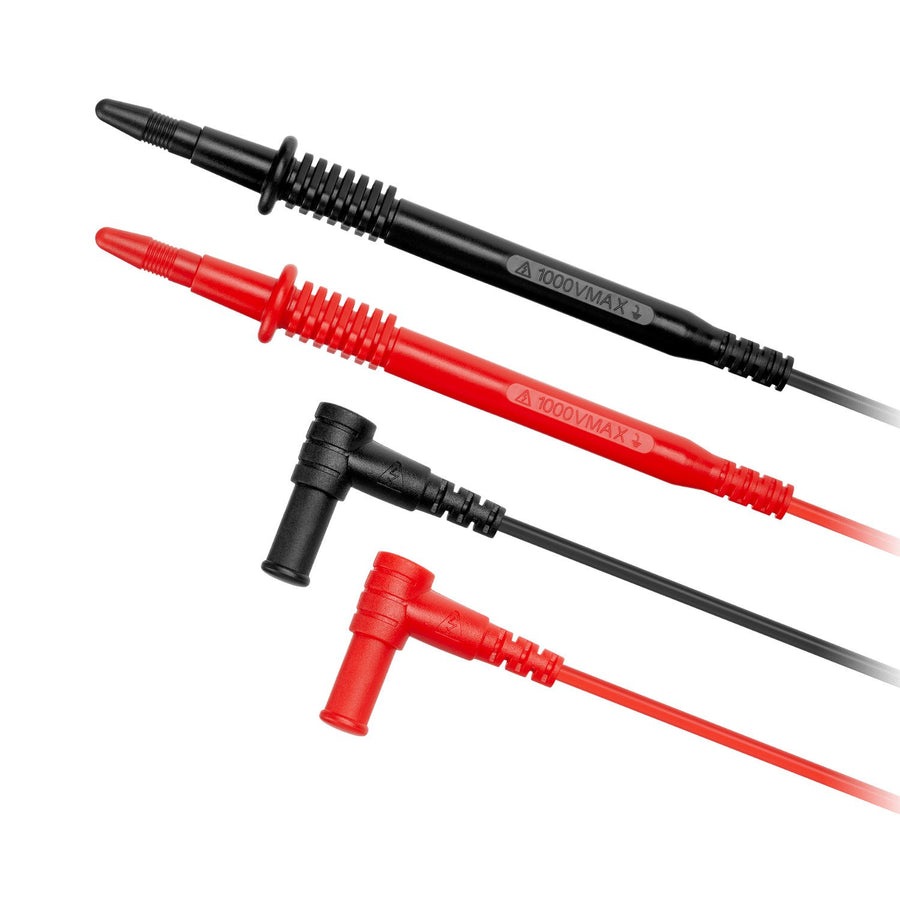

- Test leads
- Instruction manual

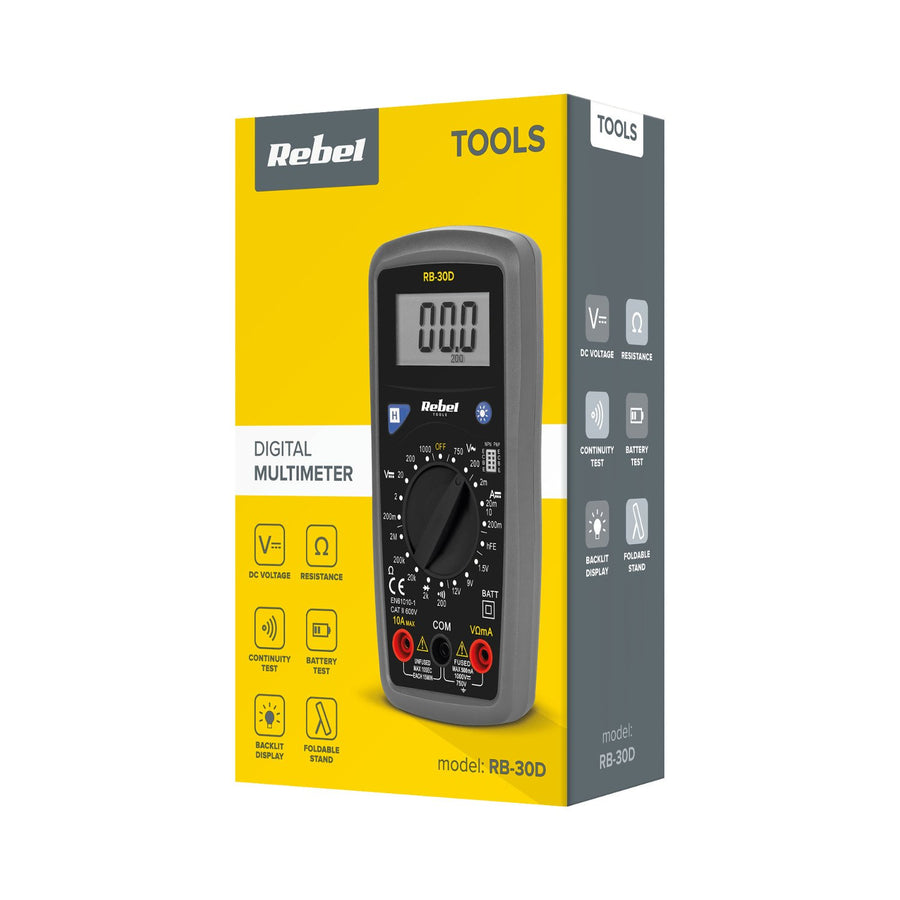

- Manufacturer packaging
- Backlit display
- Manual change of measuring ranges
- Fold-out stand
- Freeze the last reading
- Low battery indication
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 45 x 21 mm
- Working temperature: 0°C~40° with humidity <80%
- Storage temperature: -10°~50°C with humidity <85%
- Power supply: 2x AAA battery
- Dimensions: 160 x 76 x 32 mm
- Weight: 150g
- Included: meter, test leads, manual
Specification:
- Backlit display
- Manual change of measuring ranges
- Fold-out stand
- Freeze the last reading
- Low battery indication
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 45 x 21 mm
- Working temperature: 0°C~40° with humidity <80%
- Storage temperature: -10°~50°C with humidity <85%
- Power supply: 2x AAA battery
- Dimensions: 160 x 76 x 32 mm
- Weight: 150g
MEASUREMENT RANGE
- DC voltage: 200mV, 2V, 20V, 200V, 1000V ± (1% + 5)
- AC voltage: 200V, 750V ± (2% + 10)
- DC Current: 2 mA, 20 mA, 200 mA, 10 A ± (2% + 10)
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm ± (1% + 4)
- Battery test: 1.5V, 9V, 12V
- Diode Test
- hFE transistor test
- Continuity Tests
Set contains:
In kit:
- Rebel Tools RB-30D universal gauge
- Test leads
- Instruction manual
- Manufacturer packaging
- Backlit display
- Manual change of measuring ranges
- Fold-out stand
- Freeze the last reading
- Low battery indication
- Polarization: automatic
- Sampling rate: 2 times per second
- Maximum reading: 1999
- Screen size: 45 x 21 mm
- Working temperature: 0°C~40° with humidity <80%
- Storage temperature: -10°~50°C with humidity <85%
- Power supply: 2x AAA battery
- Dimensions: 160 x 76 x 32 mm
- Weight: 150g
- Included: meter, test leads, manual
