Blaupunkt VT100SL vertical turntable silver 2x5W
UNIQUE DESIGN! GREAT SOUND! INCREDIBLE FEATURES!
Sophisticated and unusual vertical design, resonance-resistant structure and fully automatic belt drive are just some of the strengths of this device. Built-in bi-directional Bluetooth, Audio Technica AT3600L cartridge, headphone output and RCA audio output, as well as built-in speakers powered by a 2 x 5 Watt RMS output amplifier and a smart arm position control button round out the list of impressive features.

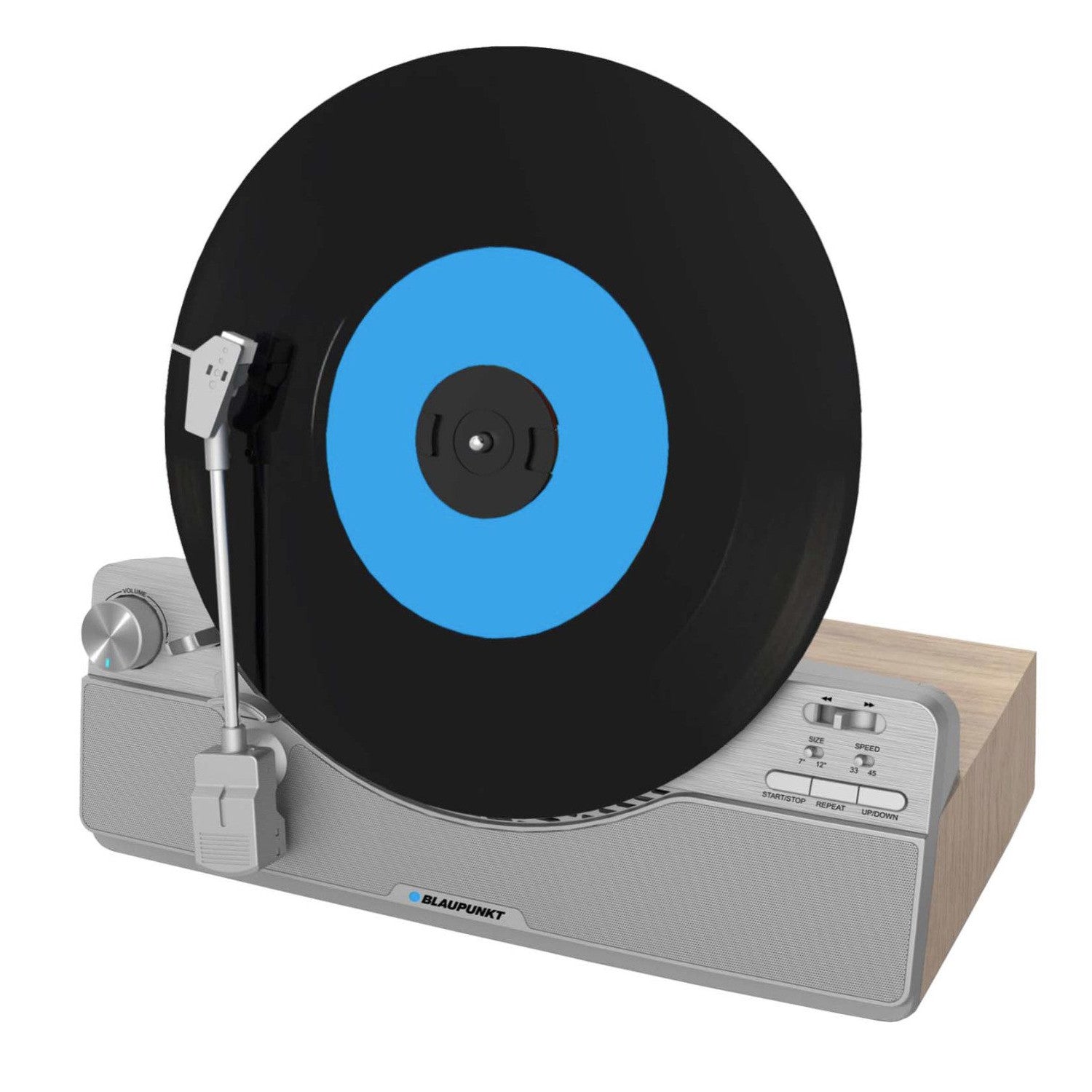

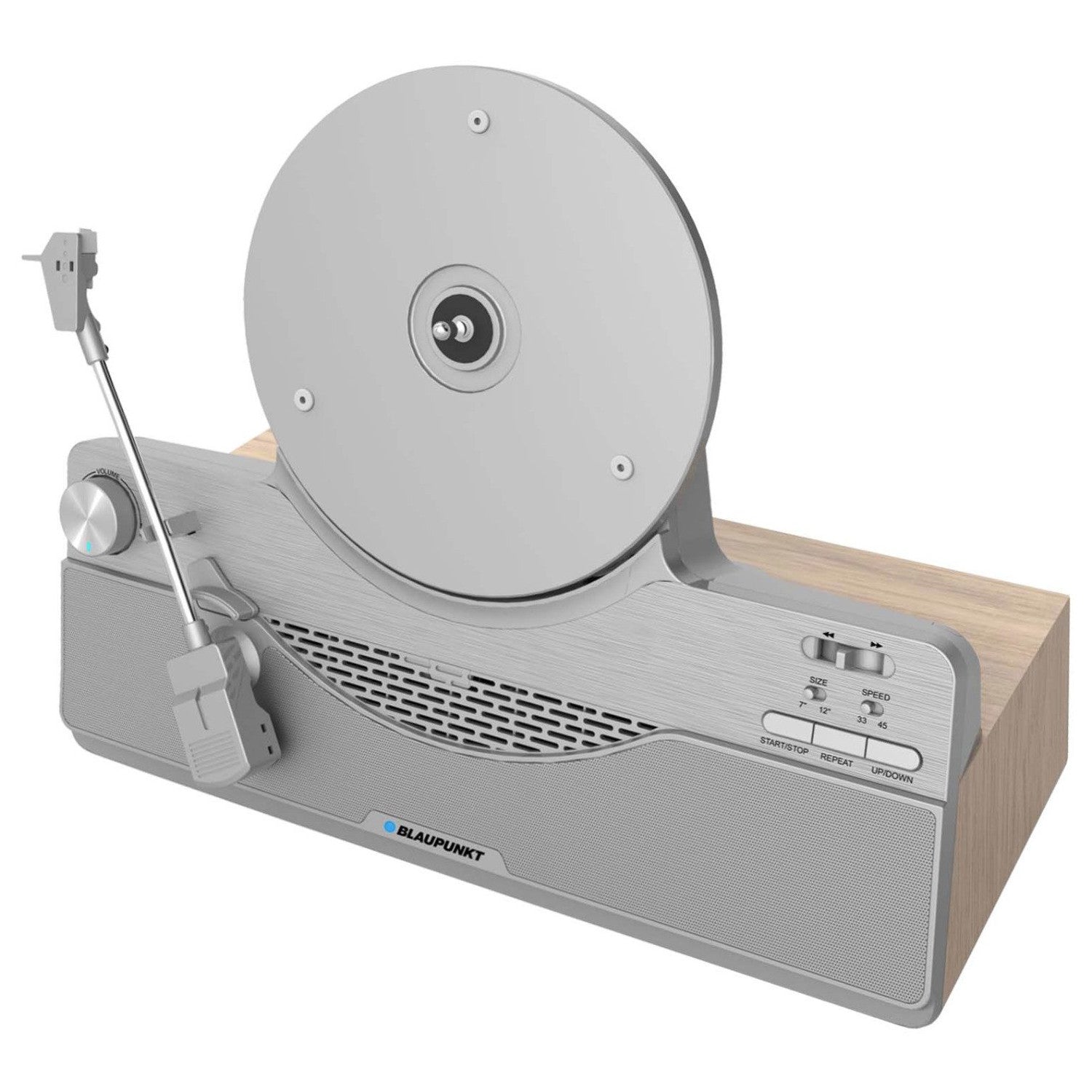

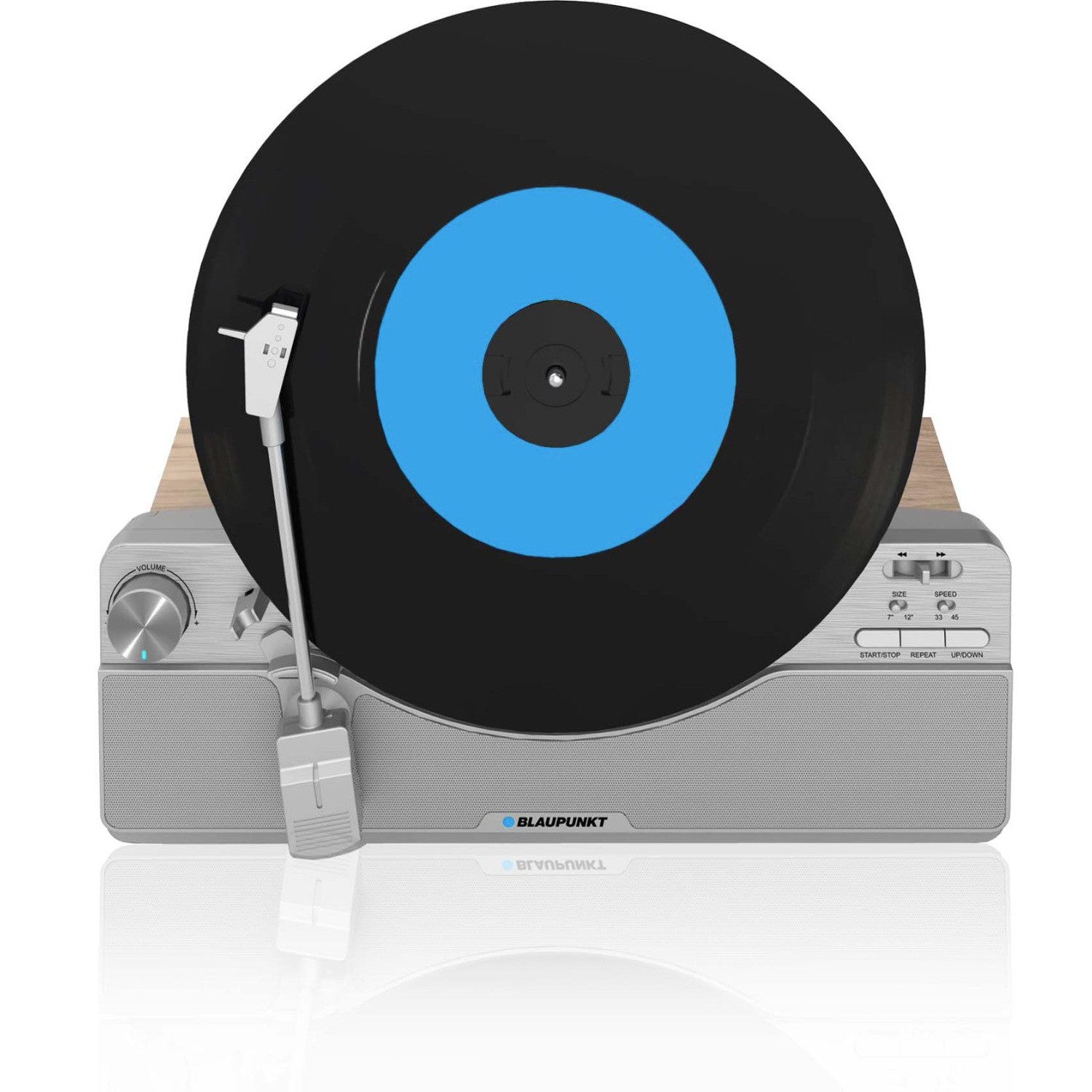

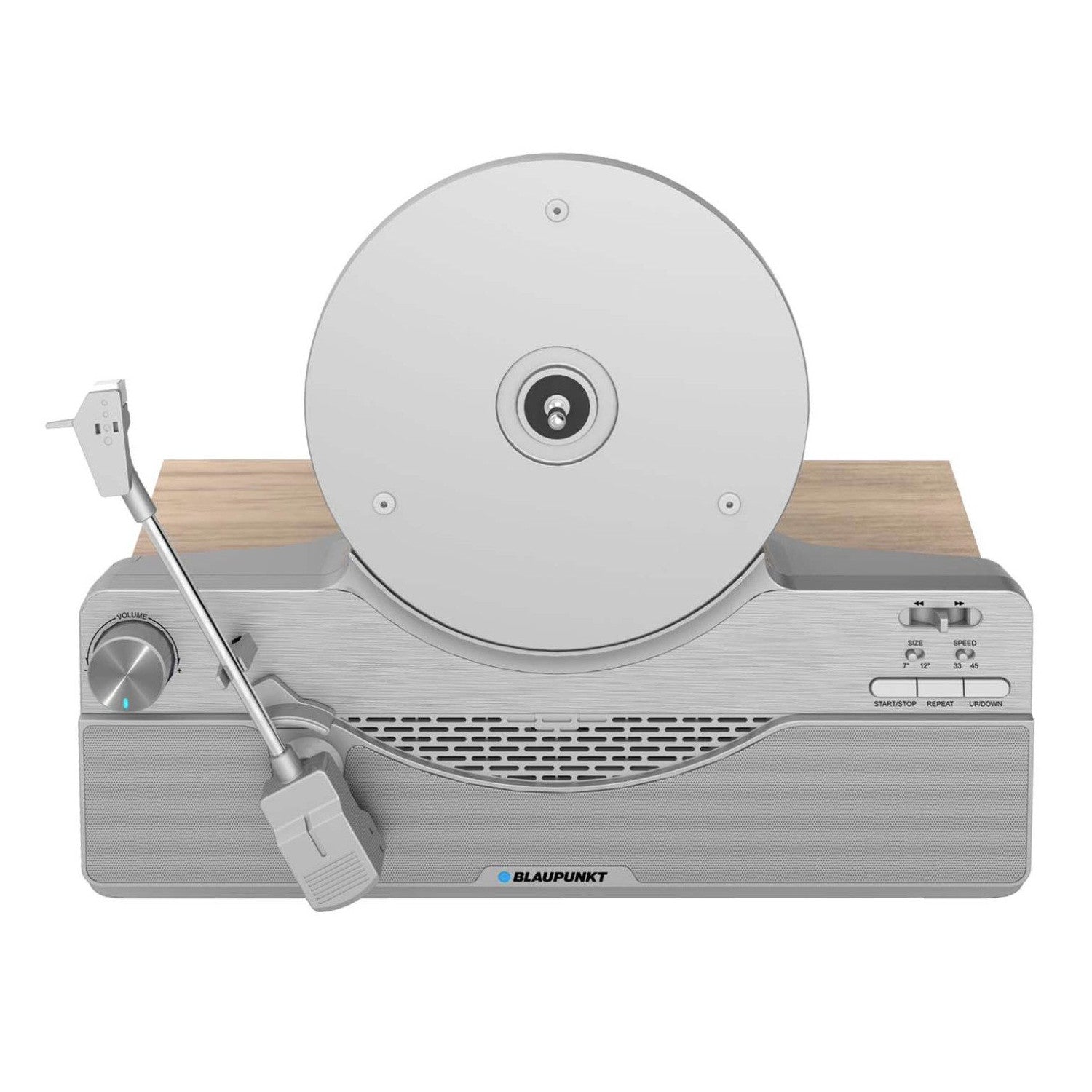

VT100SL is an unconventional vertical turntable in terms of design, which combines elements of vintage style with modern functionality.
FULLY AUTOMATIC SYSTEM
This is a fully automatic turntable, which means that virtually all operation comes down to mounting the vinyl record on the platter and activating the start button. The unit then activates a mechanism that moves the arm from its resting position to the place where the record starts playing. The turntable supports both long-playing records with a diameter of 12″ and 7″ records, so-called singles. Before starting playback, switch the record size switch on the turntable's main panel to the appropriate position. When you finish playing the record, the turntable arm will automatically lift up and return to the rest position, unless you enable the repeat playback function using the REPEAT button on the control panel, in which case the arm will return to its original position and start playing the record again.BELT DRIVE
VT100SL is equipped with a belt drive - a classic and proven method of transferring torque from a slow-speed motor to the turntable platter. The undoubted advantages of this solution are quiet operation and relatively low operating costs - the belt itself is replaced every few years or when there is an audible change in speed.
TWO PLAYING SPEEDS
This model supports two playback speeds - 33 1/3 and 45 rpm. The speed is changed using a dedicated switch on the control panel. The speed should be adjusted according to the speed at which the vinyl record was pressed - usually this information can be found on the record label or in the insert attached to the album. If there is no such information, you will hear very quickly whether the selected playback speed is correct - in which case it should be adjusted.
RAP POSITION CONTROL
VT100 also has a rare function of controlling the arm position. Using the appropriate switch on the control panel, you can move the arm both forward and backward to select the appropriate track on the record or return to a specific part of the song being played.
MMC CARTRIDGE
The turntable is equipped with an AT3600L cartridge from the renowned manufacturer Audio-Technica. It is a cartridge with a moving magnet and a spherical cut diamond needle, providing a detailed and warm sound. For optimum playback quality, the pressure on the needle has been set at the optimum level for this design - 3.5g.
BUILTED STEREO SPEAKER WITH PASSIVE MEMBRANE
VT100SL has a built-in stereo speaker with a passive diaphragm for improved acoustic characteristics in the bass range. The speaker is powered by a built-in amplifier with a rated output power of 2 x 5 watts RMS. This allows the turntable to provide optimal sound in an intimate space.
Specification:
- Fully automatic belt-driven turntable
- Two playback speeds: /rpm
- Playback of 7" and 12 "vinyl records
- Push button control of turntable arm
- Repeat function for playing vinyl records
- Audio-Technica AT-3600L cartridge
- Bluetooth OUT function for wireless connection of external speakers or Bluetooth headphones
- Bluetooth IN function - for wireless music playback from smartphone, tablet, PC
- Built-in stereo speaker with passive heat sink
- Output power: 2×5 W RMS 10% THD
- Anti-resonant design
- MDF enclosure
- Rubber shock absorbing feet to reduce low frequency feedback
- Vertical design
- 3.5 mm headphone jack
- RCA line output
- Power supply: DC 9 V 1.5 A
- Dimensions of the device: 380 x 307 x 215 mm
- Device dimensions (SxWxG): 380 x 307 x 215 mm
- Net weight of the device: 3 kg
Set contains:
- Blaupunkt VT100SL vertical turntable
- Owner's manual
- Manufacturer's packaging
ANTI-RESONANT CONSTRUCTION
The built-in speaker features an anti-resonant design that dampens vibrations and nullifies their effect on the cartridge's operation. The entire body of the turntable is also equipped with rubber feet with sufficient flexibility to reduce the possibility of low-frequency feedback effects.
TWO-WAY BLUETOOTH MODULE (IN-OUT)
The player is equipped with a two-way Bluetooth module, which makes it possible to play music files, for example, from a smartphone using the built-in stereo speaker. However, the key functionality of this module is the ability to connect external active speakers or amplifiers, as well as Bluetooth headphones and play the vinyl signal using them.
AUDIO SIGNAL OUTPUTS
There is also a classic headphone output in the form of a mini-jack socket and a line-level RCA output, located at the rear of the chassis. Thanks to these outputs, with the use of appropriate cables, it is possible to connect the turntable to a microphone or to more advanced audio systems.HIGH QUALITY MATERIALS
The turntable has been made from a combination of high quality materials - plastic, which makes up the front panel, a metal grille covering the speaker and MDF, from which the body is made. The whole is finished with a veneer in the color of European oak.
Unique appearance, functionality and ease of use are features that are sure to appeal to any person who appreciates the warmth of analog sound and unparalleled design. This is a treat for both vintage style enthusiasts and fans of more modernistic forms. The VT100SL is certainly not just another ordinary vinyl record player! It's an elegant accessory that will fill any space with good sound and give a shout-out to good style.
- Fully automatic belt-driven turntable
- Two playback speeds: 33 1/3, 45 RPM
- Two speeds./min
- Playback of 7" and 12 "vinyl records
- Audio-Technica AT-3600L cartridge
- Bluetooth OUT function for wireless connection of external speakers or Bluetooth headphones
- Bluetooth IN function for wireless music playback from smartphone, tablet, PC
- Output power: 2×5 watts RMS 10% THD
- Anti-resonant design
- Rubber cushioning feet to reduce low frequency feedback
- Vertical design.
