AB CryptoBox 742HD Combo DVB-T2/S2/C Full HD Set-Top Box

AB CryptoBox 742HD Combo DVB-T2/S2/C Set-Top Box

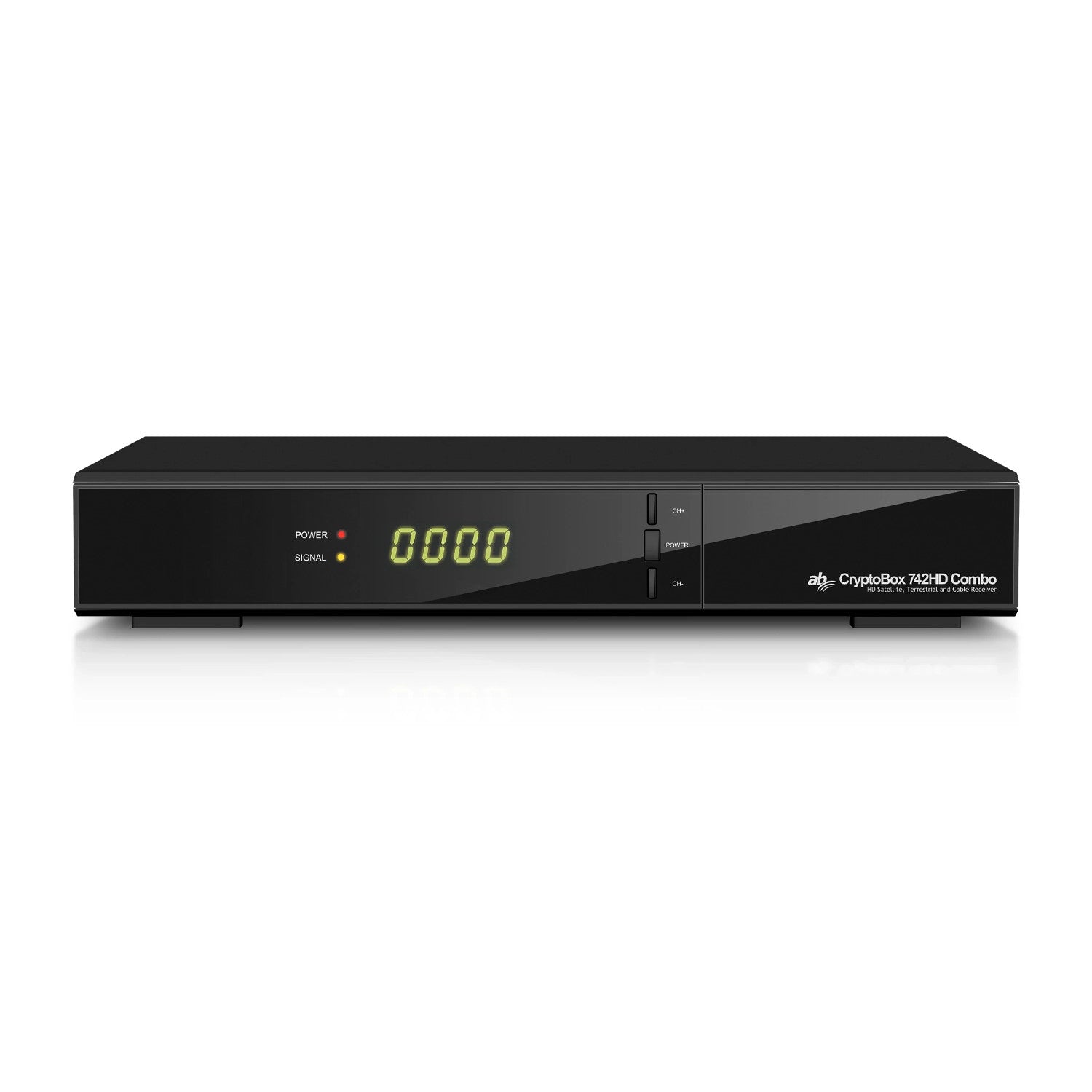

The AB CryptoBox 742HD Combo is a versatile Full HD TV receiver designed for users who want to access various signal sources using a single device. The model supports DVB-S2 satellite TV, DVB-T/T2 terrestrial TV, and DVB-C cable TV, making it ideal for use both at home and in locations where various types of antenna installations are available. The receiver supports the H.265/HEVC codec and video resolutions up to 1080p, allowing you to receive channels broadcast using modern compression standards. The front panel features a clear, 4-digit 7-segment LED display that shows basic information such as the channel number or the current time.

The device was designed with simple setup and convenient everyday use in mind. The All Scan feature makes it easy to set up the receiver for the first time—after selecting a language and inserting the appropriate access card, the tuner can automatically tune in to the selected provider. Additionally, the FastScan and Auto FastScan features allow you to quickly search for and organize the channel list by provider, and in the event of changes to the provider’s lineup, the receiver can automatically update the channel list. This is a practical solution for people who don’t want to manually search for channels or reorder them themselves after every update to broadcast parameters.

Specification:
- 1 x DVB-S2 tuner (H.265 / HEVC)
- 1 x DVB-T/T2/C tuner (H.265 / HEVC)
- 1 x card reader
- 1 x CI slot
- 1 x HDMI
- 2 x USB 2.0
- 1 x S/PDIF optical digital audio output
- 7-segment display
- Automatic detection and identification of satellites on a connected DiSEqC switch
- FastScan - automatic channel tuning by provider
- Auto FastScan - automatic channel list update
- 10/100 Mbit RJ45 Ethernet
- USB Wi-Fi support (optional accessory)
- Video (HD): 1920x1080P, 1920x1080i, 1280x720p
- Video (SD): 720x480p, 720x480i, 720x576i, 720x576p
- Aspect ratios: 4:3, 16:9 Pan & Scan, Letterbox
- Audio: MPEG-1/2 Layer I and II (Musicam), MPEG-4 AAC and MPEG-4 AAC-HE (AAC+), LPCM up to 48 kHz, MP3
- Supported music formats: MP3, WMA, FLAC, Ogg, MP2
- Images: JPG, BMP, GIF, PNG
- Memory: 20,000 channels, 200 satellites, 8,000 transponders
- Support for favorite groups and parental controls
- Supported channel operations: lock, delete, move (move group), rename, swap
- 7-day Electronic Program Guide (EPG)
- Software updates via USB, RS232, or Ethernet
- Dimensions in mm: 260x188.5x46

Set contains:
- AB CryptoBox 742HD Combo DVB-T2/S2/C

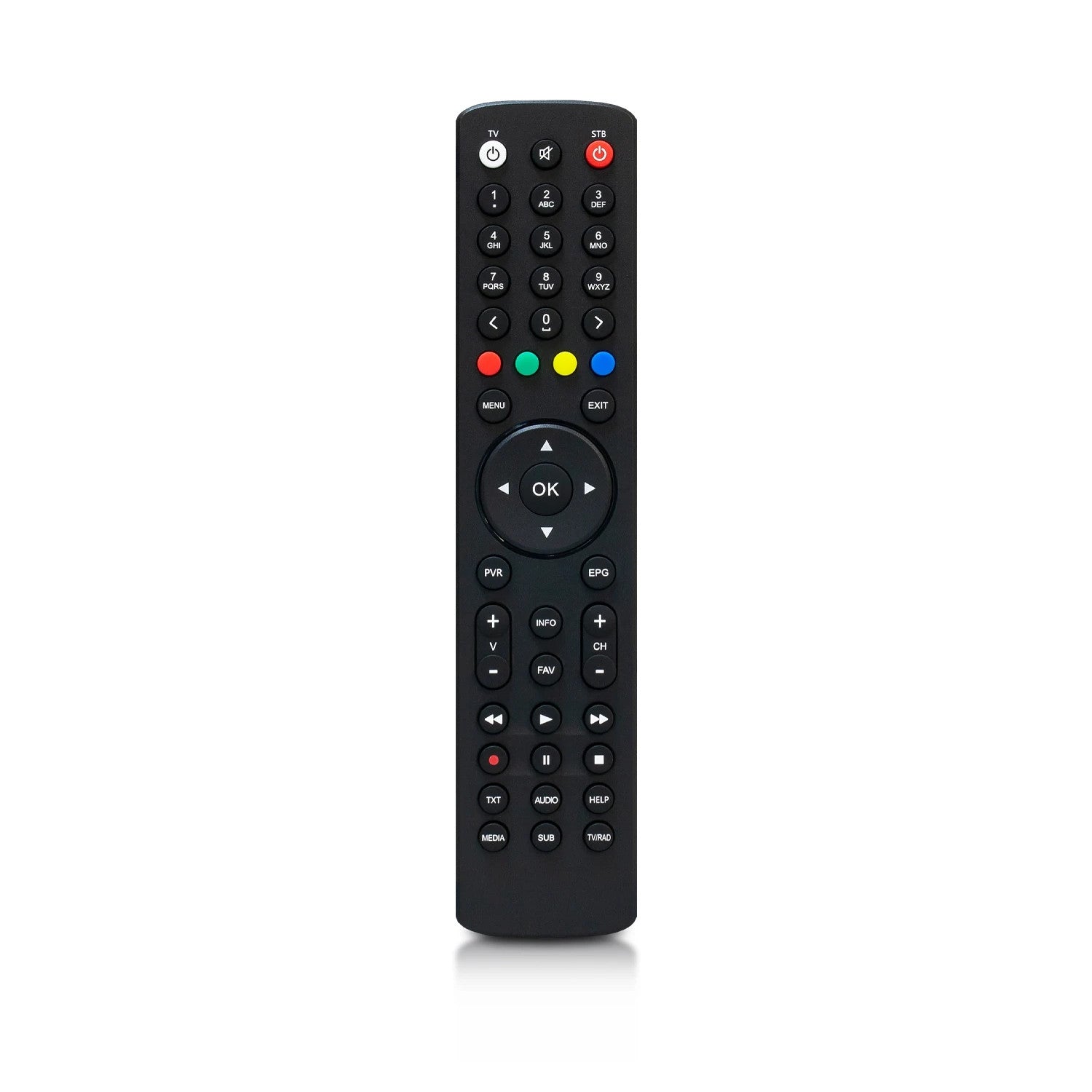

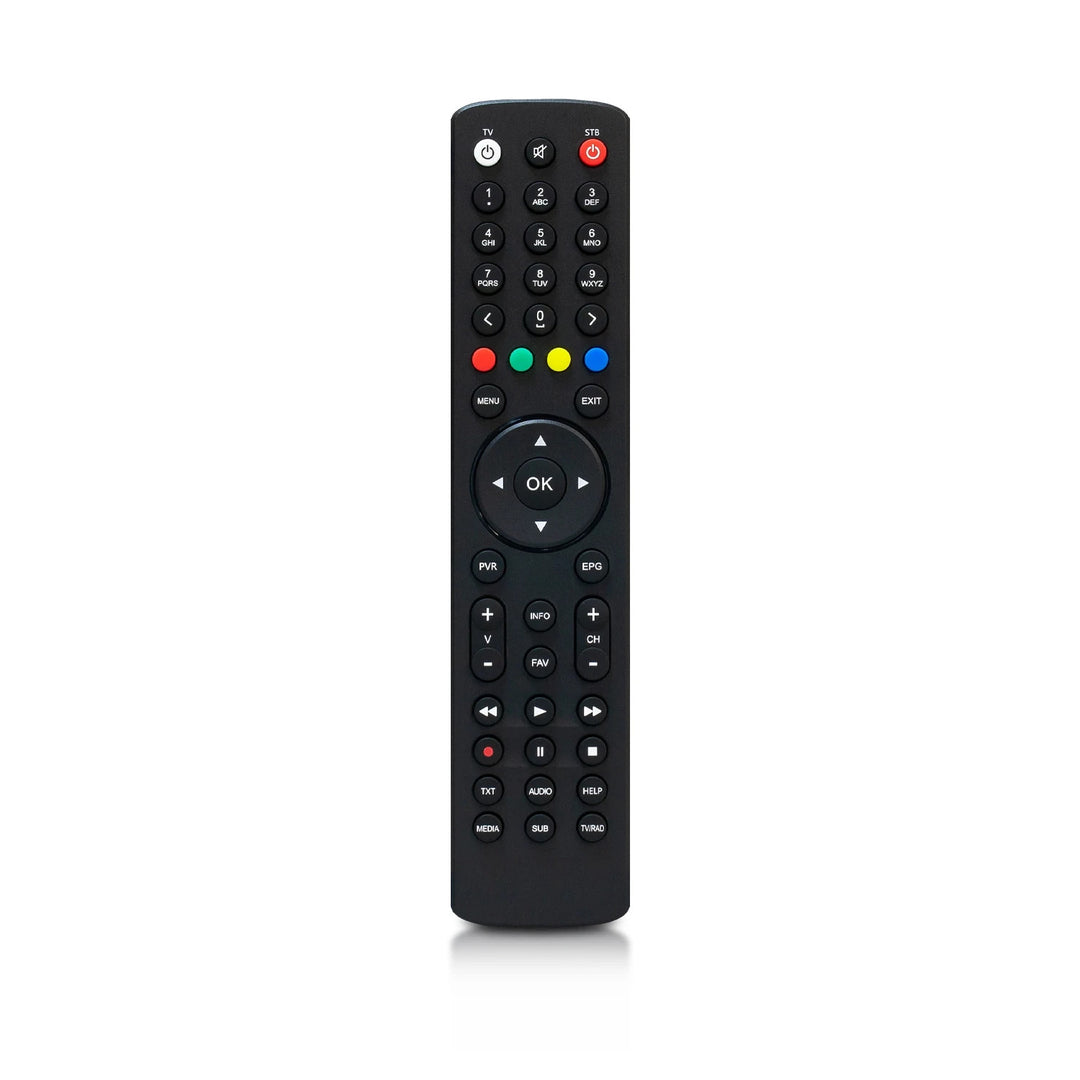

- Remote control
- User manual
- Manufacturer's packaging

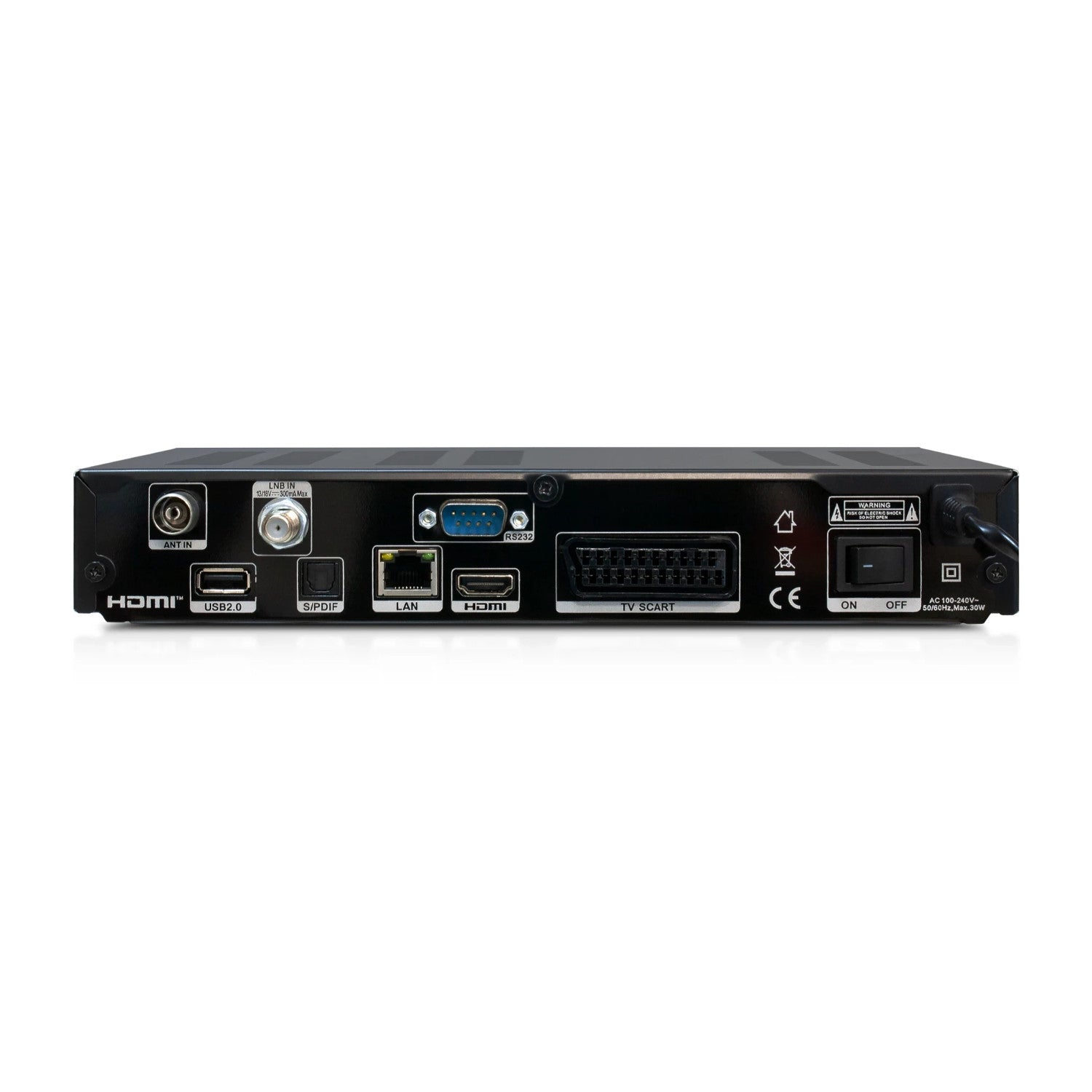

The AB CryptoBox 742HD Combo offers a wide range of connectors and multimedia features. Users have access to, among other things, HDMI, SCART, an S/PDIF optical audio output, an RS-232 port, an RJ-45 LAN port, and two USB 2.0 ports. The receiver also features a universal card reader and a CI slot for conditional access modules; according to distributor descriptions, the tuner’s software is compatible with select CI/CI+ modules from operators such as Canal+ prepaid and Polsat Box; however, compatibility should be verified on a case-by-case basis for each specific module and the current software version. The two USB ports enable the use of PVR and Timeshift functions, i.e., recording programs to an external storage device and pausing and resuming live TV viewing. These features are complemented by a 7-day EPG, support for favorites lists, parental controls, and the ability to play multimedia files.

- Full HD satellite/terrestrial/cable receiver (DVB-S2/T2/C)
- Supports resolutions up to 1080p
- 1x card reader
- 1x CI slot
- 2x USB ports
- Fast and intuitive user interface
- USB recording (PVR) support
- Timeshift function (pause live broadcasts)
- Multimedia playback (video, music, photos)
- Ethernet port for internet connection
- Support for FastScan and automatic channel tuning
- Very simple setup
