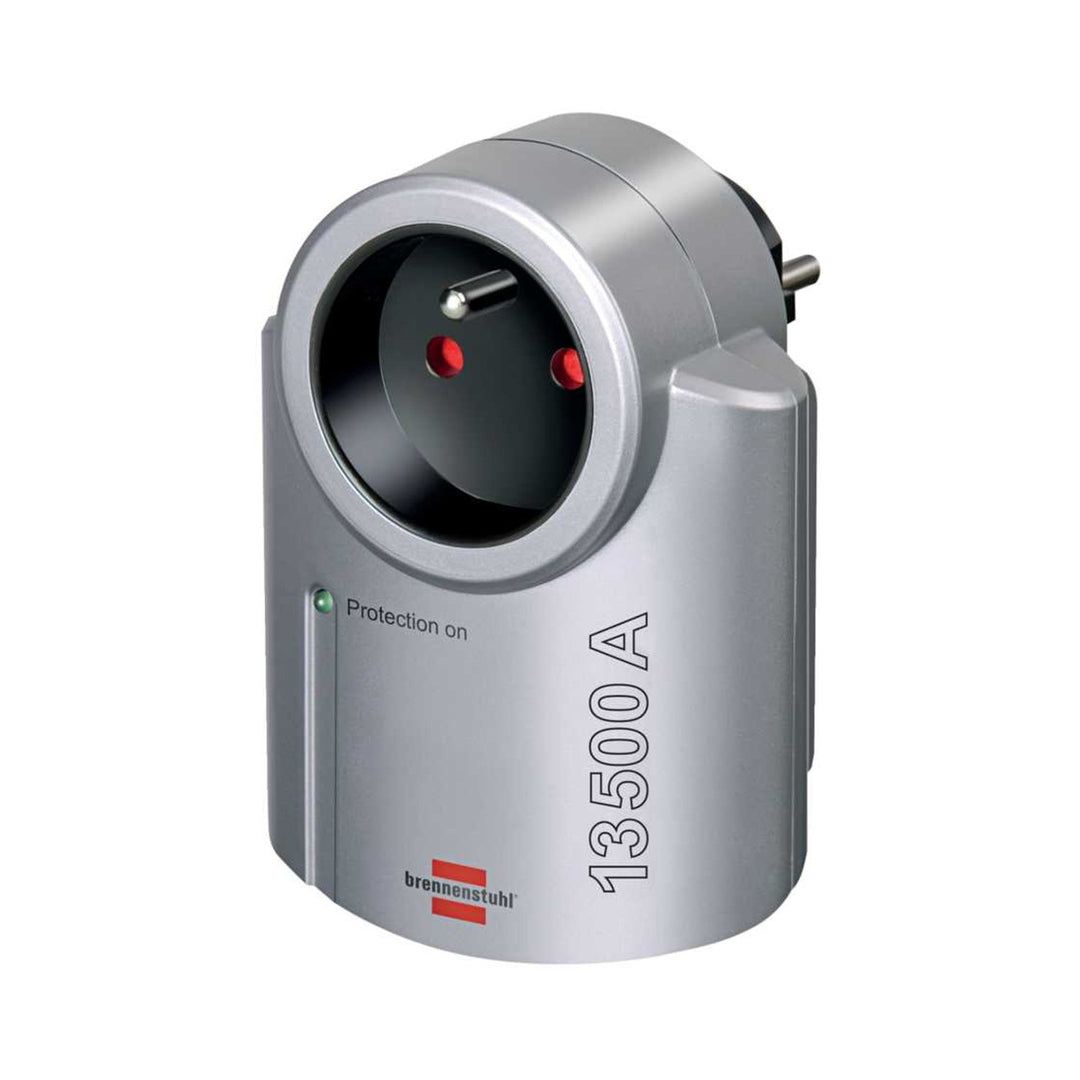

Brennenstuhl Primera-Line Overvoltage adapter 13.500 A 3500 W
SKU: 54454
EAN: 3281855069511
VAT included. Shipping calculated at checkout.
Express 24h shipping
30-day returns
2-year warranty
Out of stock
This product is out of stock. Check similar products in Power Outlets & Sockets.
Secure Payments
Brennenstuhl overvoltage adapter 13.500 A 3500 W
The overvoltage adapter prevents damage to the connected end devices (SPD type 3) due to voltage peaks in the 230 V mains. Voltage peaks may arise as a result of indirect lightning strikes or the activation of inductive loads (eg motors, stoves or lamps).
To ensure proper operation, the device must be connected to a socket with a properly installed grounding conductor.
If the green signal lamp is lit on the surge adapter, it means that the device is active. If the green indicator light on the surge adapter stops shining, it is not possible to continue to provide protection and replace the adapter.
The overvoltage adapter can only be used as overvoltage protection for end devices (SPD type 3) supplied with 230 V (connection to a socket with properly installed earthing conductor). Any use other than that mentioned is not allowed.
The overvoltage adapter can not be covered during use. The product is intended for private use only in dry rooms.
Specification:
- Name: Model SP-230V
- Supply voltage: 230 V ~
- Max. Load: 16 A / max. 3500 W
- SPD: type 3
- Maximum continuous voltage UC: 250 V ~
- UC (LN) combination shock: 6 kV
- UC Combined Impact (L / N-PE): 6 kV
- Up (LN) protection level: 1.8 kV
- Up (L- / N-PE) protection level: 1.8 kV
- Height: 10.00 cm
- Length: 7.00 cm
- Width: 8.00 cm
- Protection against children: yes
- Degree of protection: IP20
- Area of application: inside
Set contains:
- Brennenstuhl Primera-Line overvoltage adapter 13.500 A
- Manufacturer's packaging
- A proof of purchase
Product features:
- Primera-Line overvoltage adapter 13.500 A
- 1 plugs 2P + T 16 A / 230 V
- 1 socket 2P + T 16 A / 230 V
- Max. load 3500 W
- Protects all wires: phase and zero
- Indicator lamp indicating correct operation
- Protects electronic devices against overvoltages and fault currents up to 13.500 A
- Blister packaging
- Brennenstuhl's insurance cover for material damage, under compulsory product liability, in the amount of up to EUR 5 million (details in the instruction manual).
- Prevents damage to connected devices due to voltage peaks in the 230 V mains
- Max. load 3500 W
- Protects all wires: phase and zero
- Indicator lamp indicating correct operation
- Protects electronic devices against overvoltages and fault currents up to 13.500 A
- Degree of protection: IP20
- Area of application: indoors
