SKU: 55123 | EAN: 5902211110040
Regular price£9.95
/
Tax included.
  • Dispatch within 24 hours
  • 30-day return policy
  • 2-year warranty for all products
  • Free shipping for order over £80

  • In stock, ready to ship
  • Backordered, shipping soon

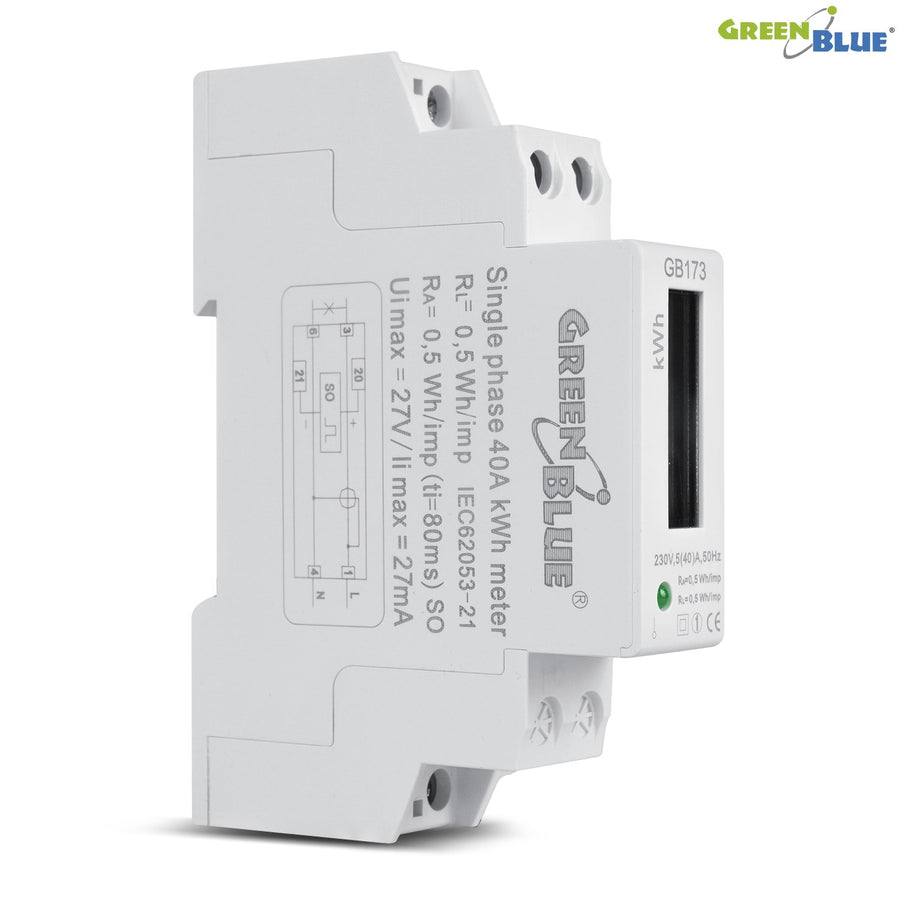

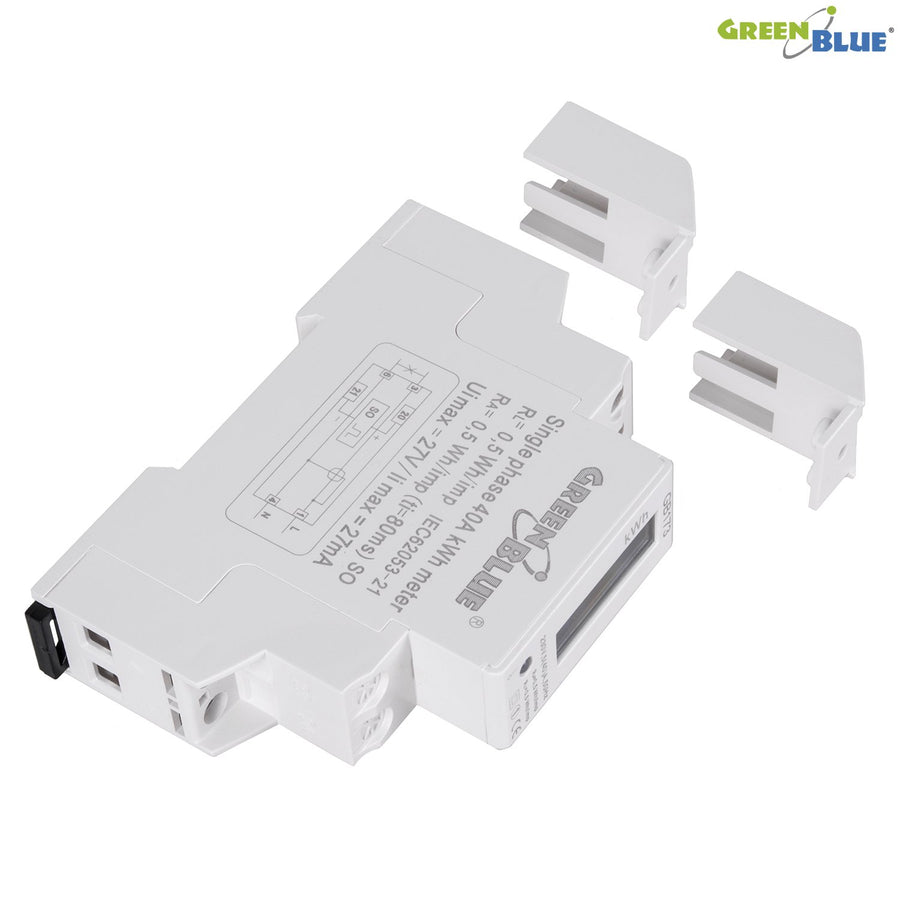

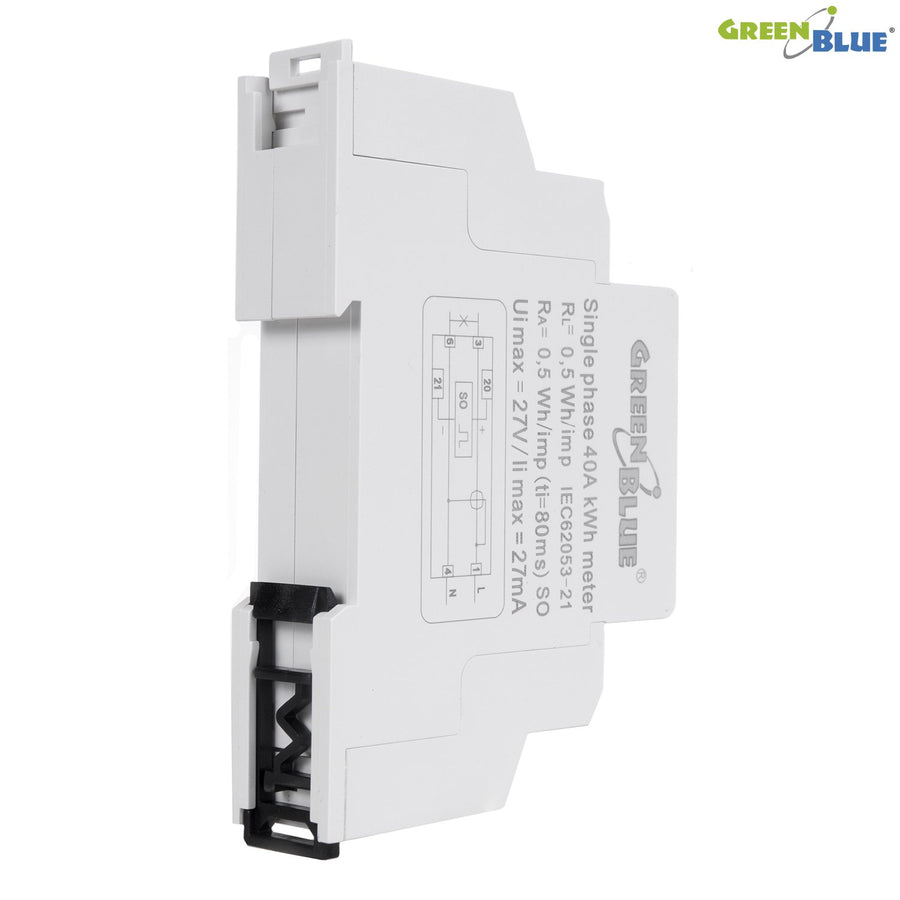

DIN-rail mounted ENERGY CONSUMPTION METER LCD

The GB173 is an electronic wattmeter for measuring in metric units (kWh). Under the influence of the flowing current and the applied voltage, a special electronic circuit generates pulses proportional to the consumed electricity. The energy consumption is indicated by a flashing LED. The number of pulses is converted into consumed energy and its value is displayed on the LCD display.
NOTE: It is necessary to disconnect the power supply before installation. Installation should be carried out by a qualified electrician!

Electronic wattmeter - green blue GB173

Specification:
- Rated voltage: 230VAC, 110VAC
- Operating voltage: 100-300 VAC
- Base current in amperes (lb): 6+1 digits on LCD display
- LED indicator:> Output power test (red LED) 2000 pulses per kWh> Output pulse rate (pins 20 and 21) 2000 pulses per kWh
- Power indicator (green LED) is connected and functioning properly - Power indicator (red LED): flashes when load is operating

Set contains:
- Energy Meter DIN rail, LCD display GreenBlue GB173
- Original packaging
- User manual

- Ideal for both private and commercial/industrial metering in offices, rented flats, apartments, garages, gardens and many other areas.

- Electronic wattmeter for indication in metric units (kWh)
- Power consumption in phase is indicated by a flashing LED. The number of pulses is converted into consumed energy and its value is displayed on the LCD display (6+1)
- Special electronic circuit under the influence of the flowing current and applied voltage generates pulses proportional to the consumed electrical energy

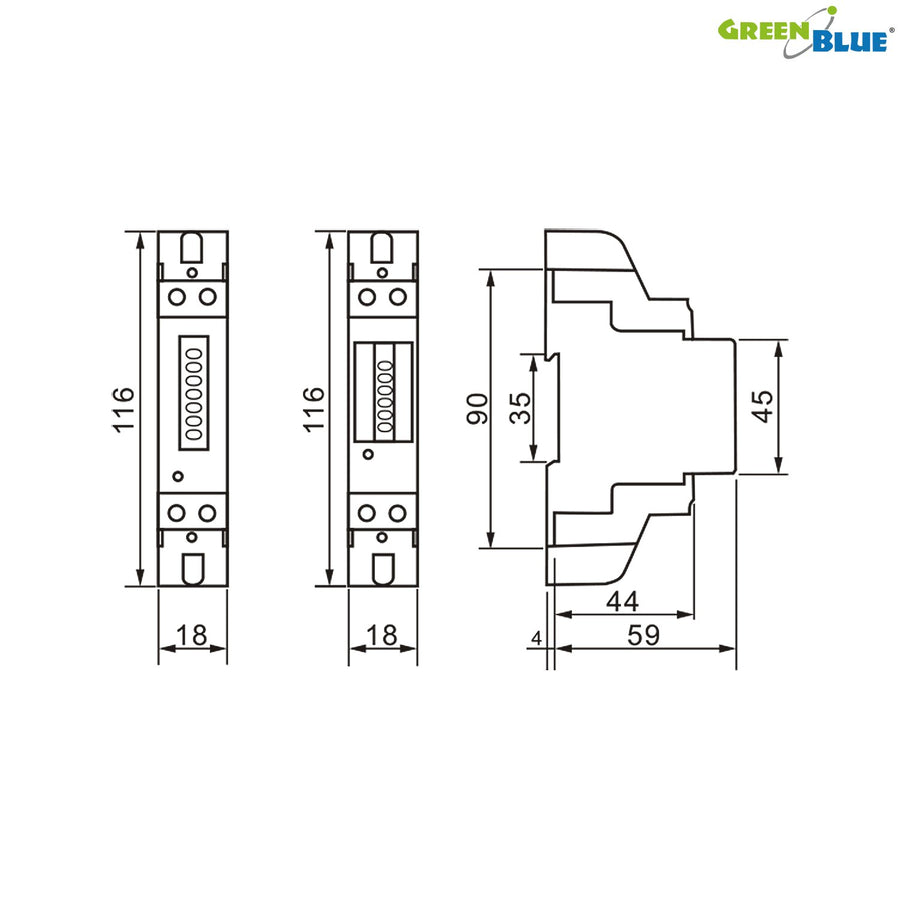

- Housing with width of one module, DIN rail mounting TH-35 mm
- Protection class: IP51
- Standard: IEC 62053-21
