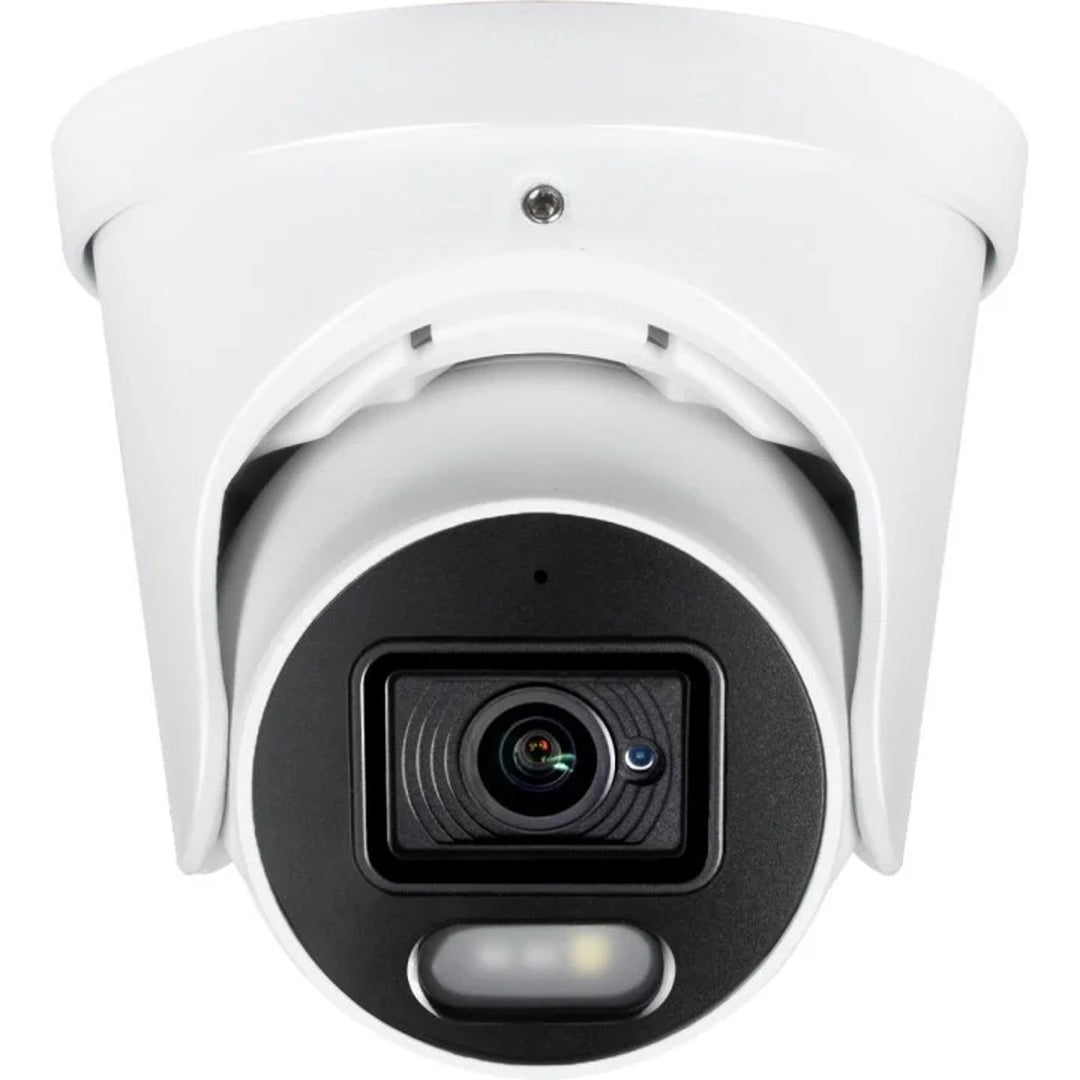

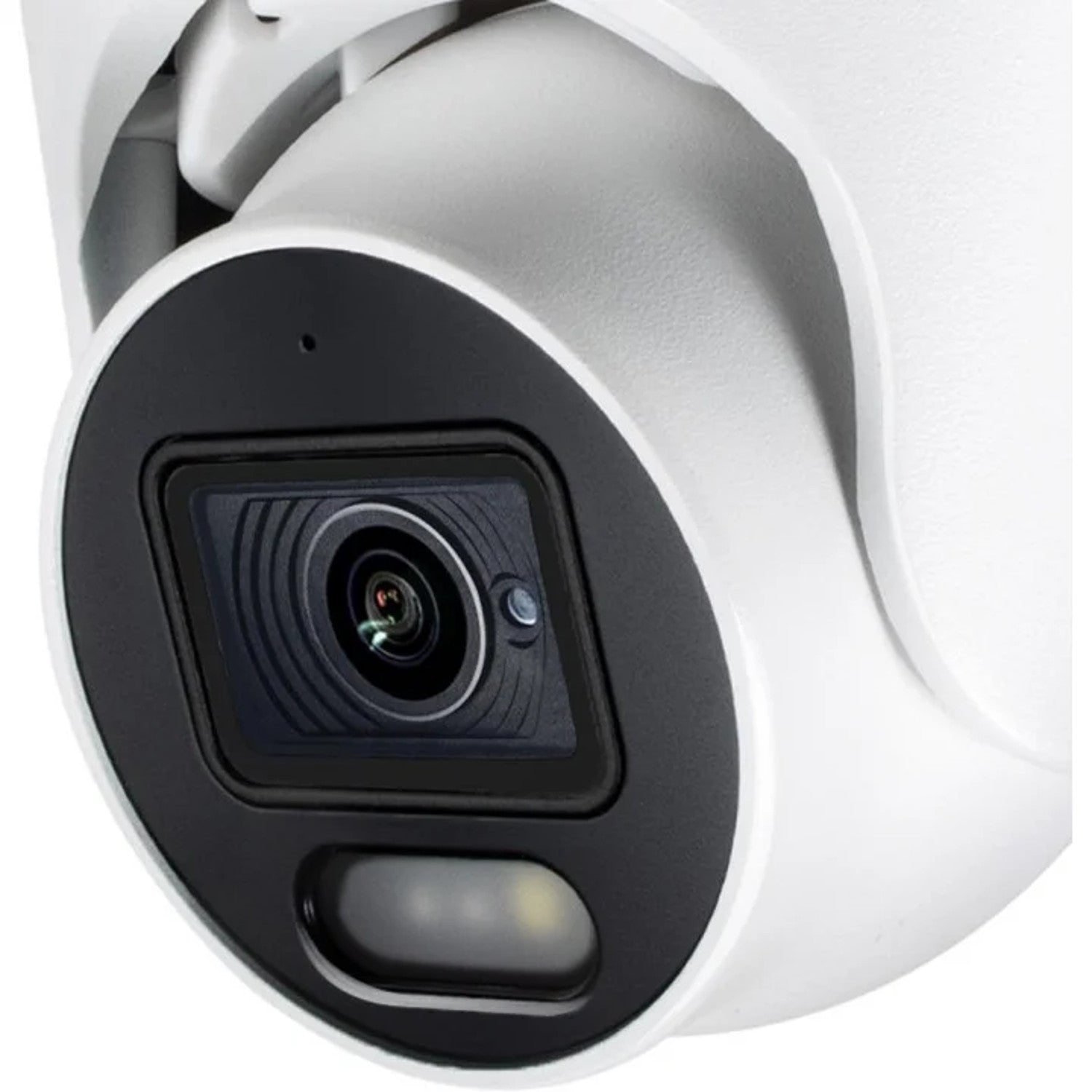

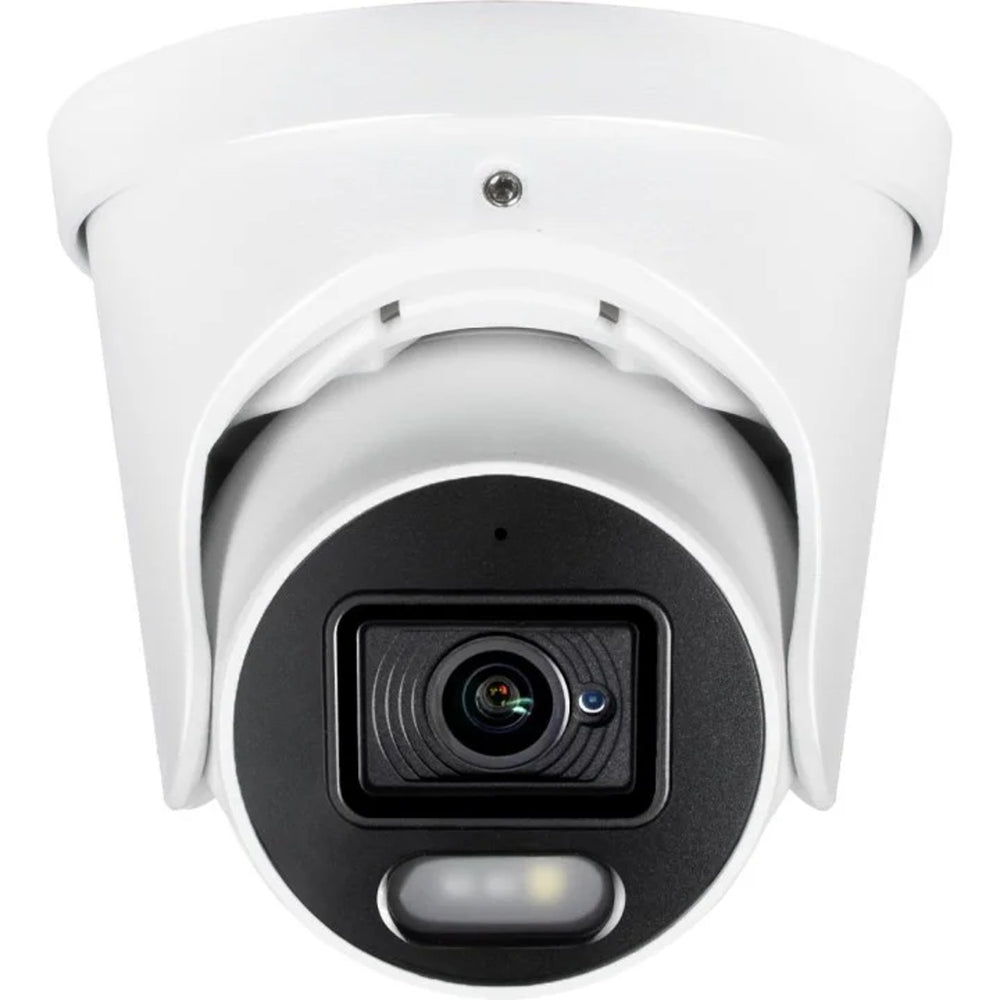

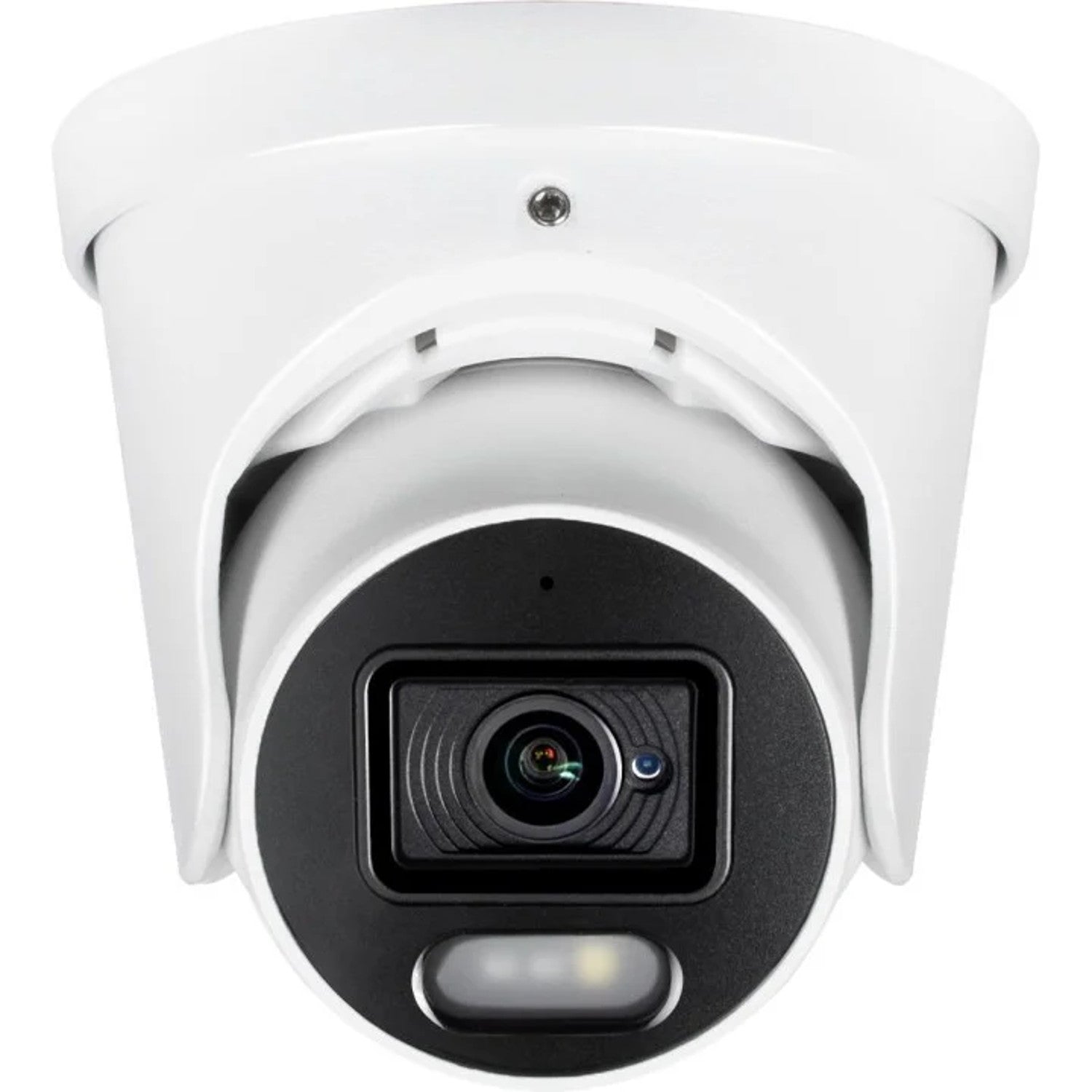

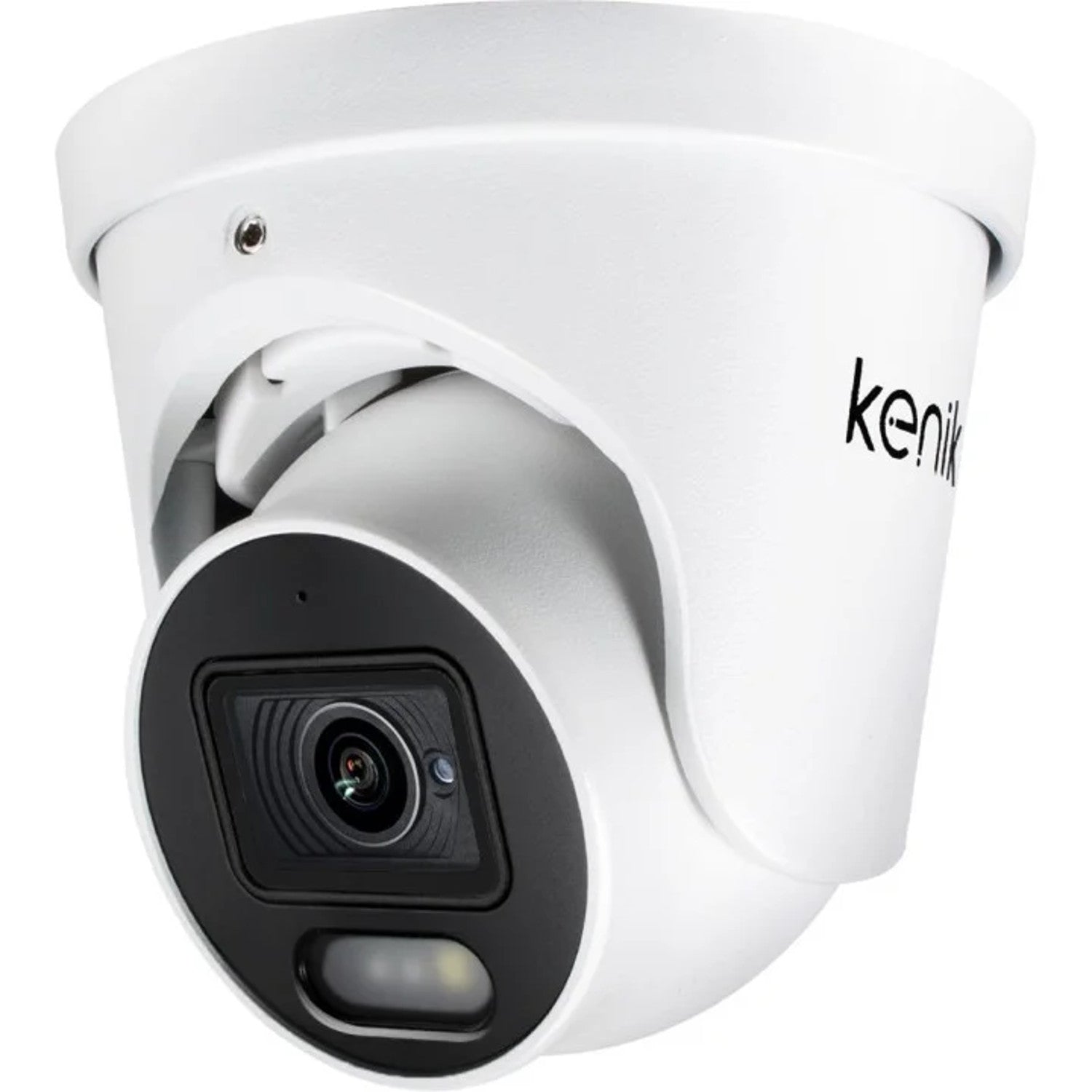

Kenik KG-530DPA-L 5MP IP67 IP Camera with Microphone
The Kenik KG-530DPA-L 5MPx IP camera is ideal for surveillance systems that require high-quality images at an affordable price. Its 5MPx sensor and H.265+ compression ensure detailed image capture both day and night. The modern Smart IR infrared illuminator with SMD LEDs ensures that the area monitored by the Kenik KG-530DPA-L 5MPx camera is fully illuminated—even in complete darkness outdoors. Furthermore, users of the Kenik KG-530DPA-L 5MPx IP camera can utilize intelligent image analysis to enhance the security of the protected site.
Many other features, such as DEFOG, ROI, and DWDR, ensure that the image is as clear and distortion-free as possible, allowing for the identification of people or objects. Additionally, the Kenik KG-530DPA-L 5MPx IP camera can operate in the cloud, and connecting to it is extremely simple. Users can check what is happening at the location monitored by their camera from anywhere in the world using only their smartphone. The 2.8mm focal length lens used in the Kenik KG-530DPA-L 5MPx IP camera design provides a wide viewing angle—and an accurate, always clear image!
Intelligent Video Analysis (IVS) is an advanced technology used in video surveillance systems that enables the automatic analysis and recognition of images and events based on video streams.
A major advantage of IVS systems is their ability to detect various events or objects in real time, which increases the effectiveness of surveillance systems and the security level of monitored facilities.
The KENIK KG-530DPA-L IP camera, which utilizes intelligent video image analysis, can therefore be configured to detect specific situations or objects, such as the detection of a person.
Specification:
- Brand: KENIK
- Model number: 40298
- Sensor type: CMOS
- Sensor size: 1/2.7''
- Model: KG-530DPA-L
- Night vision range: 30 m
- Camera type: outdoor/indoor
- Resolution: 2592x1944
- Lens focal length: 2.8 mm
- Lens mount: M12
- Wide dynamic range: DWDR
- Noise reduction: 3D DNR
- Mechanical IR filter: yes
- Built-in IR illuminator: yes
- Multi-streaming (number of streams): 2
- White balance: yes
- Privacy zones: yes
- Motion detection: yes
- ONVIF: yes
- Supported standards: ONVIF (Profiles S, G, T), CGI
- Max. number of users: 32
- Web interface language: Polish
- Network interface: RJ45 (10/100 Mbps)
- Protection rating: IP67
- Power consumption: 7 W
- Operating temperature: -20°C ~ +60°C
- Sensor sensitivity: 0.01 lux (color), 0 lux (IR on)
- Shutter speed: Auto/Manual, 1/3~1/10000s
- Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, IPv6
- Video compression: H.264/H.264+/H.265/H.265+
- H.264 codec profile: Basic/Main/High
- H.265 codec profile: Main
- Video bitrate: 11 Kbps~8 Mbps
- Audio bitrate: 64 Kbps
- Image settings: Brightness/Contrast/Saturation/Hue/Sharpness
- Audio: Yes
- Audio inputs/outputs: 0/0
- Built-in microphone: Yes
- Housing type: Dome
- Image quality: 5 Mpx
- IVS (Intelligent Video Surveillance): Yes
- Viewing angle: 105°
- Series: Lite
- Lens: fixed
- Housing material: metal
- Main stream transmission rate: 20 fps @ 5MPX
- Audio compression: G.711A/G.711U
- Alarm inputs/outputs: 0/0
- Weight: 0.5 kg
- Illuminator type: infrared (IR) LEDs
- Illuminator range: 30 ~ 40 m
- Housing color: white
- Width: 11 cm
- Height: 10.5 cm
- Depth: 11 cm
- BLC: yes
- HLC: yes
- ROI: yes
- Security features: user authentication, IP address filtering, video masking
- Mobile viewing: iPhone, iPad, Android
- Web: IE, Chrome, Firefox
- Power supply voltage: DC12V ± 10%
- POE power supply: PoE (802.3af)
Set contains:
- Kenik KG-530DPA-L-G IP Camera
- User Manual
- Manufacturer's packaging
WORKING WITH KENIK CLOUD
Every Kenik IP camera can be connected via the cloud. Thanks to this solution, any user can easily connect to the camera and view the live feed without complicated setup. No port forwarding or public IP address is required; all you need is an internet connection (including LTE) and an account on KENIKP2P (www.kenikp2p.com). The service is free.
KENIK MOBILE PREVIEW
With the free Kenik Mobile app, you can remotely view the camera feed on your smartphone. Simply download it from the app store. It supports Android and iOS. This allows you to monitor what is happening at the monitored location from anywhere in the world. When connected via the cloud, simply enter the camera’s ID number to enjoy remote access to the device.
VMS PRO SOFTWARE
VMS Pro is software that allows you to view footage and manage the DVR on a computer. It enables you to connect over a dozen DVRs located in different locations and view footage from up to 128 cameras. Additionally, creating an e-map makes viewing easier and allows you to divide the system into zones. Support for up to 4 monitors simultaneously will certainly be helpful in this regard.
- Can be successfully used for effective surveillance of residential homes, offices or businesses, stores and retail outlets, public spaces, and industrial and commercial areas
- Resolution: 5MP (2592x1944) at 20 fps
- H.265+/H.264+ compression
- DWDR, 3DNR, AWB, AGC, BLC
- Lens: 2.8mm
- Built-in microphone
- SMART IR illuminator up to 30m
- LED flash
- IVS intelligent image analysis (human detection)
- Defog and ROI functions
- 2 streams
- 12V DC power supply, PoE (802.3af)
- IP66-rated housing
- Supports ONVIF 2.6 standard
- Housing color - white
- Mobile viewing on smartphone (Android, iPhone)
- Free software in Polish for recording on a computer
