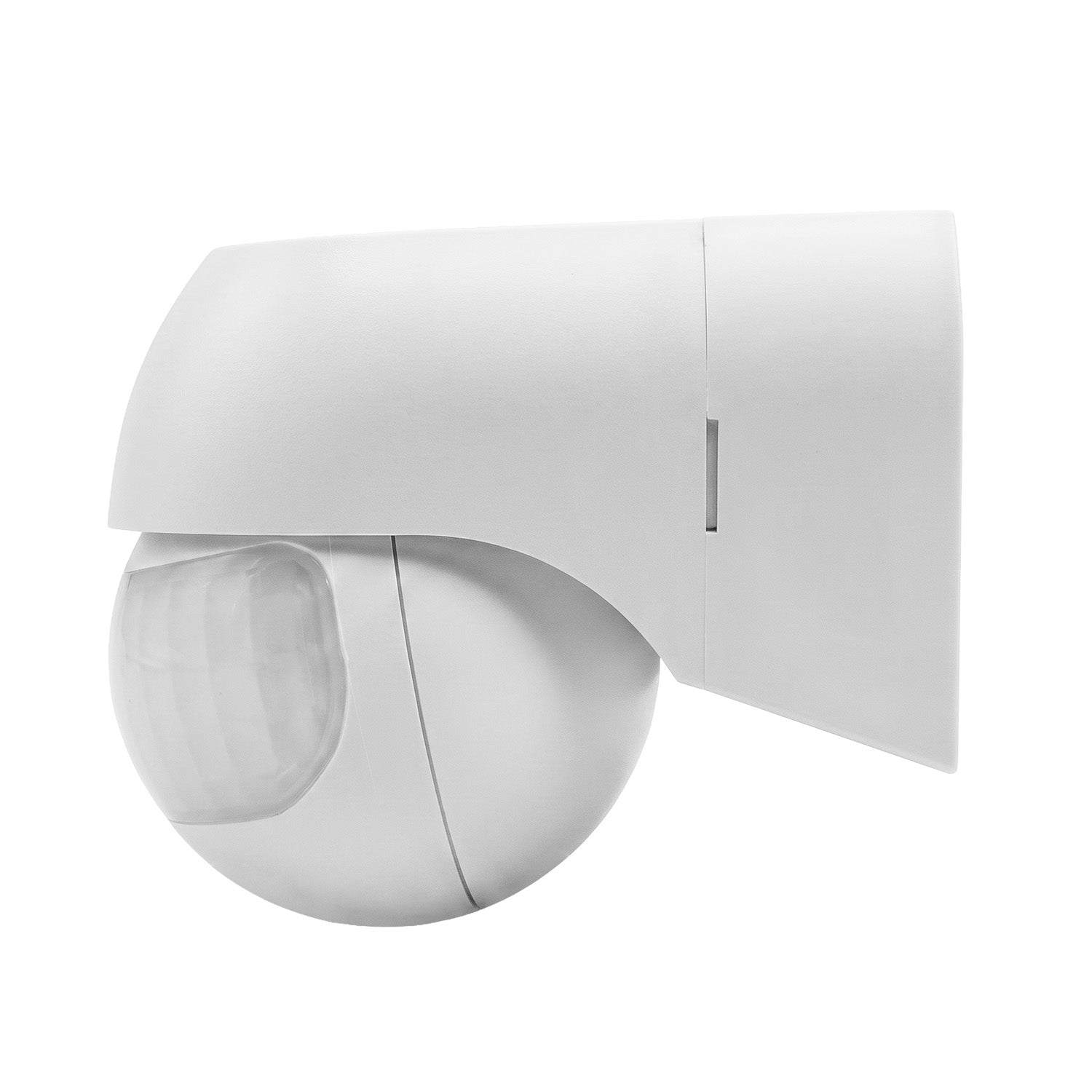

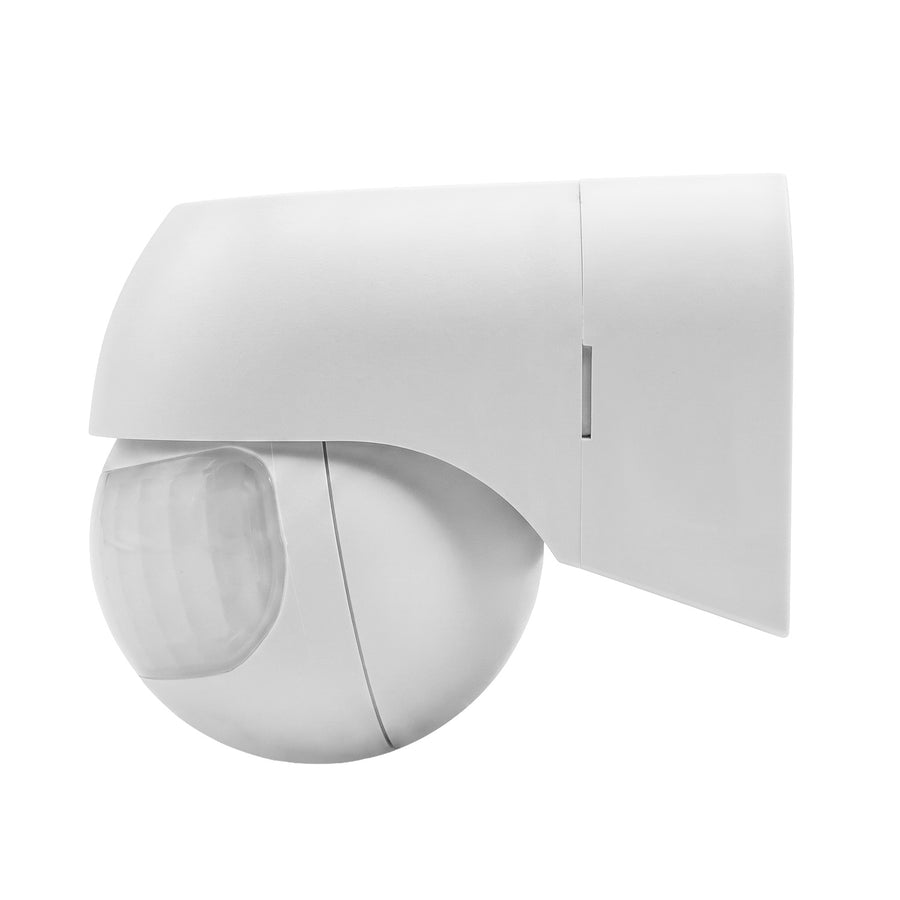

Maclean 12-24V PIR Motion Sensor, Infrared, IP44, White, 12m Range, Max. Load 60/120W, MCE623 W

12-24V White PIR Motion Sensor, Up to 12 m, Adjustable

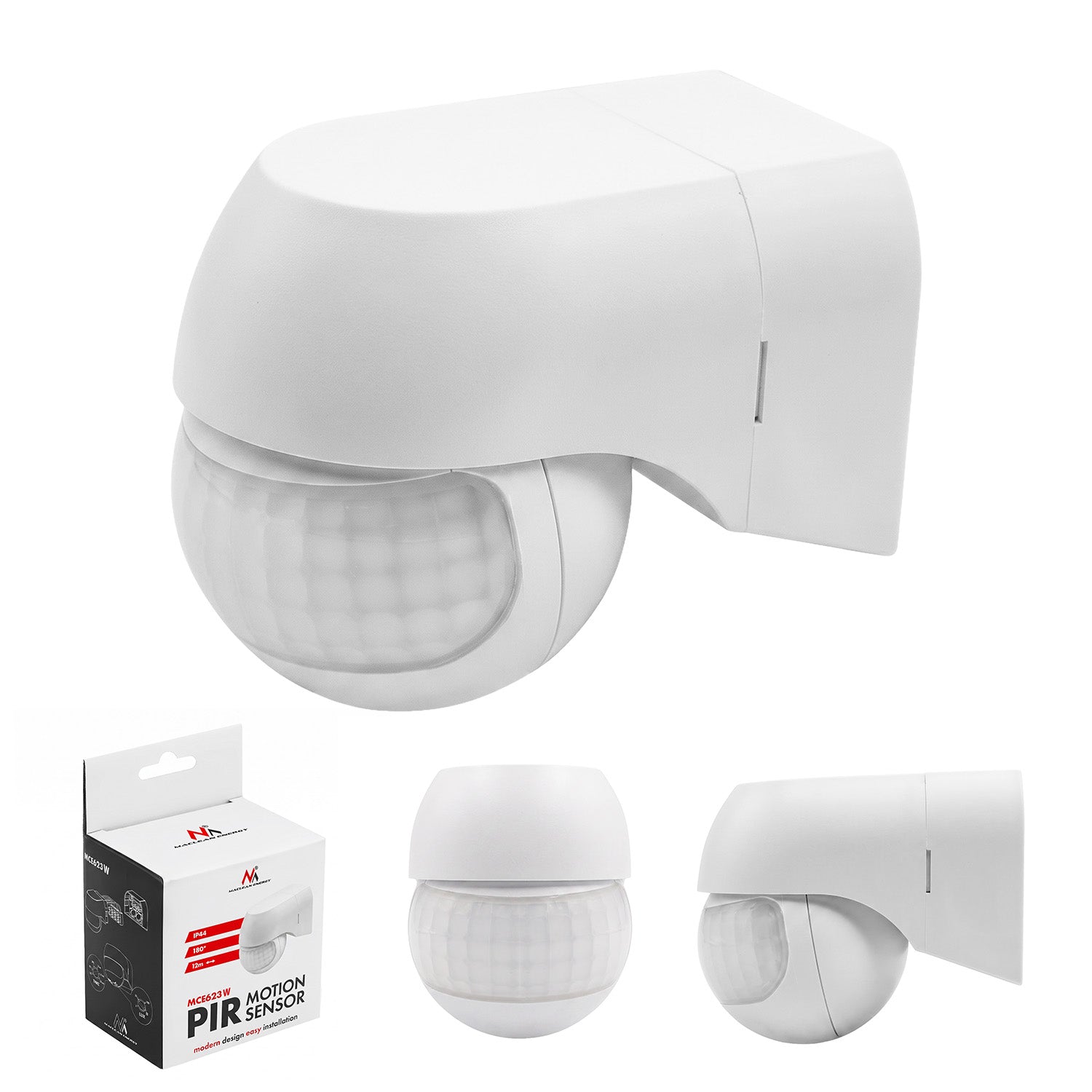

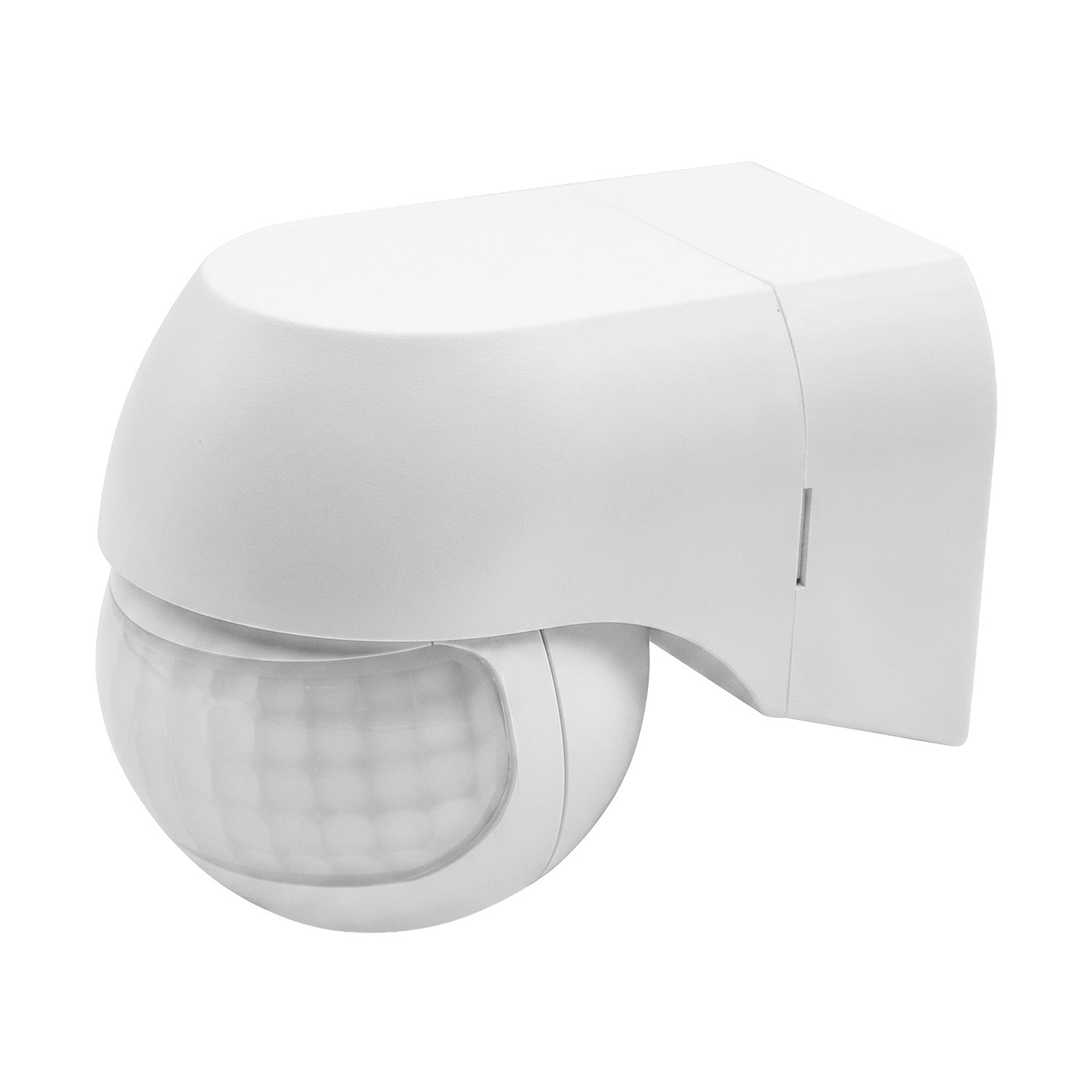

180° PIR MOTION SENSOR – AUTOMATIC LIGHTING CONTROL 12–24 V DC
The Maclean MCE623 PIR motion sensor is a practical solution for automatically controlling low-voltage lighting. The device detects motion within a range of up to 12 meters and at a 180° angle, allowing it to effectively monitor entrances, hallways, garages, carports, covered walkways, and other areas requiring automatic lighting. Using this sensor enhances user comfort, improves safety, and helps reduce energy consumption.
IP44 PROTECTION RATING – FOR INDOOR AND OUTDOOR USE
The IP44-rated housing protects the sensor against water splashes and the ingress of foreign objects larger than 1 mm in diameter. As a result, the MCE623 can be used both indoors and in sheltered outdoor areas, such as covered patios, carports, garages, or entryways. The compact and aesthetically pleasing housing blends well with a variety of settings.

ADJUSTABLE SETTINGS – OPERATION TAILORED TO YOUR NEEDS

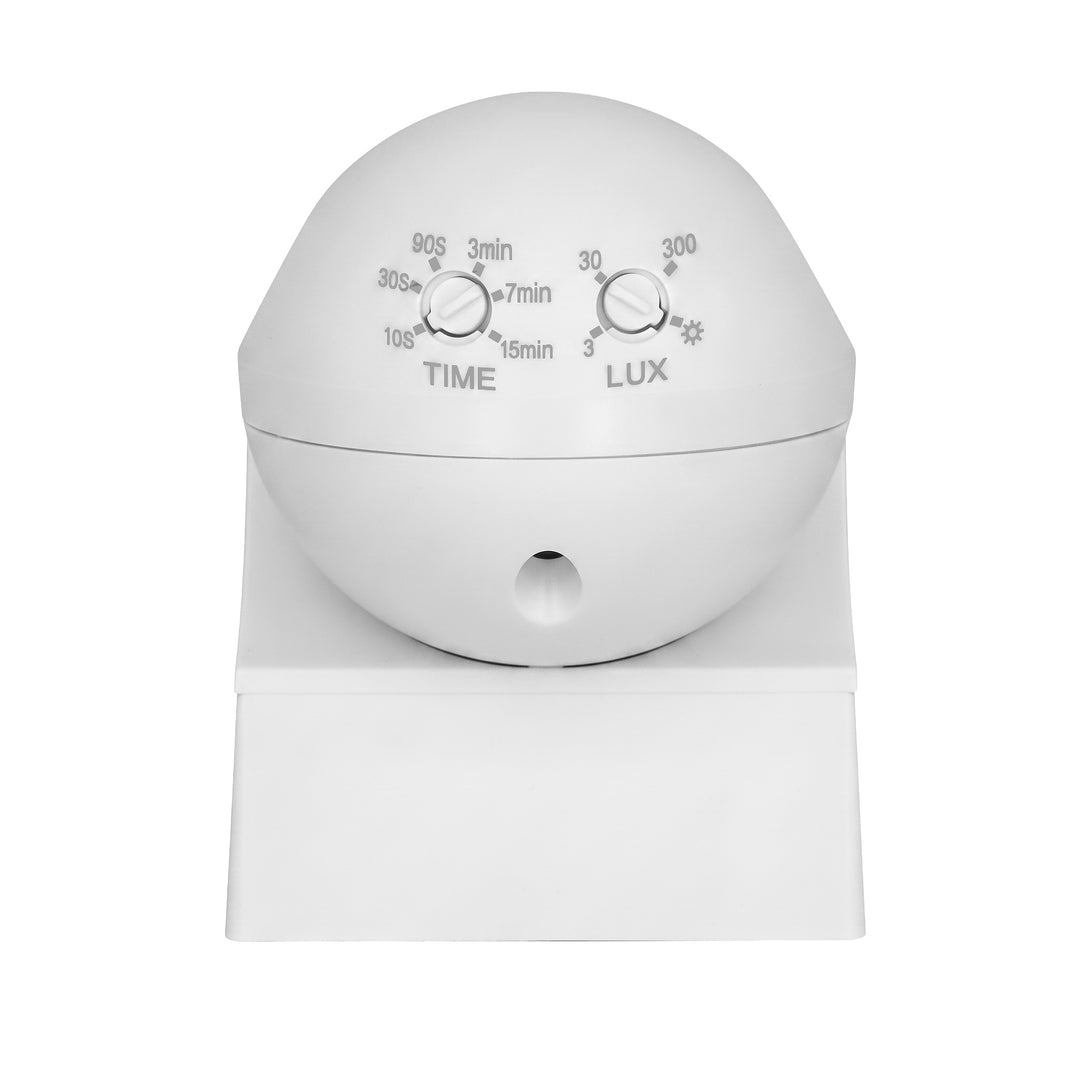

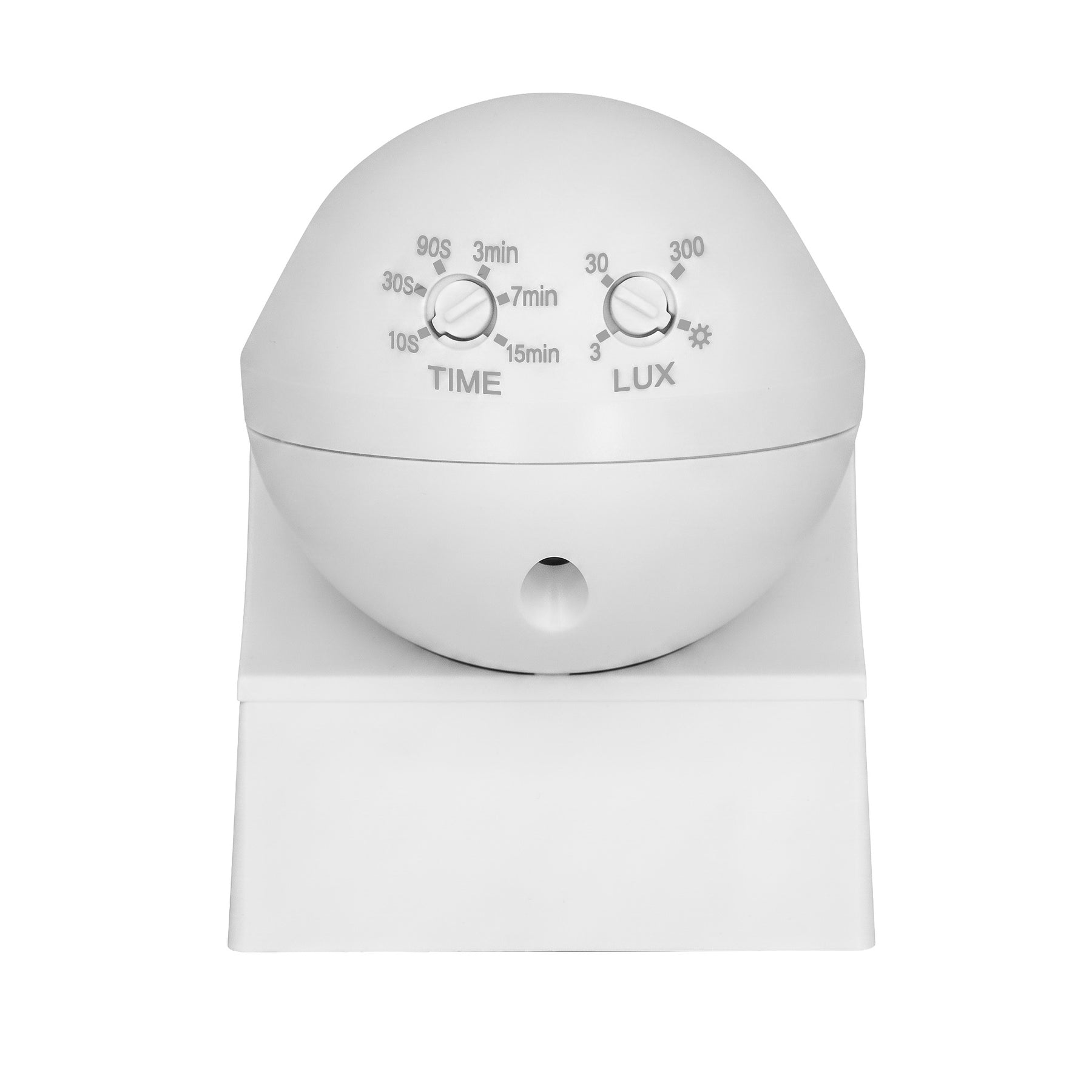

The MCE623 sensor features adjustable twilight sensor threshold settings, allowing you to configure it to operate both during the day and only after dark. Adjusting the lighting duration from 10 seconds to 15 minutes allows you to tailor its operation to a specific location and reduce unnecessary energy consumption.
PRECISE DETECTION AREA ADJUSTMENT

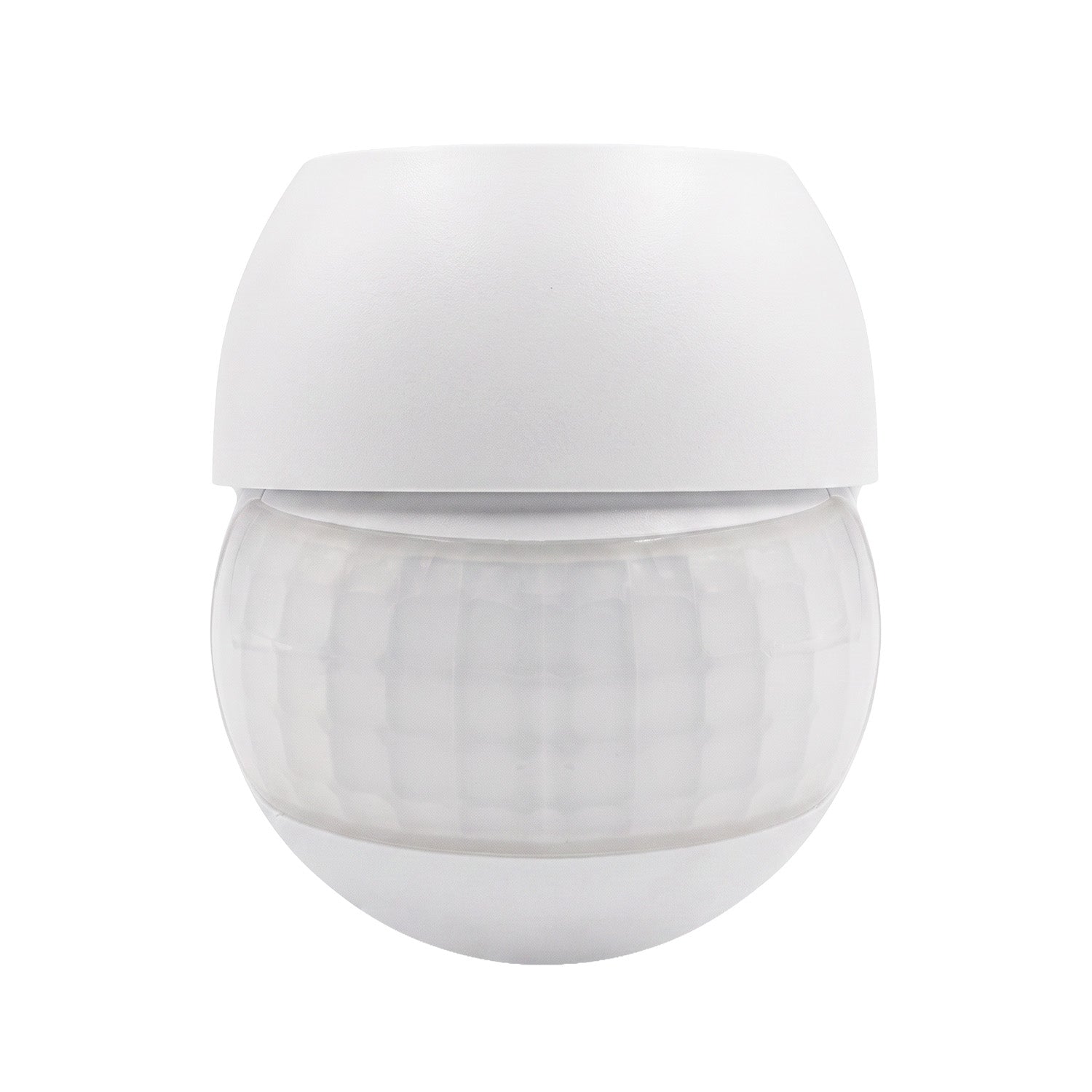

The adjustable sensor head allows you to properly set the detection direction. This allows you to direct the sensor precisely at the selected area, reduce the risk of accidental motion detection, and better adapt the device to the installation location. The sensor is designed for wall mounting at a height of 1.8 to 2.5 m.

Specification:
- Manufacturer: Maclean
- Model: MCE623 W
- Color: white
- Voltage: 12–24 V DC
- Detection technology: PIR
- Max. current: 5 A
- Max. load: 60/120 W
- Detection range: 180°
- Ambient light: <3–2000 LUX (adjustable)
- Detection range: max. 12 m (<24°C)
- Time delay: min. 10 s ± 3 s, max. 15 min ± 2 min
- Operating temperature: -20 ~ +40°C
- Operating humidity: <93% RH
- Power consumption: approx. 0.5 W
- Mounting height: 1.8–2.5 m
- Movement speed of detected object: 0.6–1.5 m/s
- IP rating: IP44

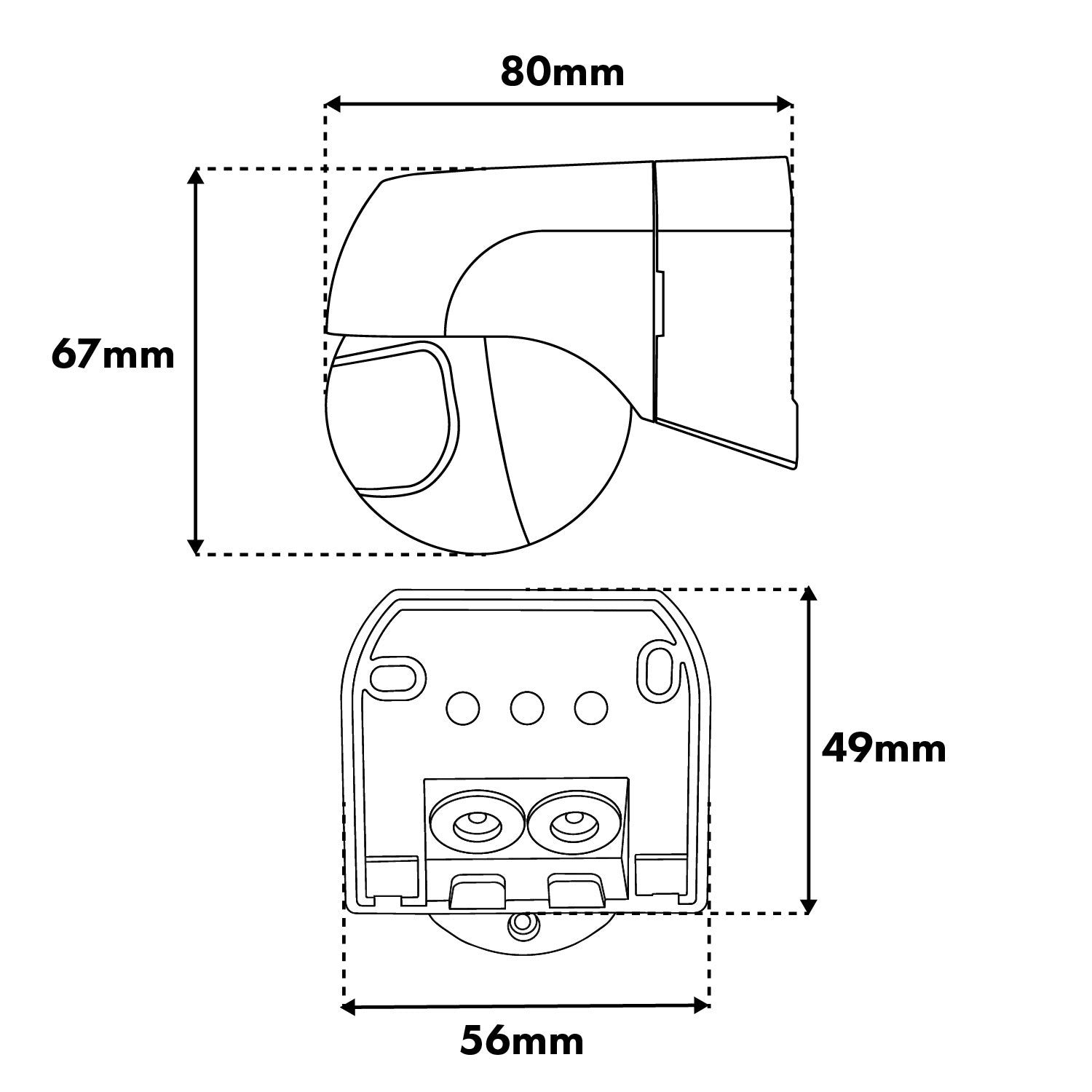

- Length: 80 mm
- Overall height: 67 mm

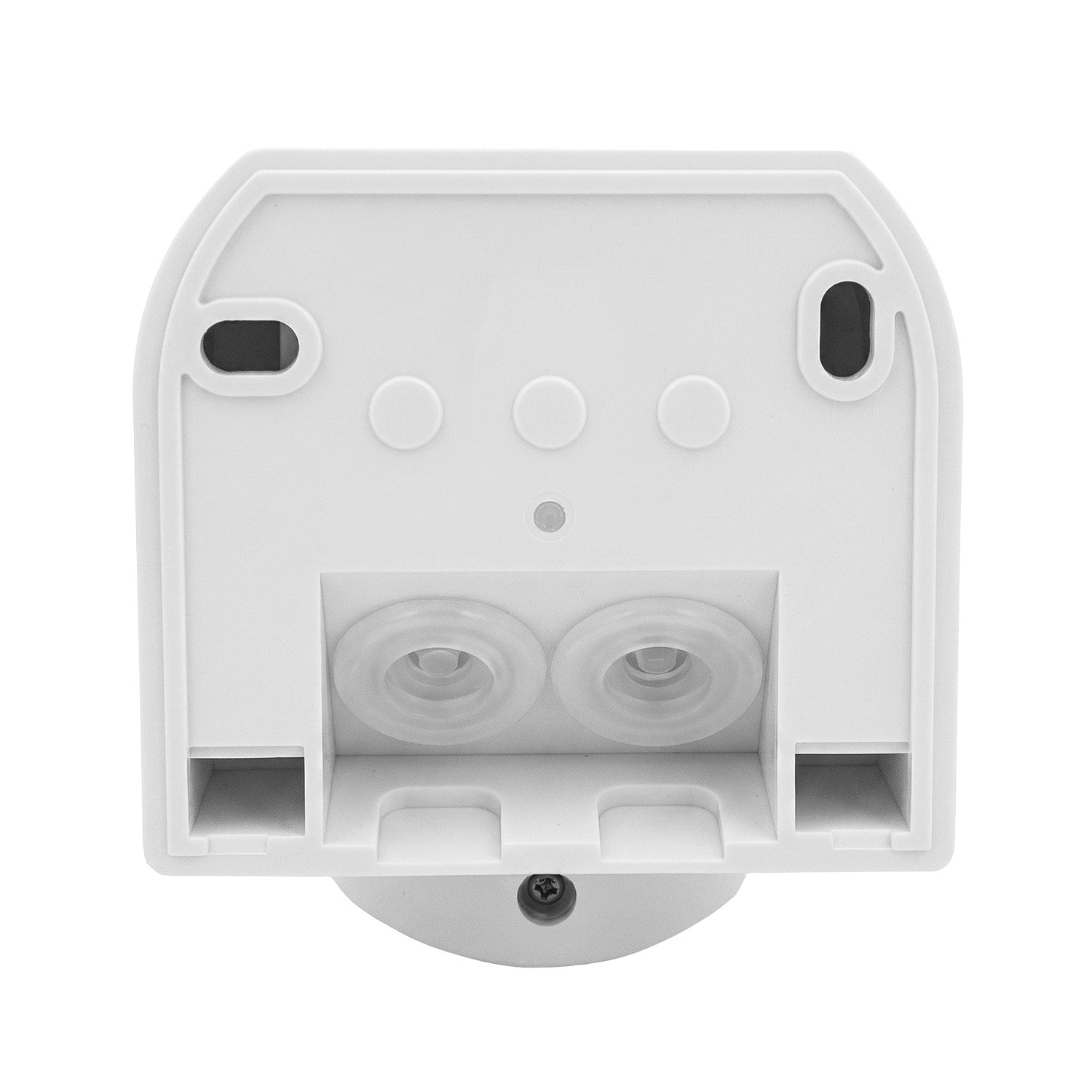

- Mounting dimensions: 56 x 49 mm
- Protection class against electric shock: III

Set contains:
- Maclean MCE623 12-24V PIR Motion Sensor

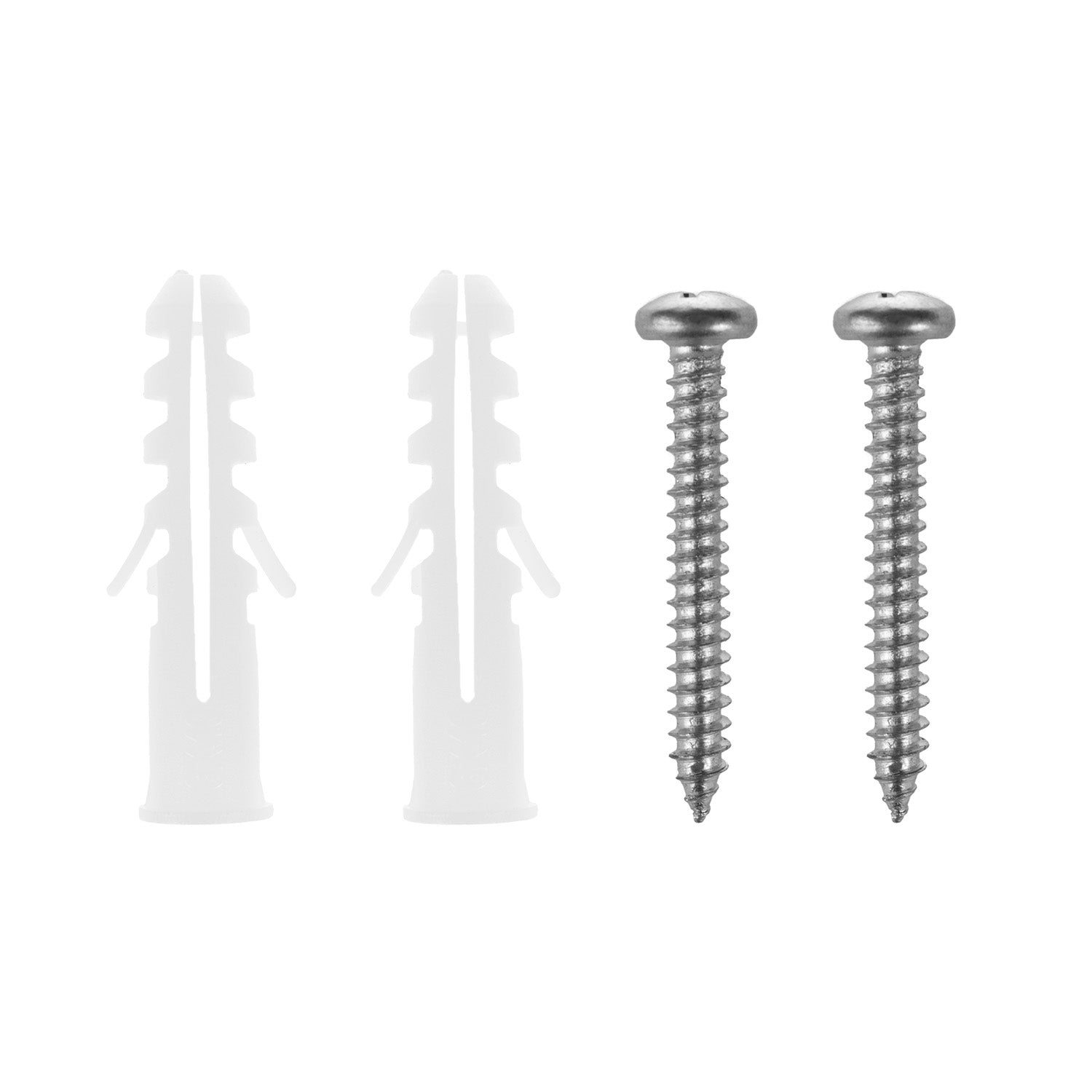

- Mounting accessories
- User manual
- Manufacturer's packaging

FOR LOW-VOLTAGE LIGHTING, 12–24 V DC
The Maclean MCE623 is designed for installations powered by a 12–24 V DC voltage. It works with low-voltage light sources, including LED lighting, making it ideal for use in garages, workshops, building entrances, covered patios, carports, and other 12–24 V DC lighting installations.
By automatically turning on the light when motion is detected, the sensor enhances user convenience and helps reduce energy consumption.

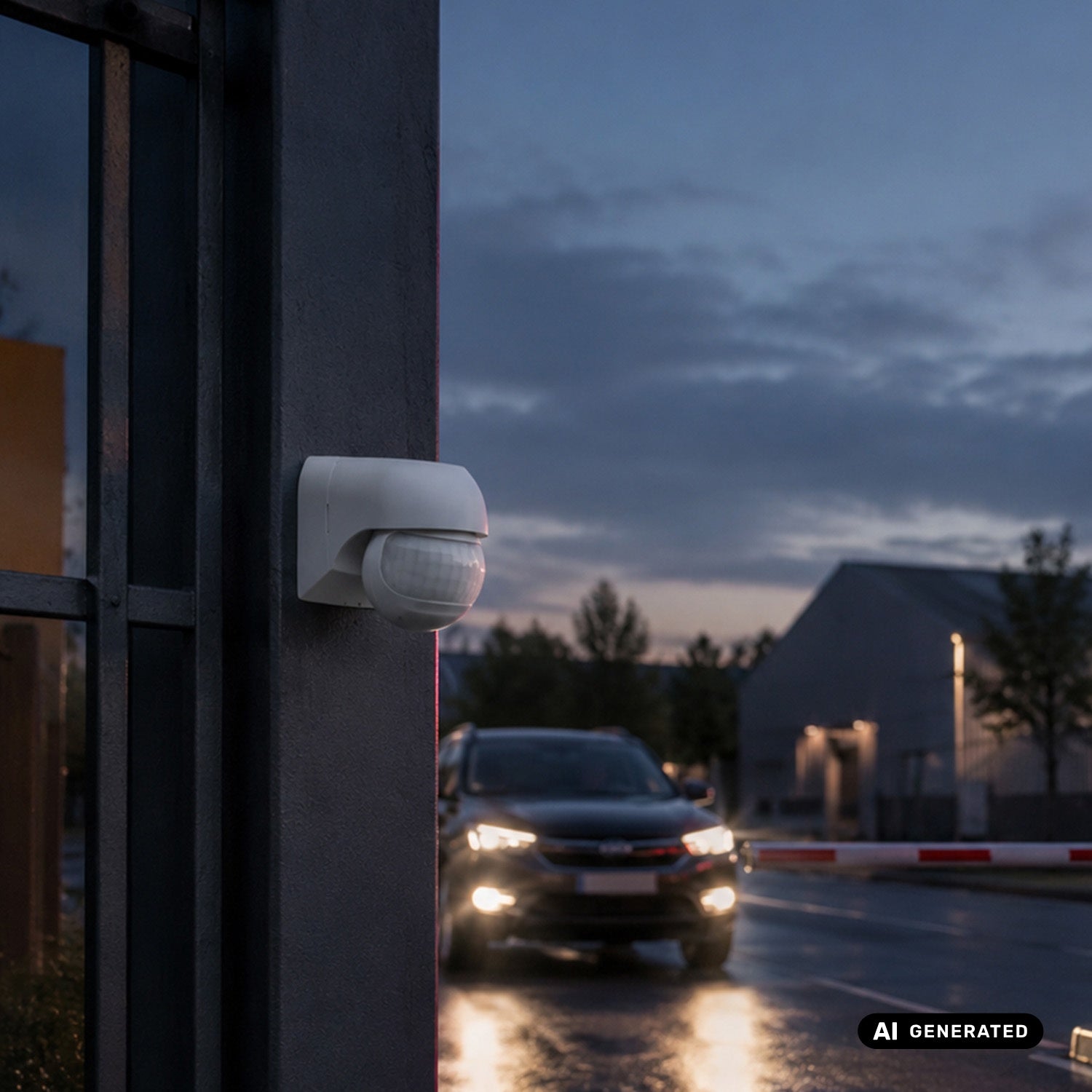

- Wide 180° detection angle – allows for effective monitoring of entrances, walkways, garages, driveways, and other selected areas
- Detection range of up to 12 meters – ensures an adequate coverage area and allows for convenient lighting control
- Low-voltage power supply: 12–24 V DC – the sensor is designed for installations using DC voltage, including LED lighting
- Adjustable illumination time from 10 seconds to 15 minutes – allows you to tailor the lighting duration to your individual needs
- Adjustable twilight sensor threshold—allows you to set the device to operate during the day, at night, or only when light levels are low
- Adjustable sensor head—the ability to set the detection direction facilitates precise adjustment of the detection field
- Compatible with 12–24 V LED lighting—ideal for controlling lamps and other compatible low-voltage loads
- IP44 protection rating – protection against water splashes and foreign objects allows the sensor to be used in sheltered outdoor locations
- Automatic lighting activation – the light turns on when motion is detected, increasing convenience and safety
- Reduced energy consumption – the lighting operates only when needed, helping to reduce unnecessary energy use

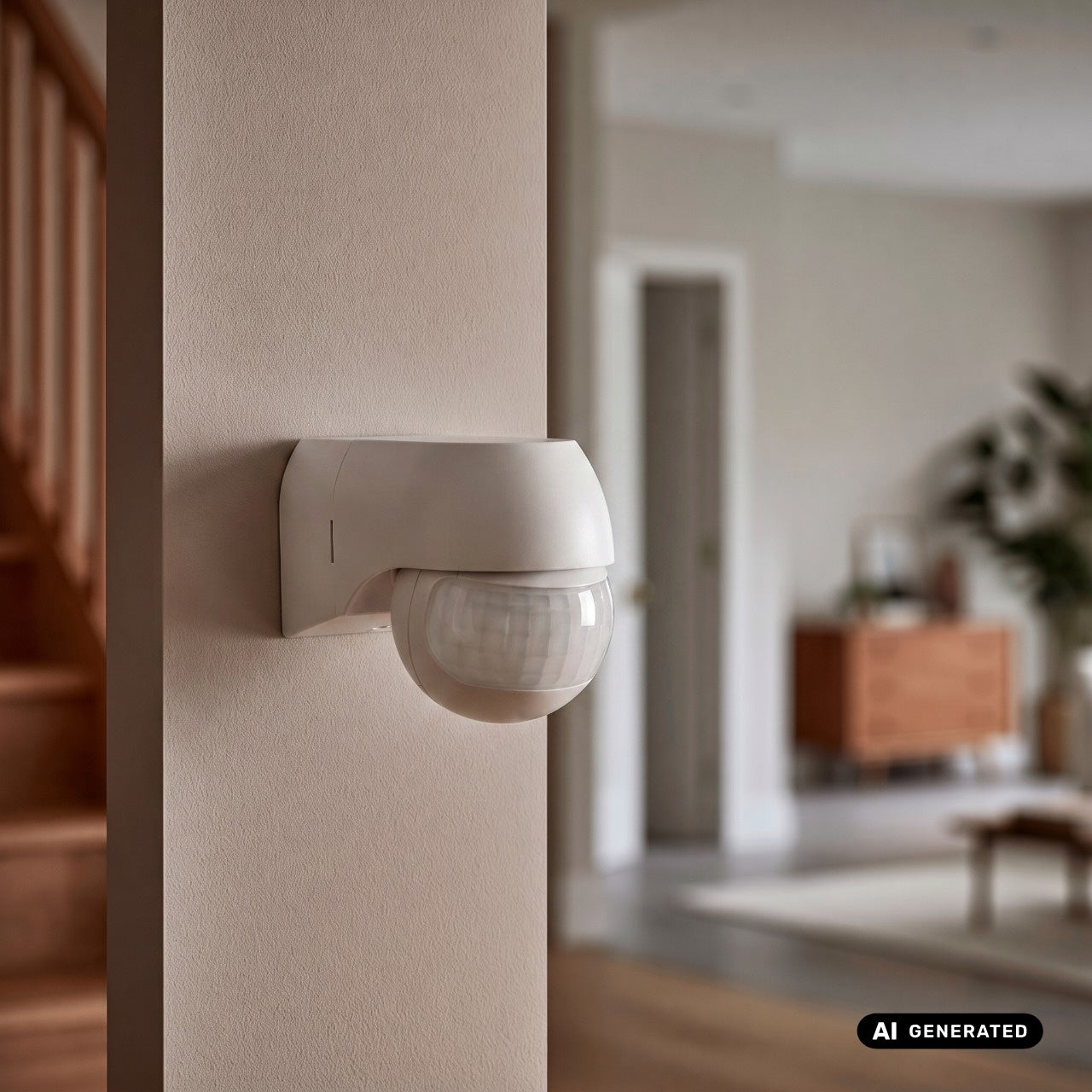

- Wide range of applications – the product can be used at home, in a garage, workshop, stairwell, RV, boat, vehicle, or with low-voltage auxiliary systems
- Color: white
