Maclean Flush-Mount Touch Switch, <40 mm, 110–240 V AC, max. load 600 W for LEDs, MCE824

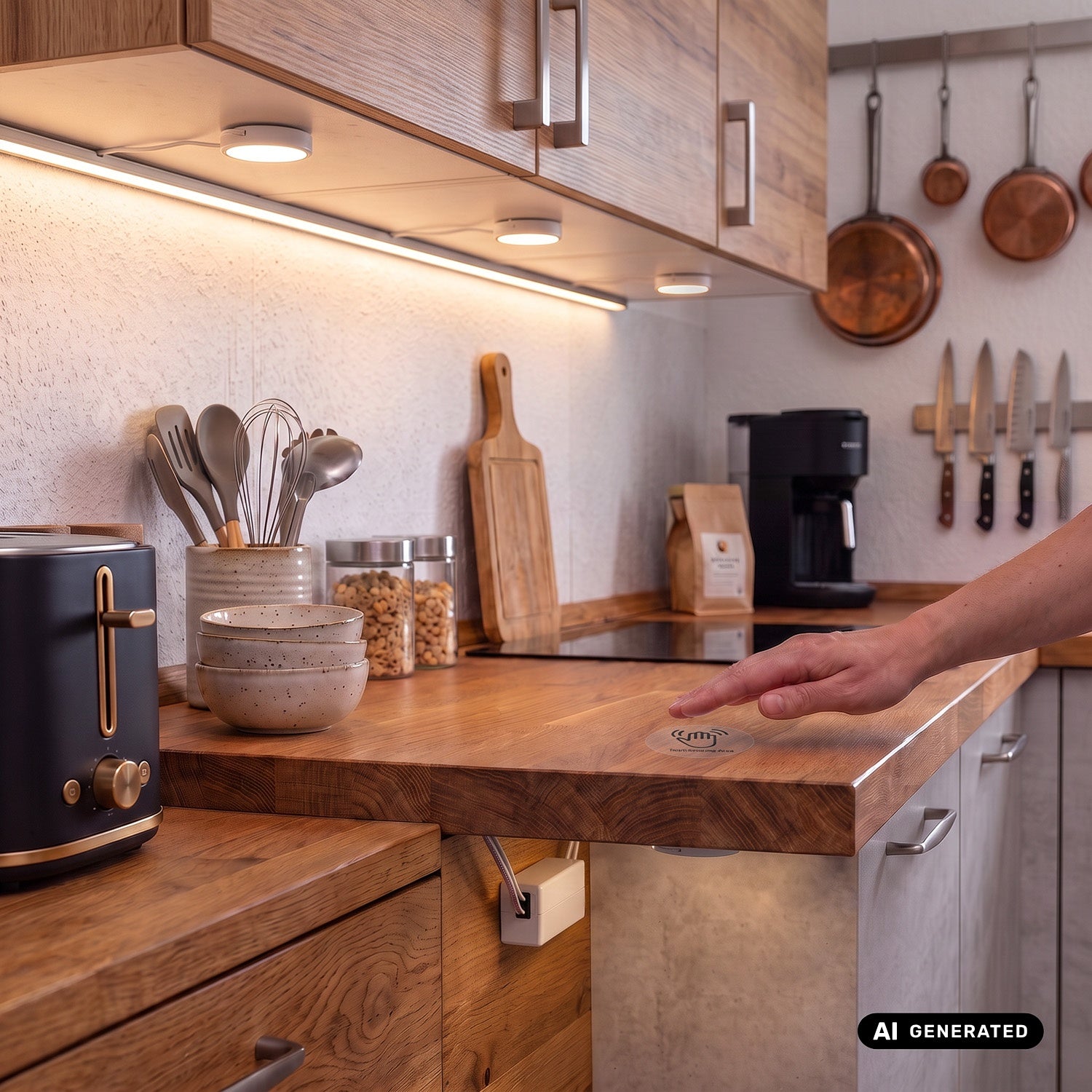

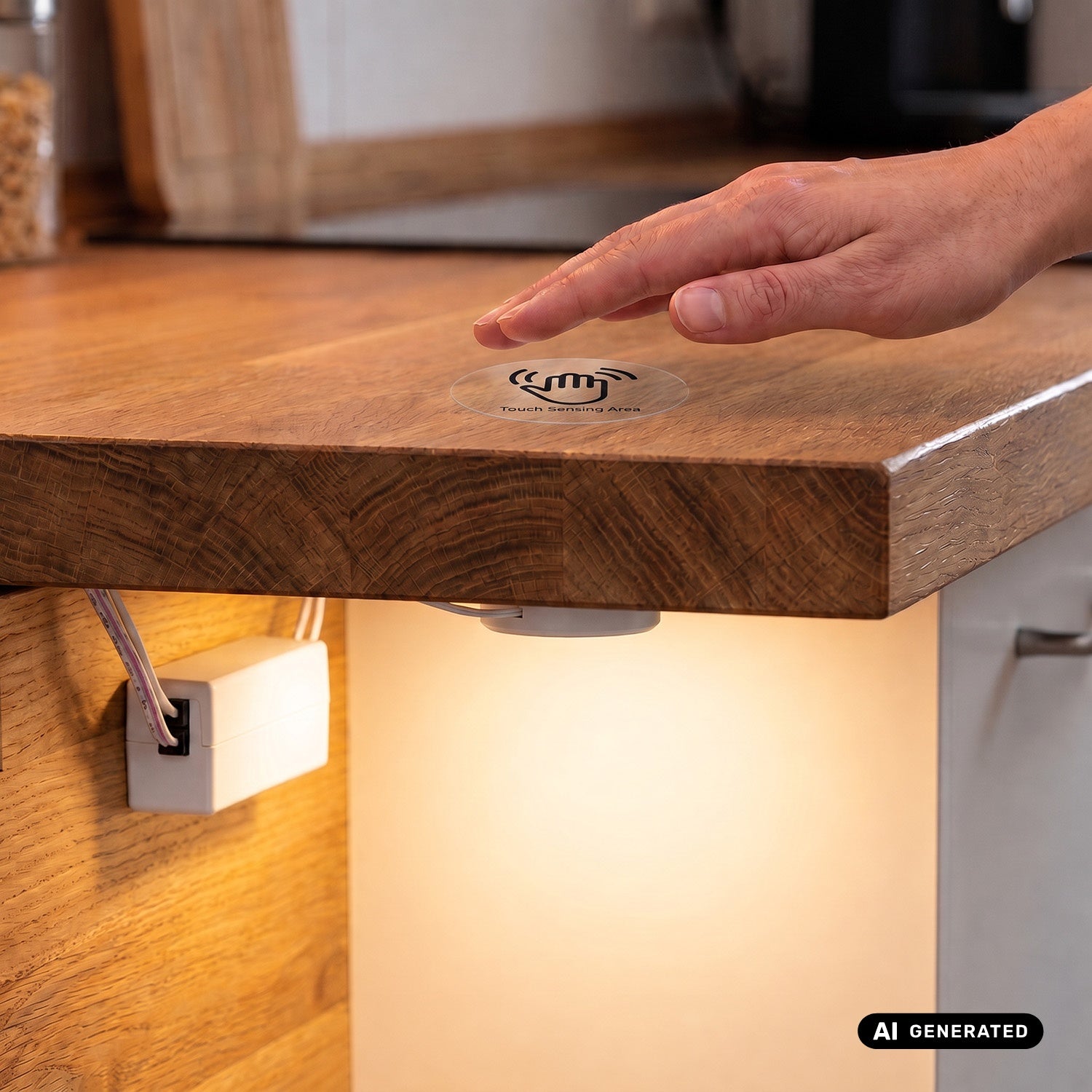

Touch switch mounted under the countertop behind the mirror on the door

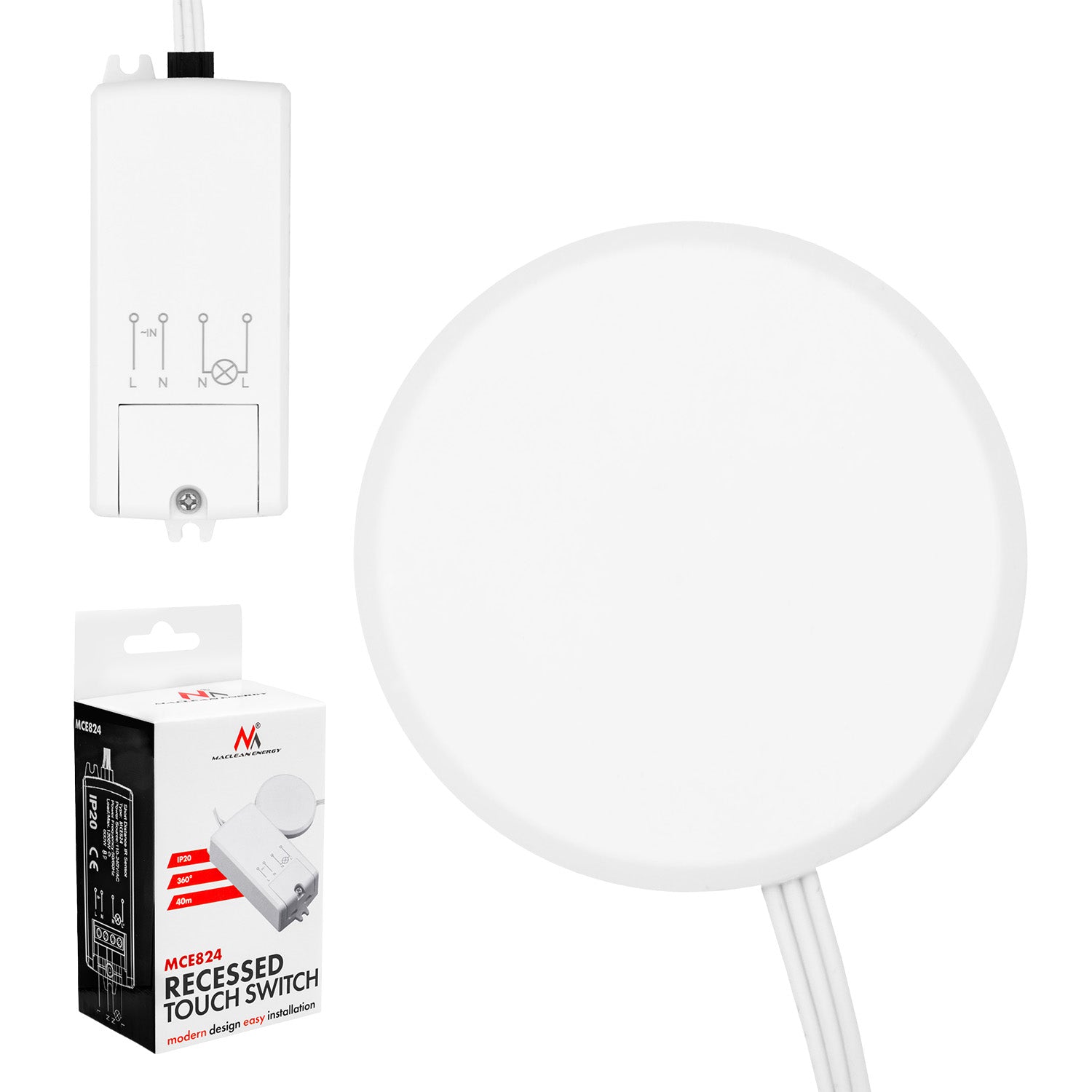

MACLEAN MCE824 – CONCEALED TOUCH SWITCH FOR FLUSH MOUNTING
The Maclean MCE824 is a modern flush-mounted touch switch designed for convenient control of lighting and other compatible devices. The sensor can be installed in a concealed location—under a countertop, behind a cabinet door, behind a door, behind a mirror, behind glass, or behind any other suitable surface—so that once installation is complete, it remains hidden and does not affect the appearance of the cabinetry. A gentle touch on the outer surface at the sensor’s installation location turns the connected device on or off.

TOUCH DETECTION THROUGH SURFACES UP TO 40 MM THICK
The Maclean MCE824 sensor detects touch through surfaces up to 40 mm thick, making it suitable for use in various types of furniture and built-in structures. It works well, among other places, under countertops, behind cabinet doors, behind furniture fronts, behind shelves, behind panels, behind mirrors, and behind glass surfaces. This solution allows you to conceal the control element and maintain a uniform appearance of the furniture without a traditional button. The sensor can be mounted using double-sided adhesive tape, which makes it easy to adapt it to a specific installation.

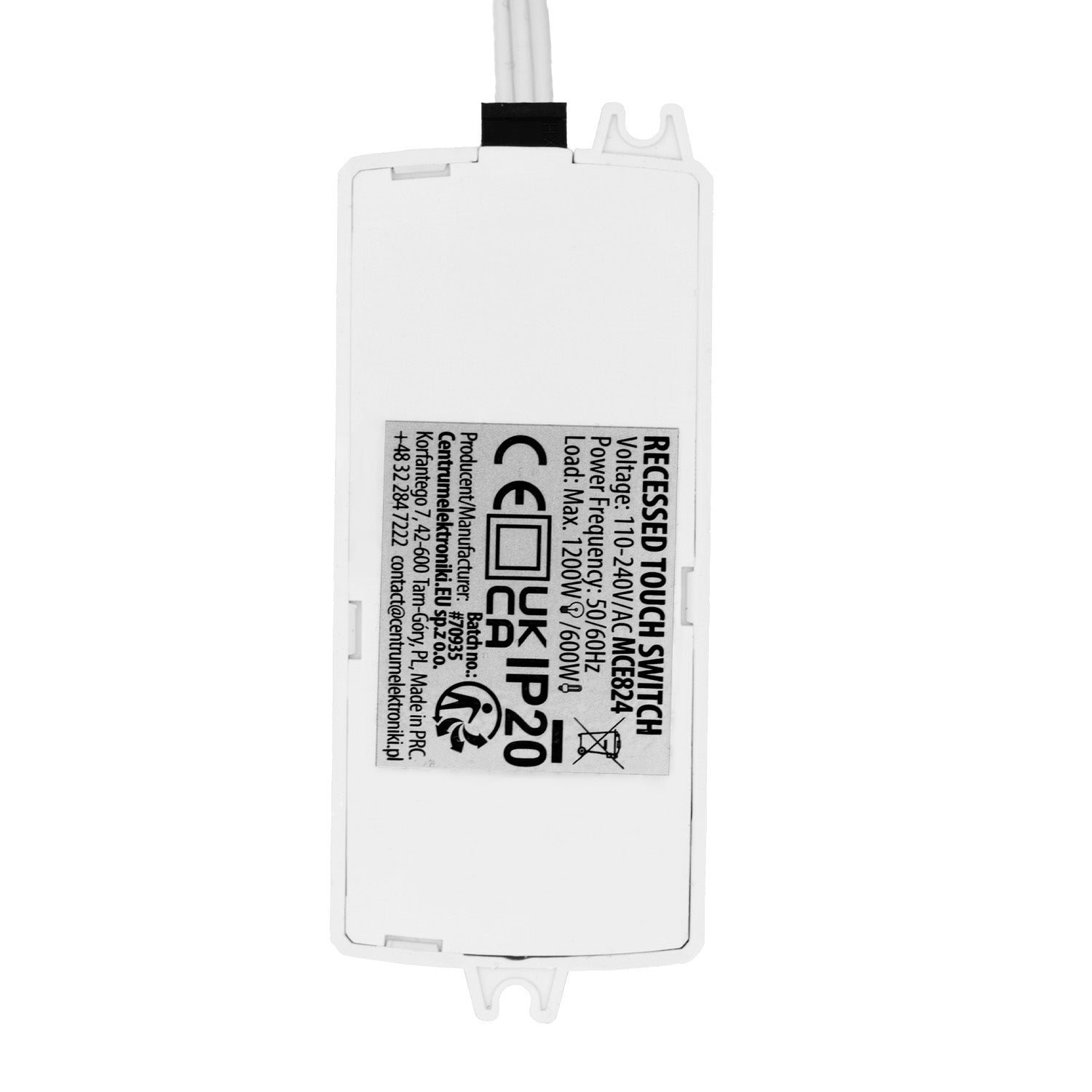

Specification:
- Manufacturer: Maclean
- Model: MCE824
- Color: white
- Voltage: 110–240 V AC
- Rated load: max. 1200 W (resistive load) / 600 W (inductive load)
- Mains frequency: 50/60 Hz
- Rated current: 6 A
- Operating temperature: -20 / +50°C
- Wood/glass thickness: ≤40 mm
- Power consumption: <0.5 W
- Protection class against electric shock: II
- IP rating: IP20

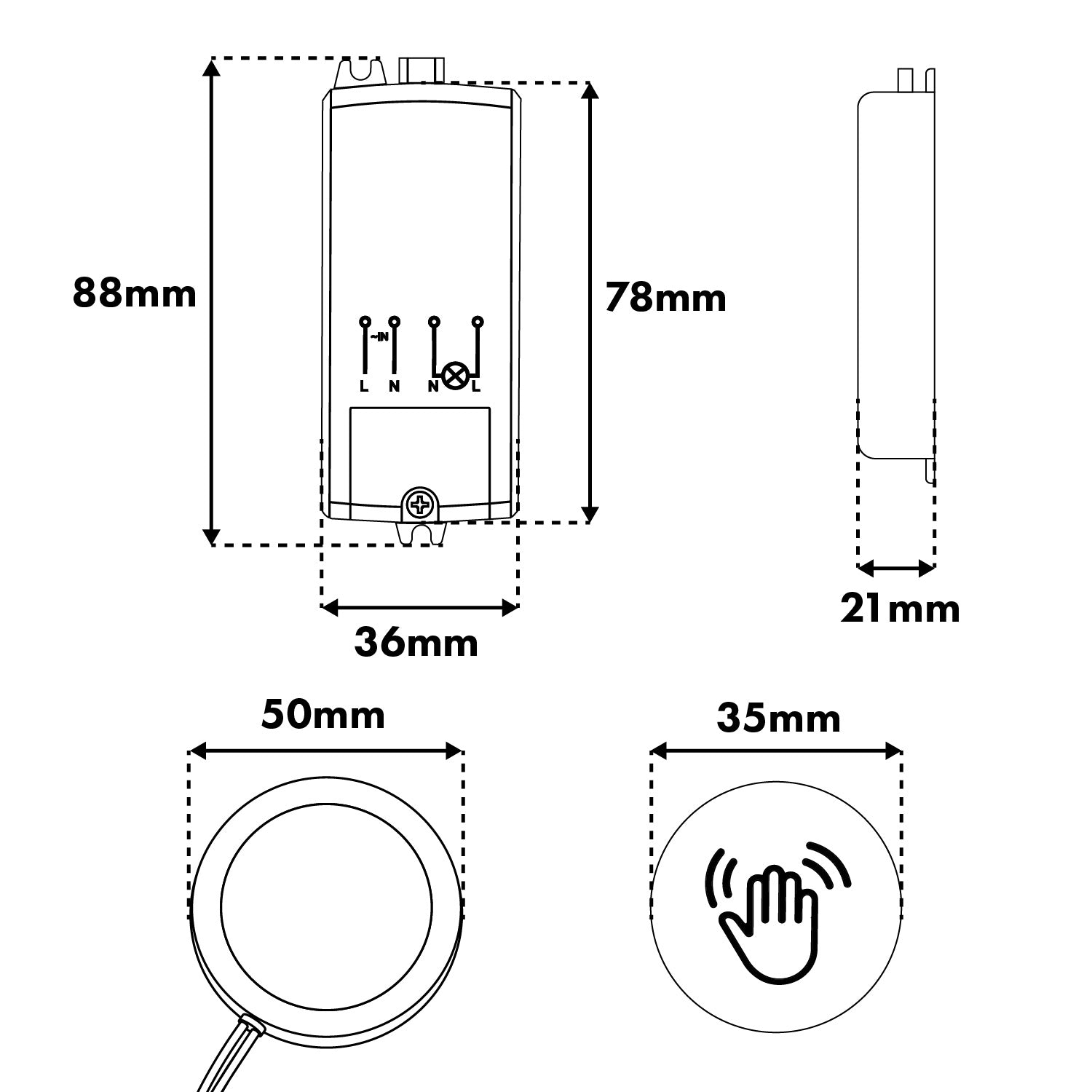

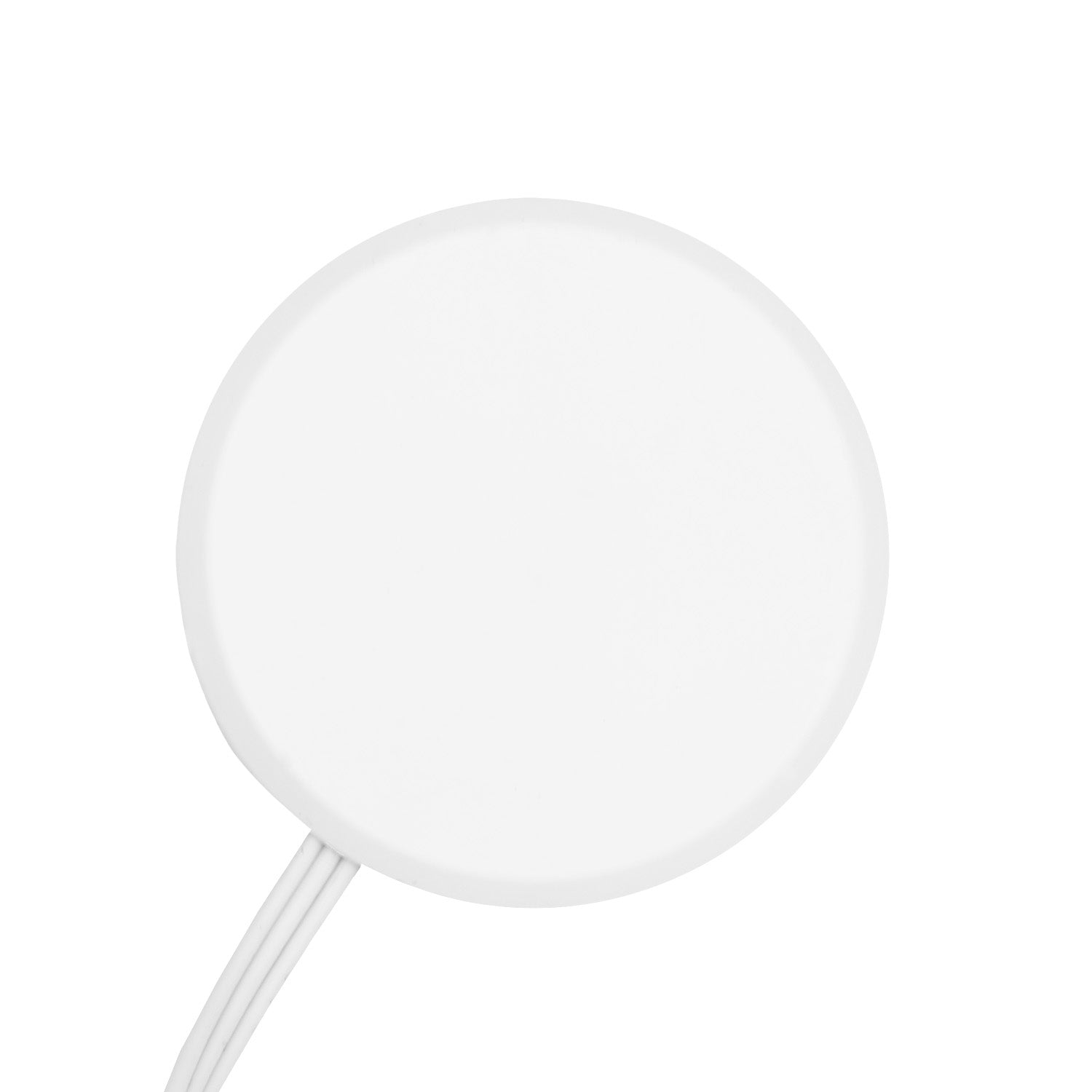

- IR sensor diameter: 50 mm
- IR sensor thickness: 7 mm
- Housing height: 78 mm (88 mm with mounting brackets)
- Housing width: 36 mm
- Housing thickness: 21 mm
- Cable length: 148 mm
- Sticker diameter: 35 mm
- Sensor installation: using double-sided adhesive tape
- Power and control module installation: using the included screws

Set contains:
- Maclean MCE824 Flush-Mount Touch Switch

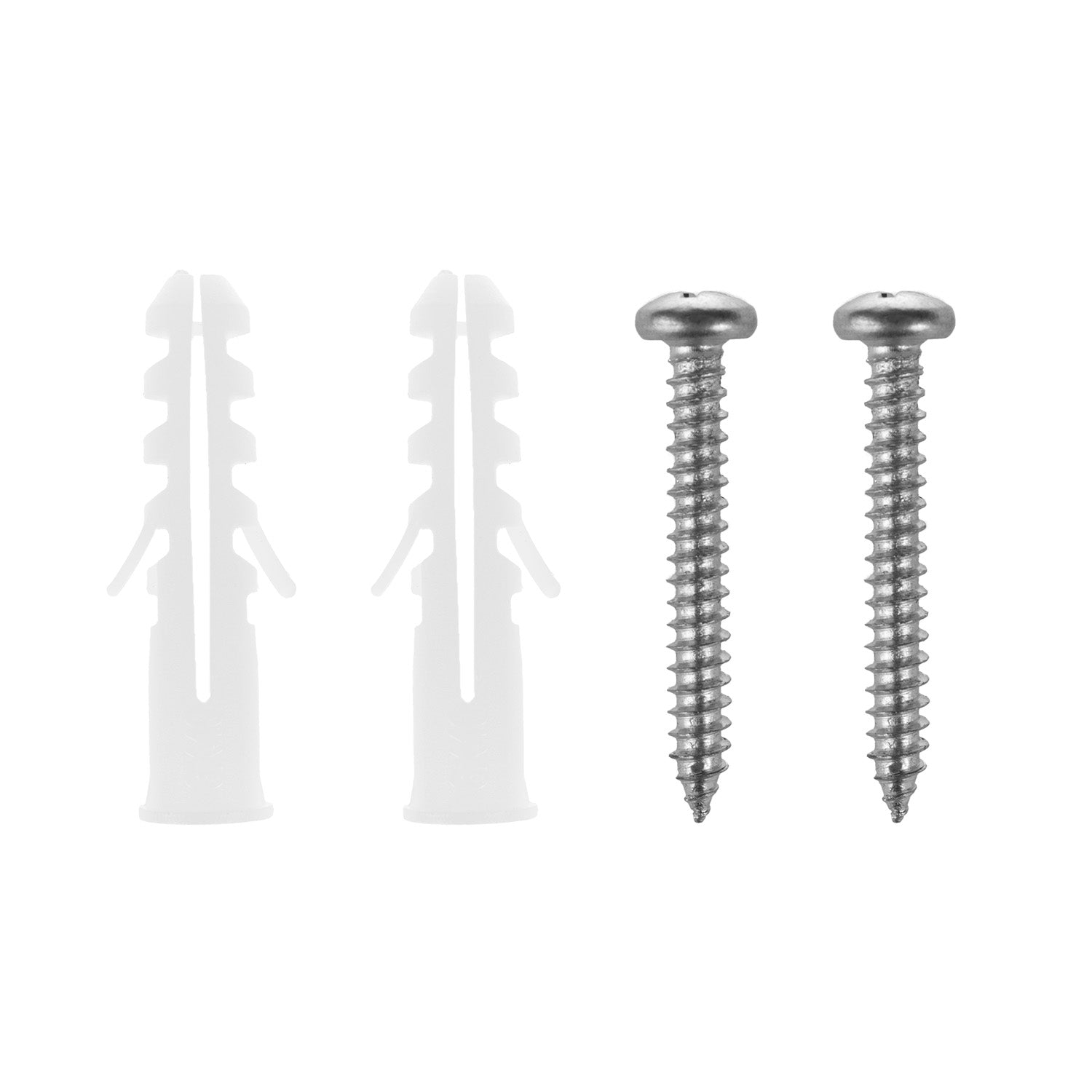

- Installation Accessories

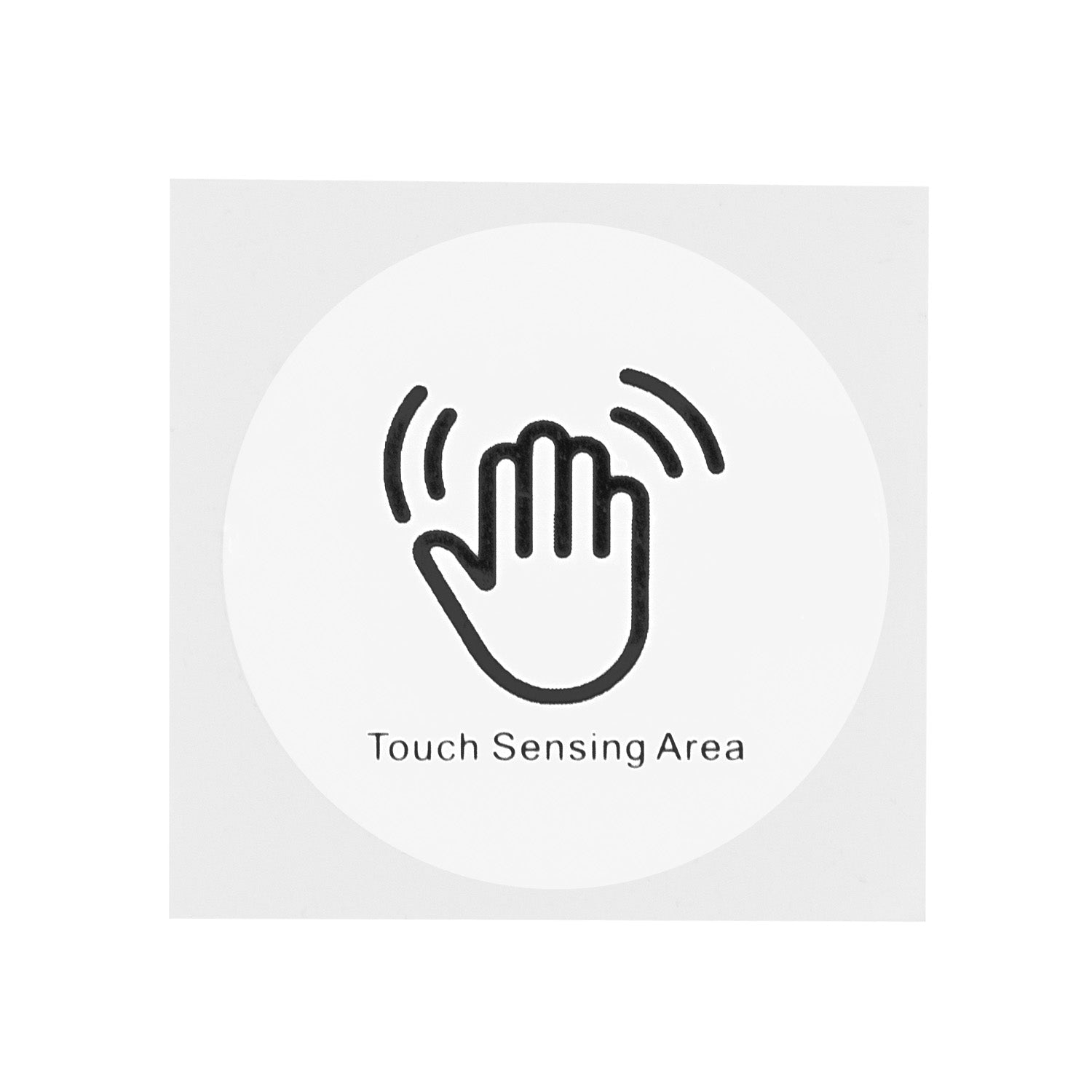

- Sticker for Marking the Installation Location
- User Manual
- Manufacturer's Packaging

CONVENIENT SWITCH WITH NO VISIBLE PARTS

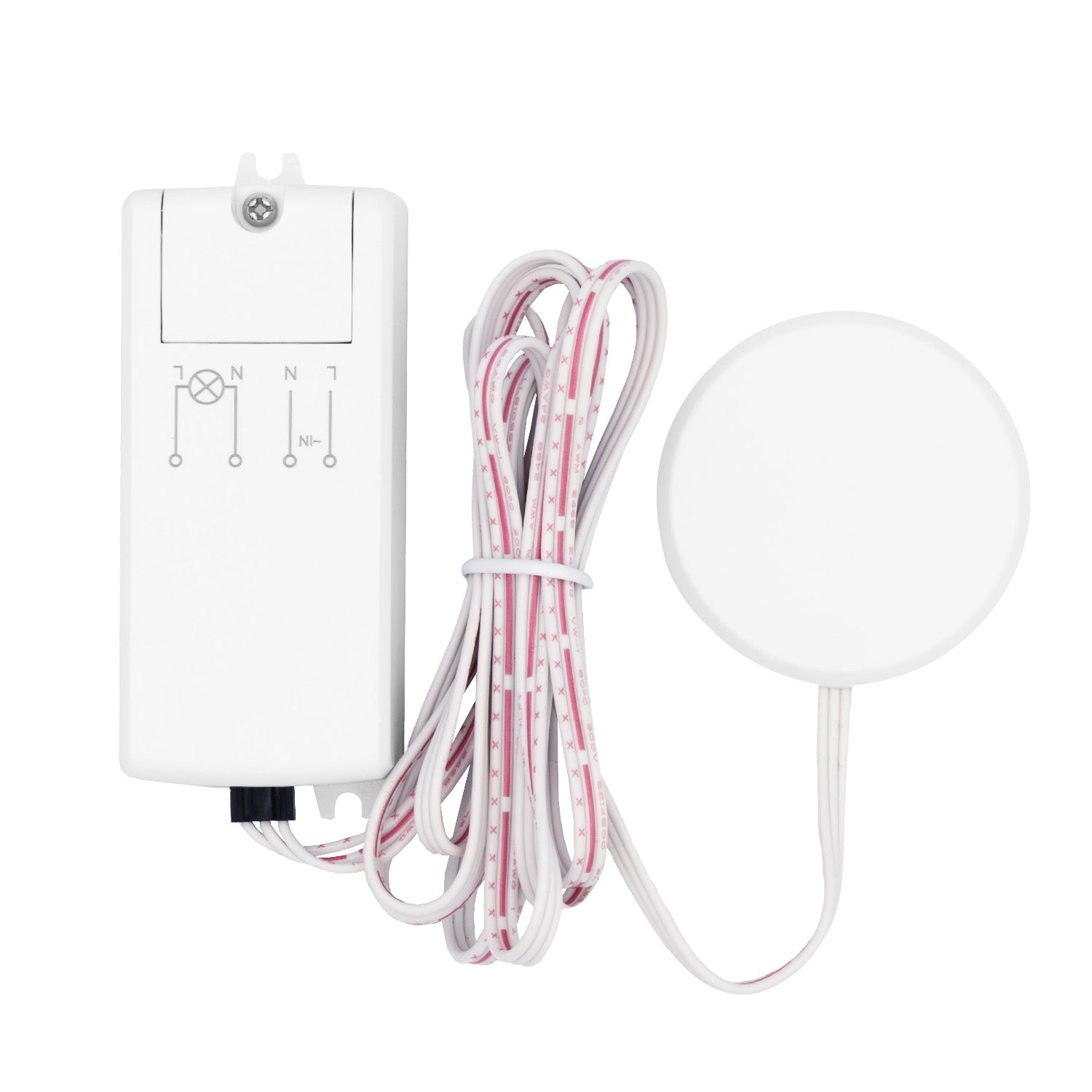

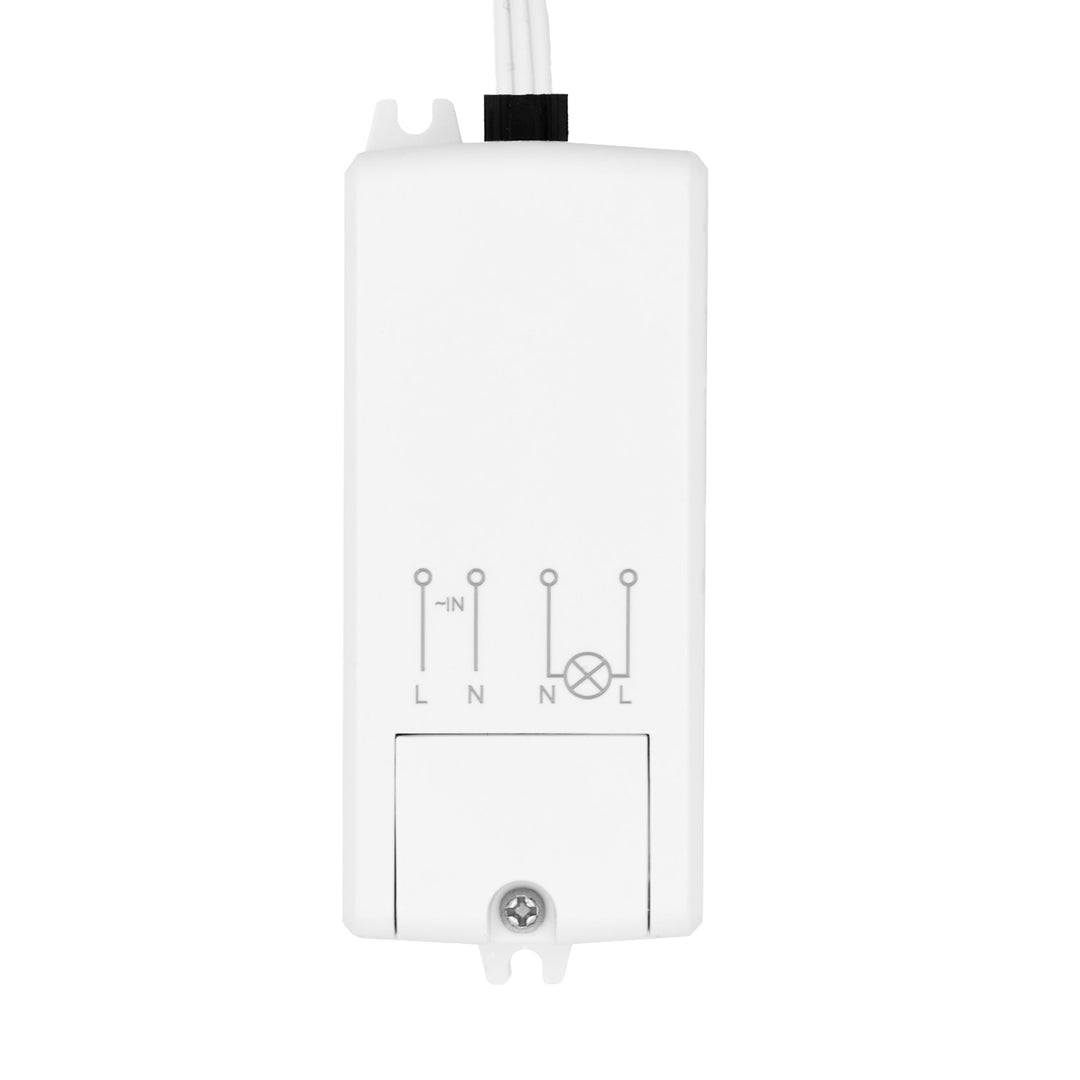

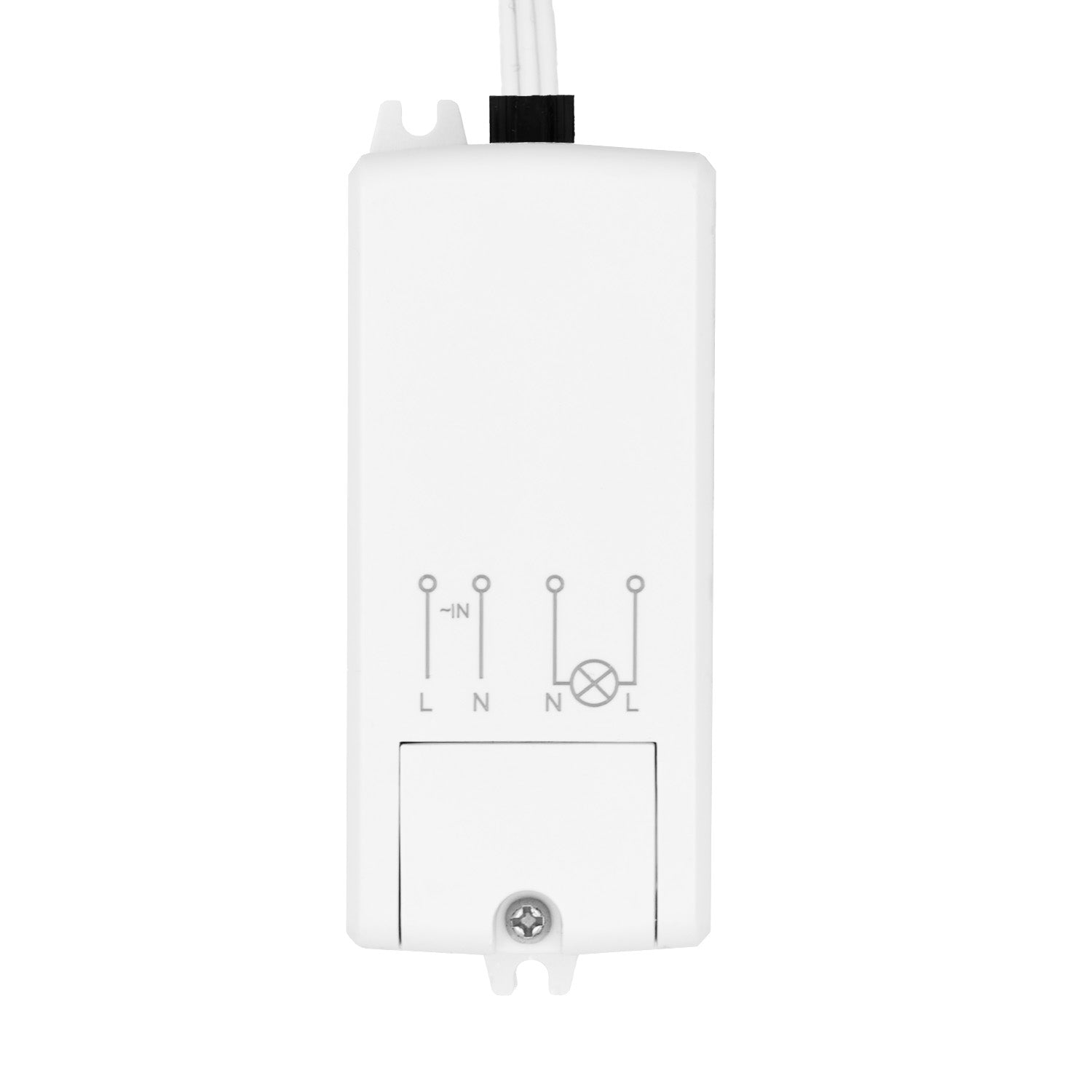

The Maclean MCE824 allows for quick and intuitive control of the connected device without the need to install a visible switch. Simply touch the surface lightly where the sensor is located to turn the device on or off. The power and control module is mounted on the wall using the two included screws, while the sensor can be placed in the desired location within the installation. As a result, the Maclean MCE824 touch switch is ideal for use in furniture, built-in units, panels, and other installations where aesthetics and discreet operation are important.

- Flush-mount touch switch – designed for discreet control of lighting and other compatible devices
- Invisible after installation – the sensor can be hidden beneath the surface of a piece of furniture, countertop, door, or panel
- Responds to a light touch – a light touch on the outer surface turns the connected device on or off
- Works through material up to 40 mm thick – the sensor detects touch through the appropriate surface of the fixture
- Versatile installation options – it can be placed under a countertop, behind a door, behind a cabinet front, behind a mirror, behind glass, or behind any other suitable surface
- Designed for built-in furniture – ideal for cabinets, closets, display cases, kitchen cabinets, shelves, and panels
- Simple on/off operation—no mechanical buttons and no need for a visible control element
- Discreet sensor installation—the sensor is mounted using double-sided adhesive tape
- Aesthetic finish for built-in furniture – the absence of a visible switch maintains a uniform surface on the furniture or panel
- Versatile application – suitable for homes, offices, stores, display cases, and other installations requiring concealed controls
