Maclean Flush-Mount Touch Switch, <40 mm, 12–24 V DC, max. load 48/96 W, MCE825

Under-counter touch switch behind a mirror for 12-24V LEDs

MACLEAN MCE825 – FLUSH-MOUNT TOUCH SWITCH AND DIMMER
The Maclean MCE825 is a flush-mount touch switch with a dimming function that is invisible once installed, designed to control low-voltage LED lighting. The device is compatible with systems powered by 12–24 V DC, making it ideal for use with LED strips, LED modules, furniture lighting fixtures, and other compatible light sources operating within this voltage range. A gentle touch on the surface where the sensor is mounted turns the lighting on or off, and the dimming function allows you to adjust the brightness to your current needs.

CONTROL THROUGH SURFACES UP TO 40 MM THICK

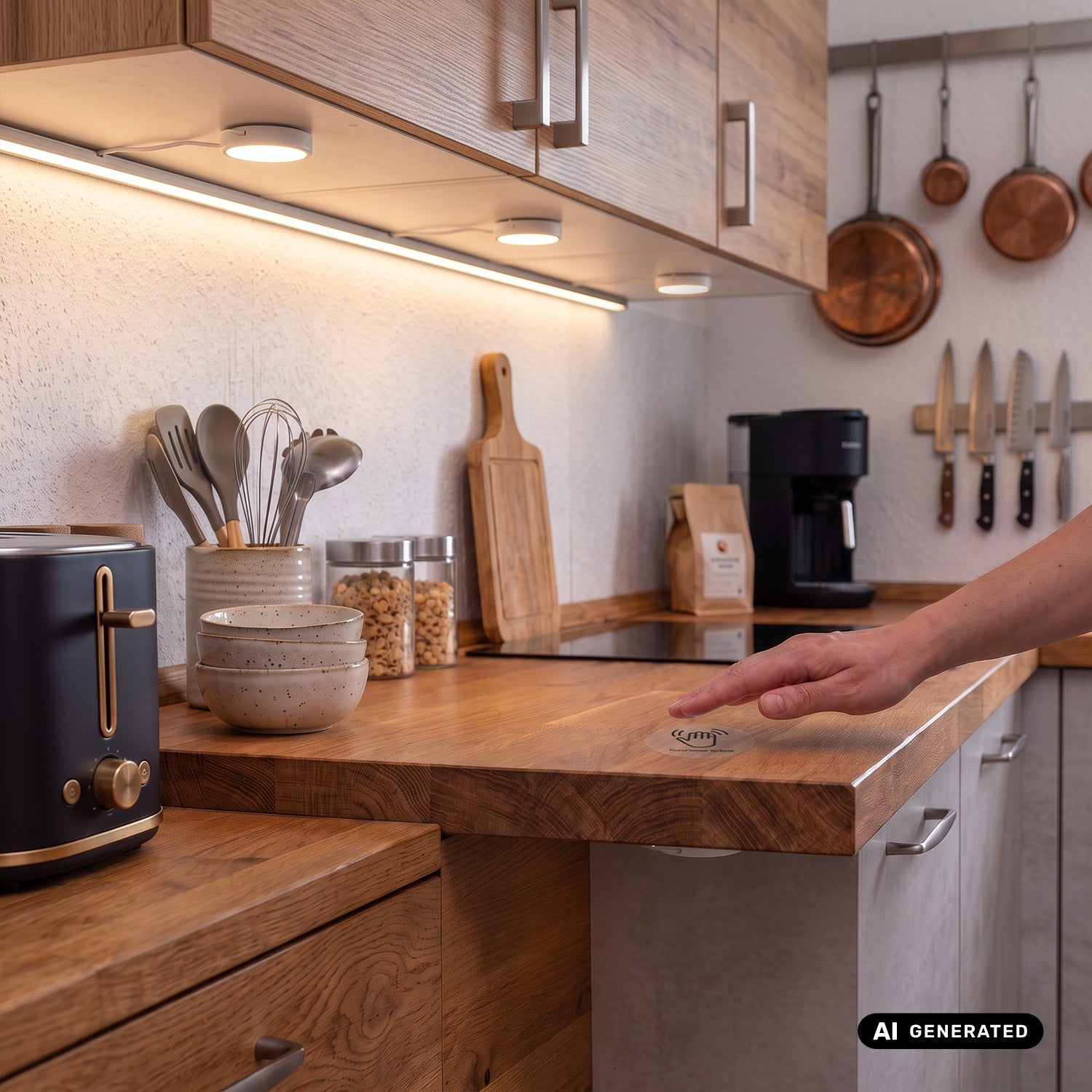

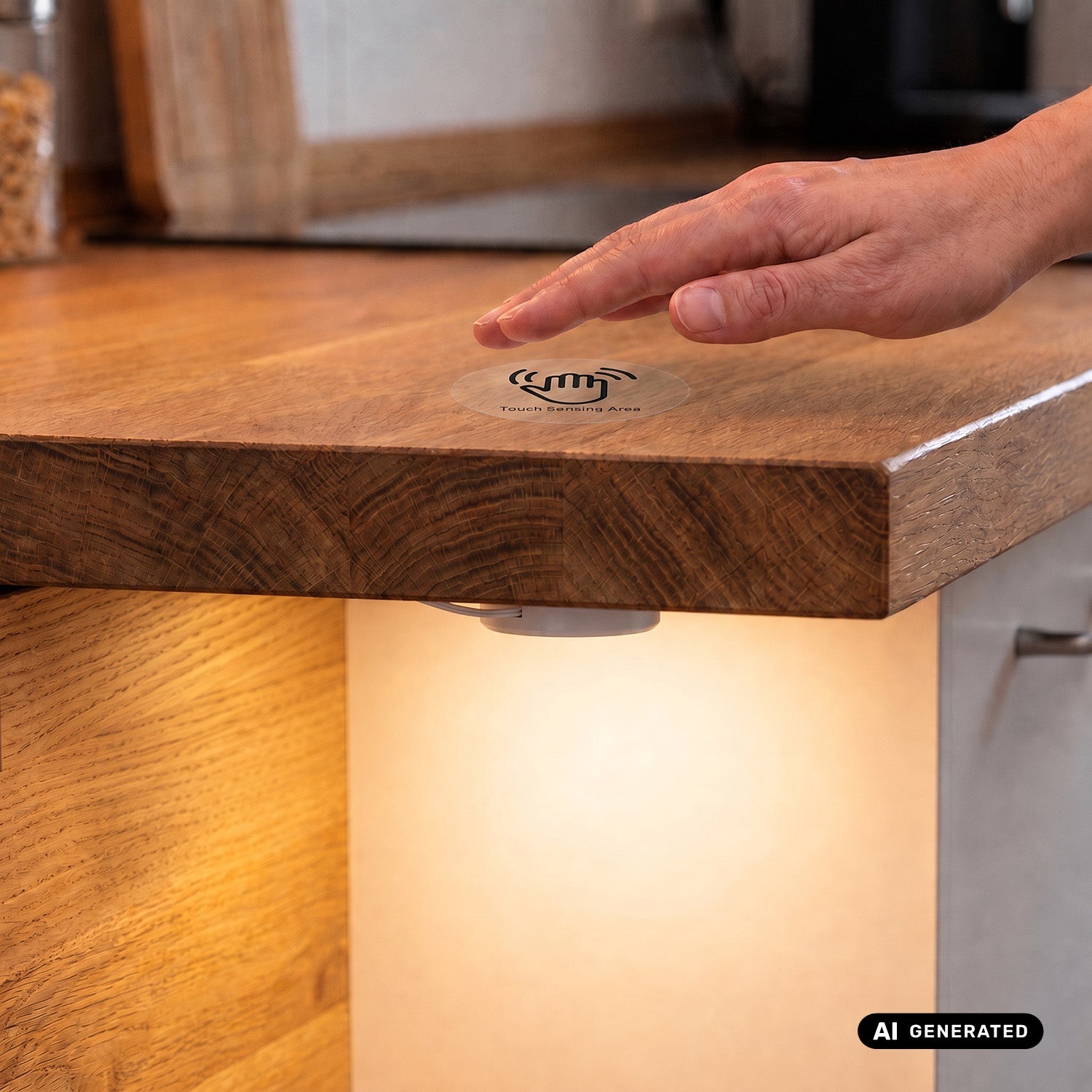

The Maclean MCE825 sensor can be mounted under a countertop, behind a cabinet door, a door, a mirror, glass, or any other suitable surface up to 40 mm thick. Once installed, it remains hidden, and the user controls the lighting by gently touching the outer surface of the fixture. A short touch turns the light on and off, while a longer press allows for smooth brightness adjustment. This solution works perfectly in cabinets, walk-in closets, kitchen cabinets, display cases, shelves, panels, and other places where a traditional switch would be visible or difficult to use.

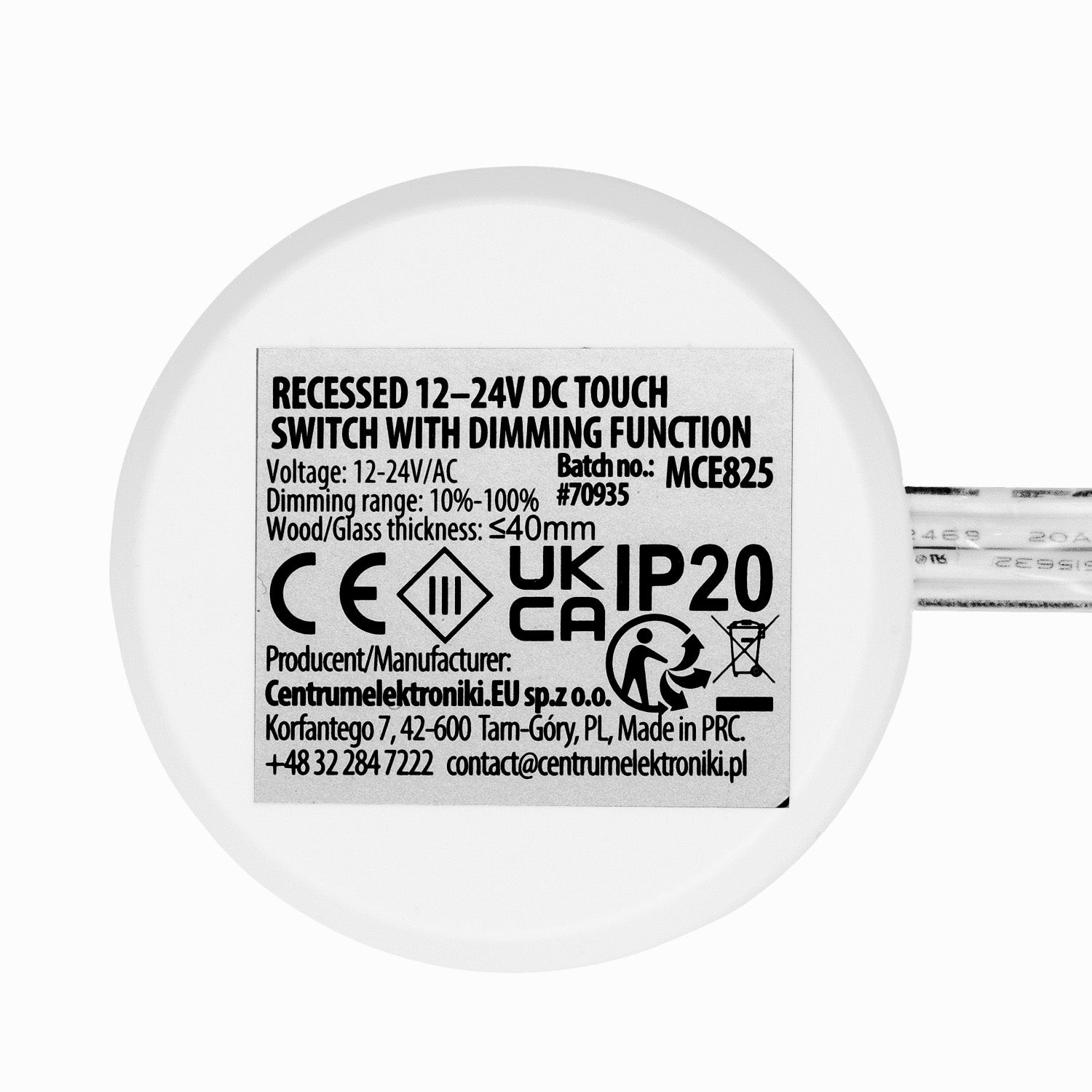

Specification:
- Manufacturer: Maclean
- Model: MCE825
- Color: white
- Voltage: 12–24 V DC
- Rated load: LEDs with a maximum power of 48 W (12 V DC), LEDs with a power of 96 W (24 V DC)
- Rated current: 4 A
- Operating temperature: -20 / +50°C
- Thickness of wood/glass for mounting: ≤40 mm
- Dimming range: 10%–100%
- On/off control: short press
- Brightness adjustment: long press (over 2 seconds)
- Protection class against electric shock: III
- IP rating: IP20
- Power: <0.5

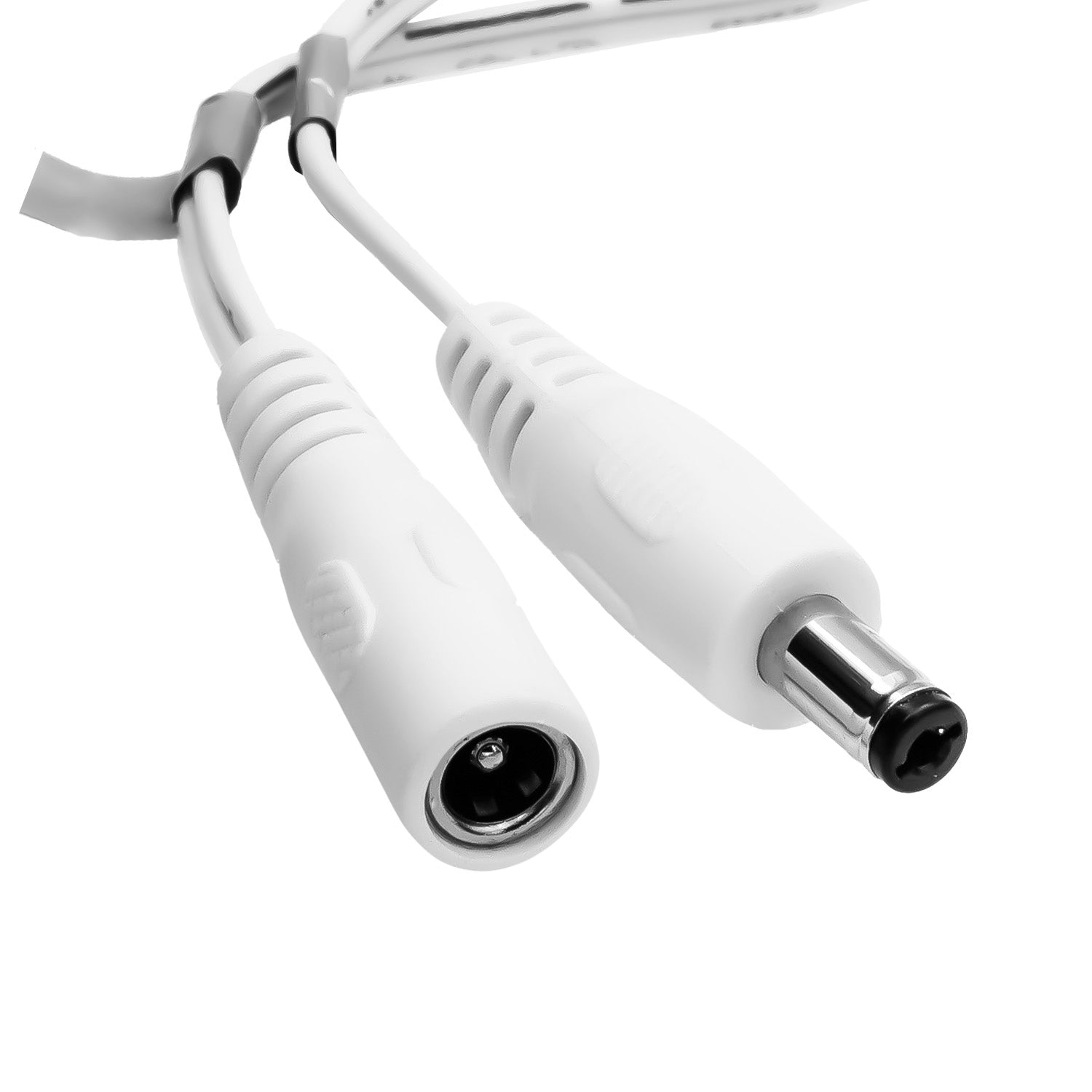

- Connector type: DC 5.5/2.1 mm

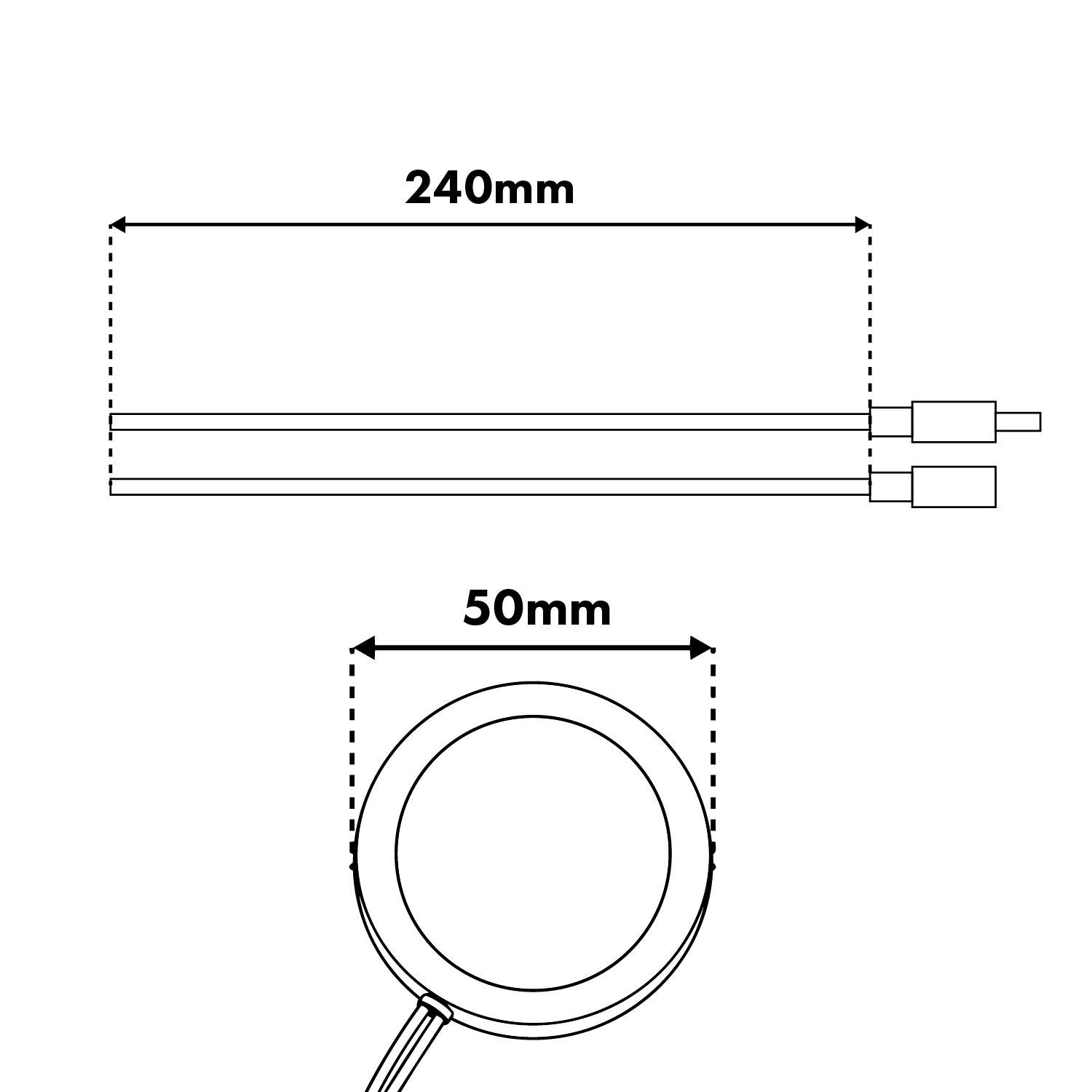

- IR sensor diameter: 50 mm
- IR sensor thickness: 7 mm
- Cable length: 2x 240 mm
- Sticker diameter: 35 mm
- Sensor mounting: using double-sided adhesive tape

Set contains:

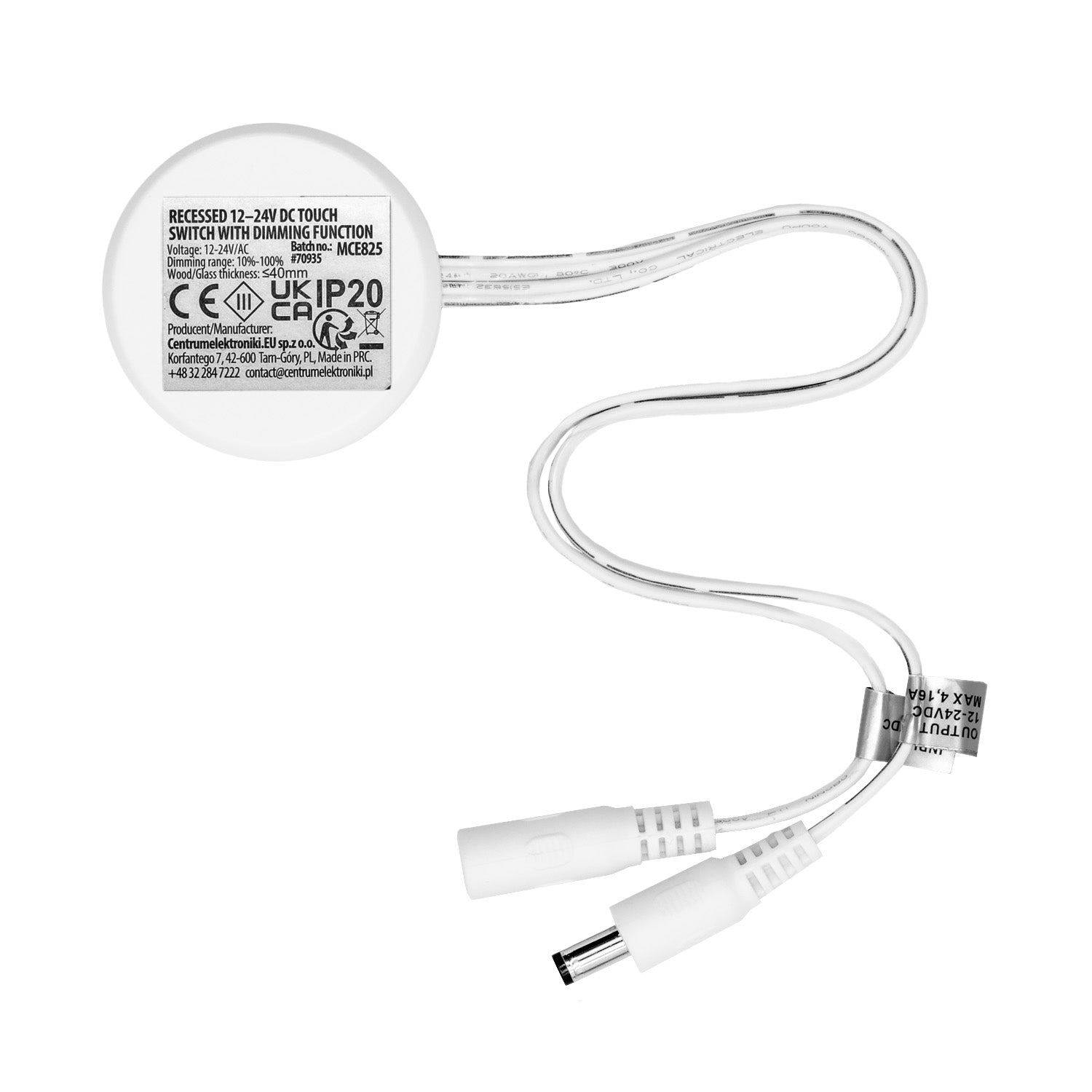

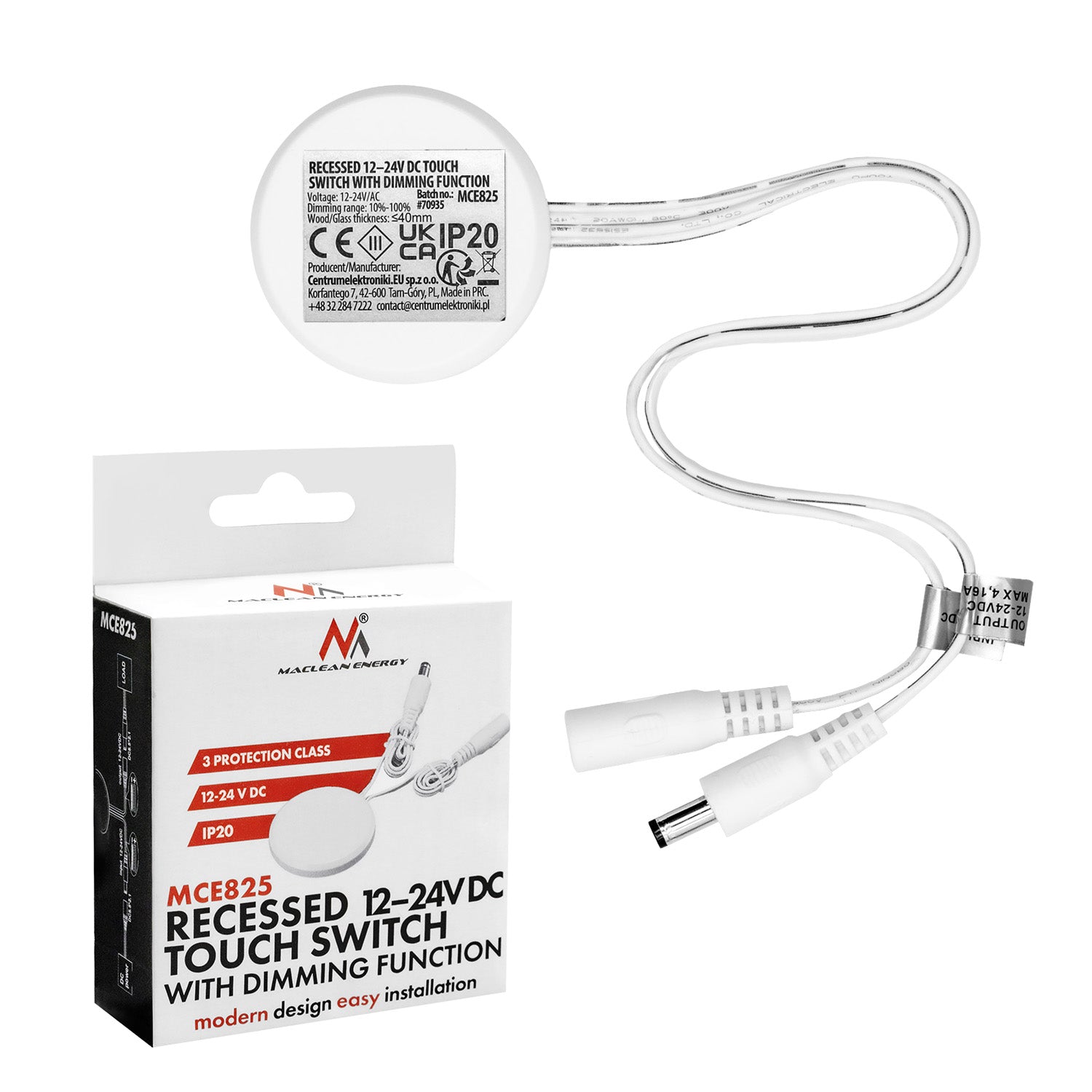

- Maclean MCE825 Flush-Mount Touch Switch

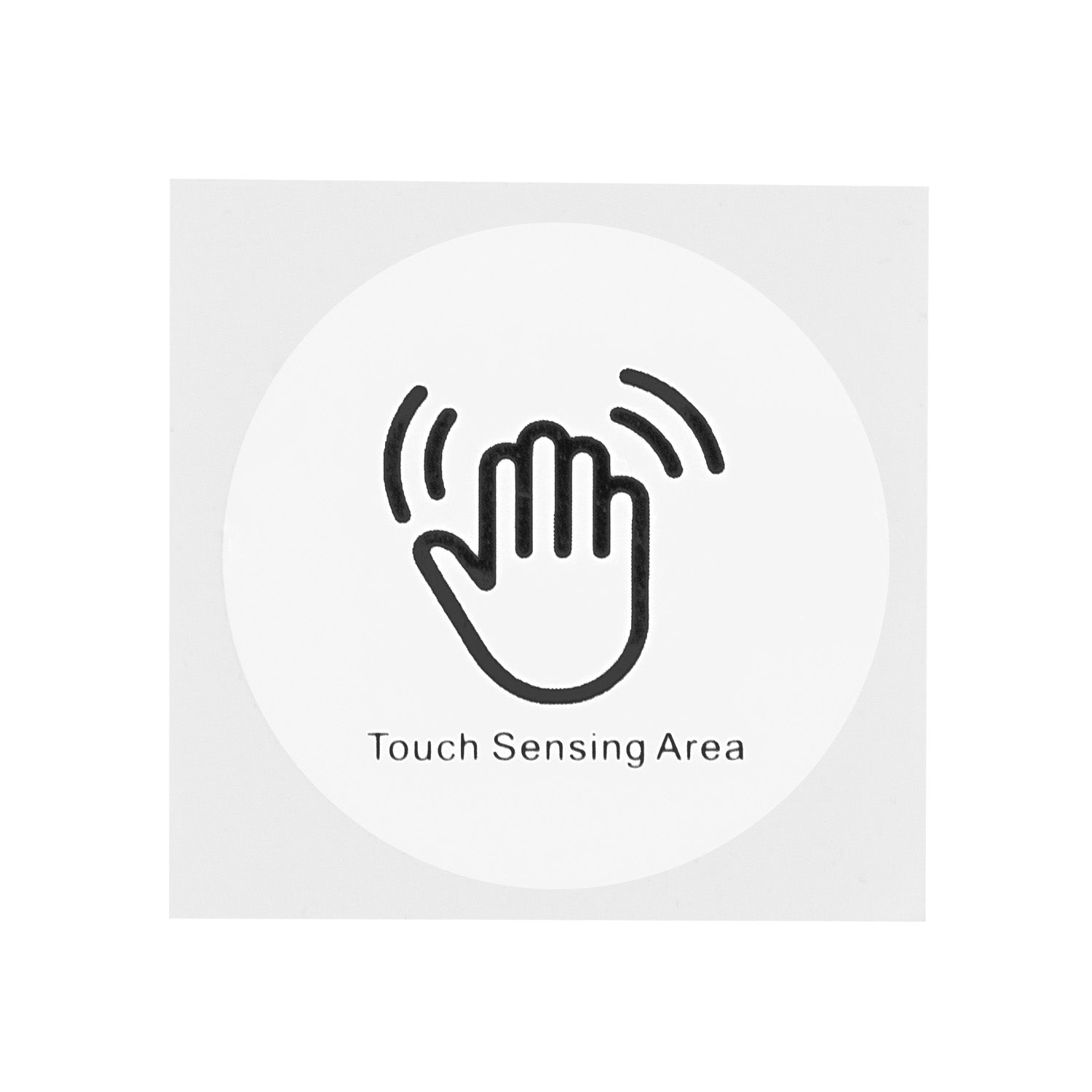

- Installation Location Label
- User Manual
- Manufacturer's Packaging

COMPACT 12–24 V LED LIGHTING SOLUTION
The Maclean MCE825 is designed for direct integration into low-voltage lighting systems. The sensor can be easily positioned in the desired installation location and secured with double-sided adhesive tape, maintaining an aesthetic, hidden appearance. The Maclean MCE825 touch switch combines convenient control, dimming, and completely discreet installation, making it a practical addition to LED lighting in furniture, residential interiors, offices, and functional spaces.

- Touch switch with dimming function – allows you to turn on, turn off, and adjust the brightness of connected lighting
- Designed for 12–24 V DC installations – works with low-voltage lighting systems
- Compatible with LED lighting – suitable for LED strips, LED modules, furniture lights, and other light sources powered by 12–24 V DC
- One-touch on/off—a short tap quickly turns the lights on or off
- Brightness control – holding the surface down longer allows you to brighten or dim the light

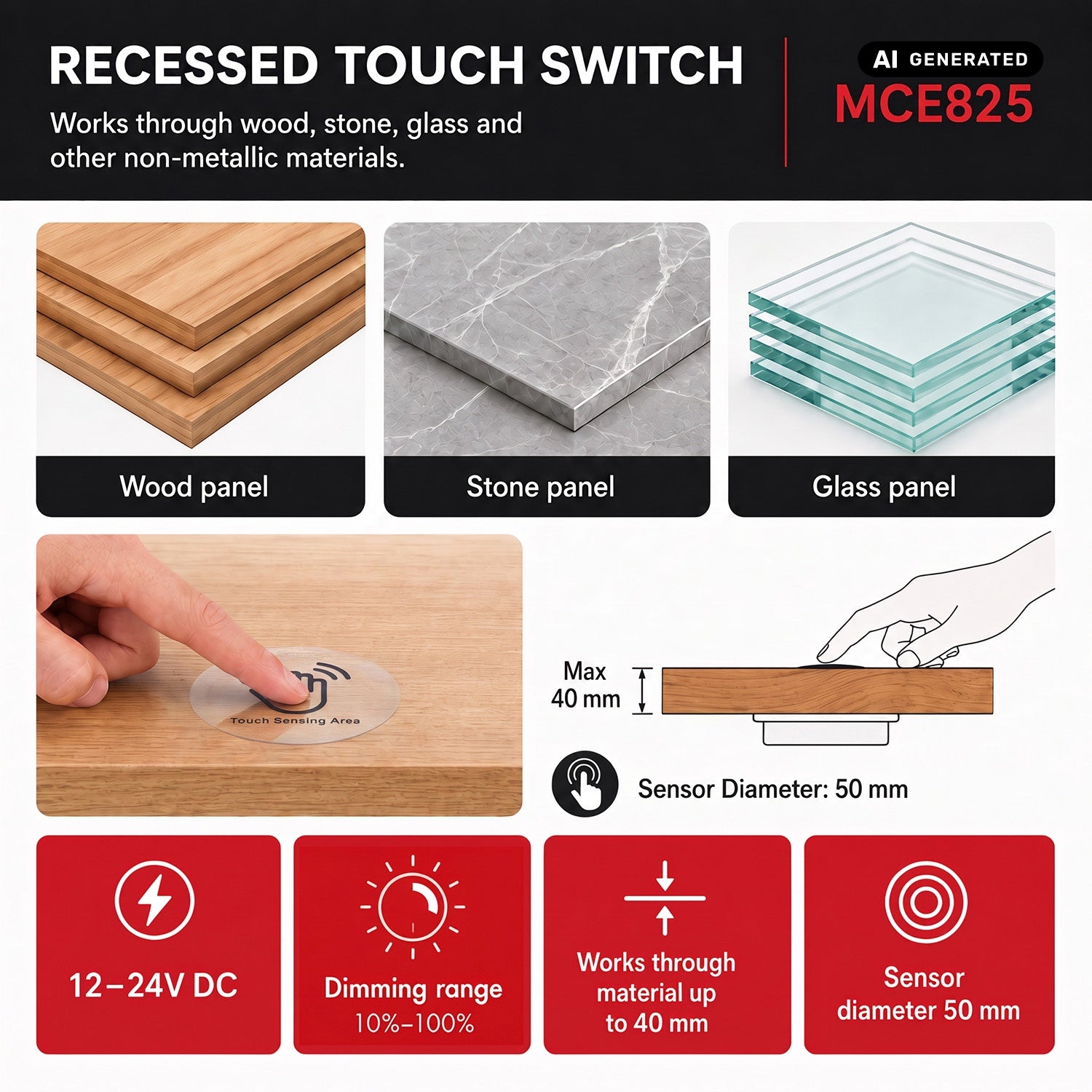

- Works through surfaces up to 40 mm thick – the sensor detects touch through an appropriate layer of the fixture
- Completely invisible after installation – the sensor can be hidden under a countertop, behind a cabinet front, behind a door, behind a mirror, or behind glass
- Installs using double-sided adhesive tape – allows you to easily place the sensor in the desired location within the cabinetry
- Wide range of applications in furniture – ideal for cabinets, walk-in closets, display cases, kitchen cabinets, shelves, and panels
- Aesthetic operation with no visible button—maintains a seamless surface on furniture or countertops
- Convenient everyday lighting control—touch-based operation is fast, intuitive, and eliminates the need to search for a traditional switch
- A compact solution for modern interiors—ideal wherever discreet installation, functionality, and adjustable brightness are key
