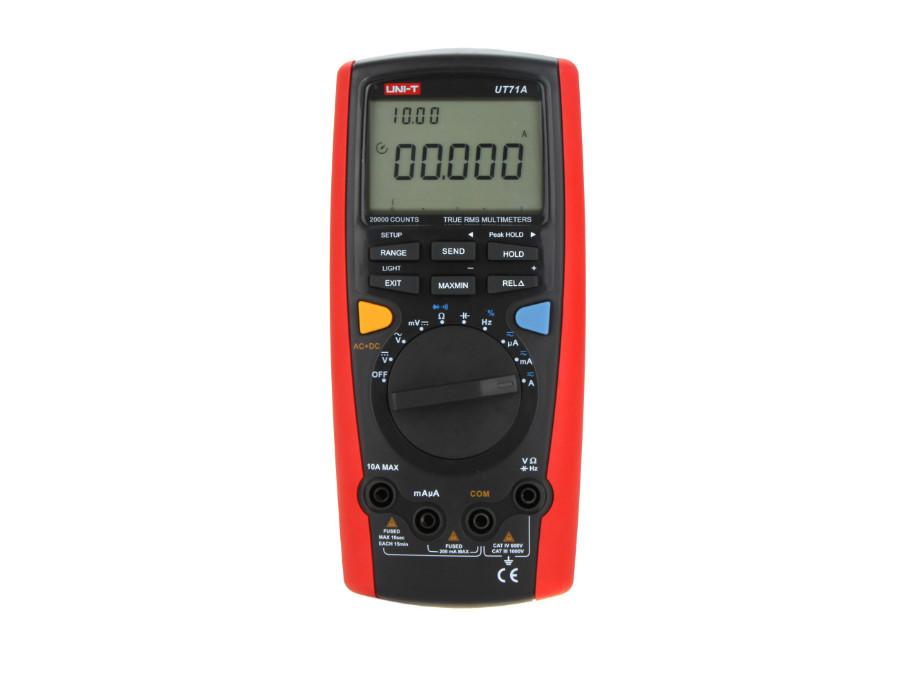

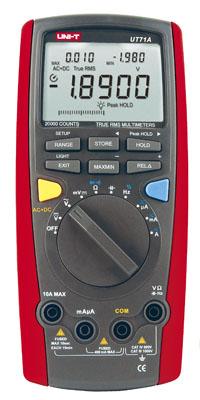

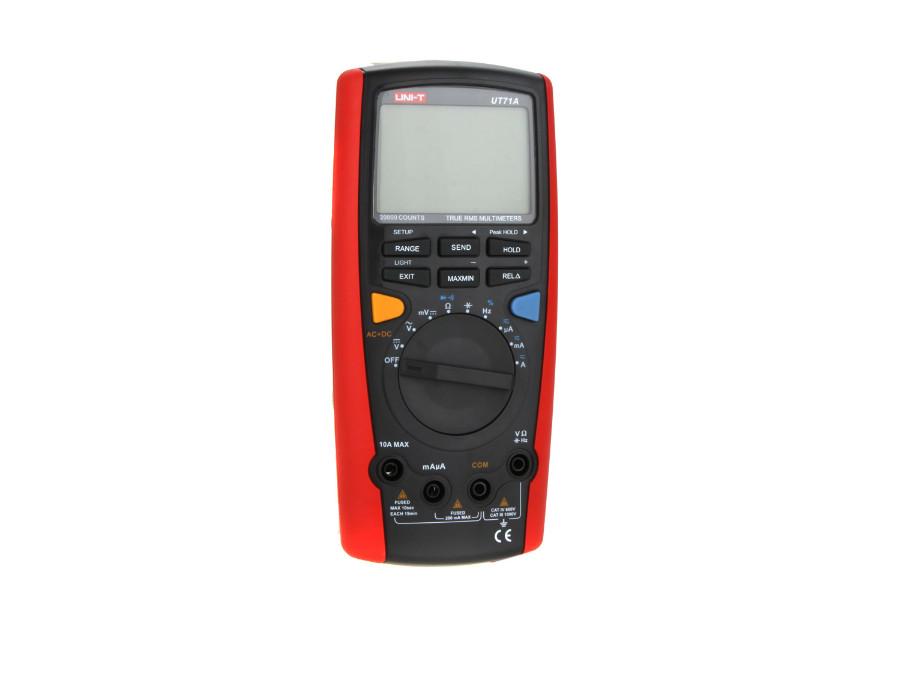

UNI-T UT71A USB True RMS Digital Meter UT-71A
UNI-T UT71A multimeter is a high quality measuring instrument offering a wide range of measurement functions, high quality workmanship. The meter provides high accuracy and resolution of measurement. The maximum indication on the display is 20000.The quality of workmanship and reliability of operation is confirmed by the very high popularity of the UNI-T brand and its permanent position in the market.

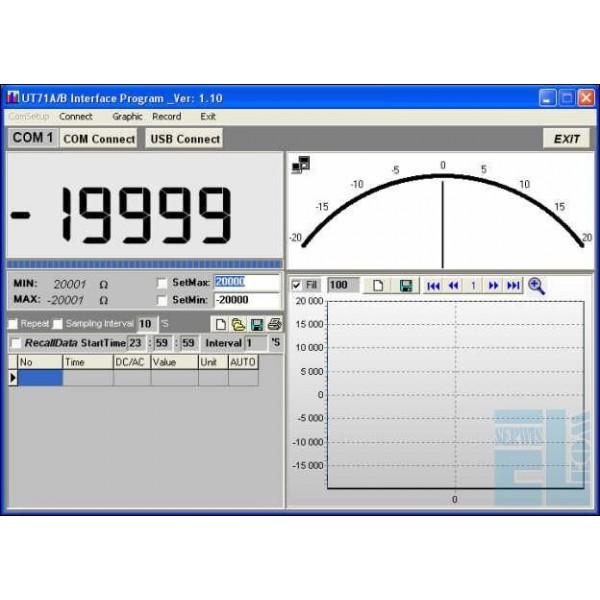

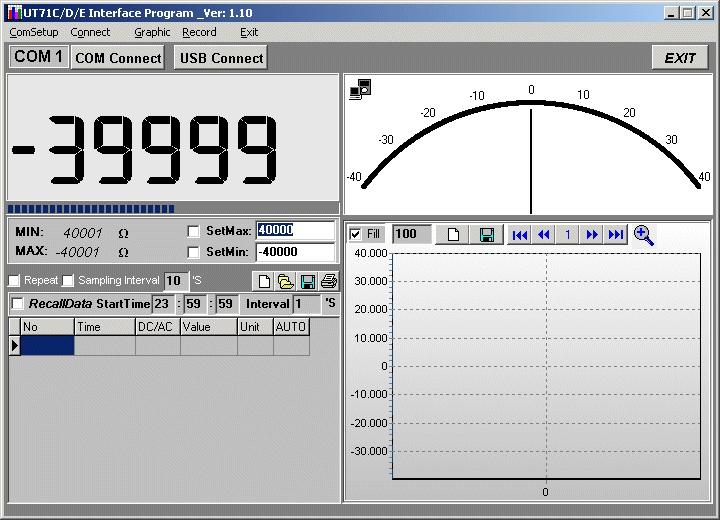

UT71A is a professional intelligent digital multimeter with the accuracy of laboratory instruments and excellent measurement performance. In addition to measuring basic electrical and non-electrical quantities, it also enables relative measurement, saves and recalls measurement data, realizes True RMS and AC+DC measurement. The meter comes with software through which measurement data can be saved and read and stored. You can also zoom in and view them graphically.
Specification:
- DC voltage: 200 mV / 2 V / 20 V / 200 V / 1000 V ±(0.1%+8)
- AC voltage: 2 V / 20 V / 200 V / 1000 V ±(0.8%+40)
- DC current: 200 µA / 2000 µA / 20 mA / 200 mA / 10 A ±(0.2%+20)
- AC current: 200 µA / 2000 µA / 20 mA / 200 mA / 10 A ±(1%+15)
- Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm ±(0.5%+20)
- Capacitance: 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF ±(1.5%+20)
- Frequency: 20 Hz / 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz / 20 MHz / 200 MHz ±(0.1%+15)
- Filling factor: 10-90%
- Diode test
- Circuit continuity check
- Optical connector
- Fuse: 10 A
- Power supply: 9 V battery (6F22)
- Display: 73 x 50 mm
- Net weight: 384 g
- Dimensions: 200 x 93 x 40 mm

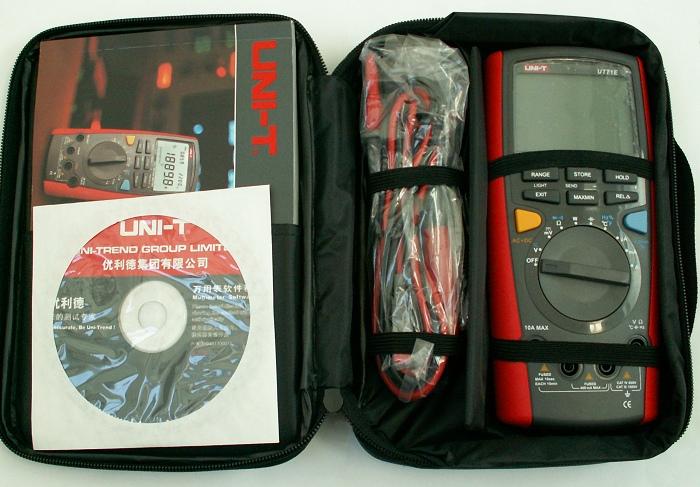

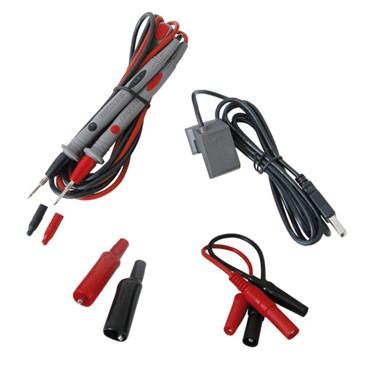

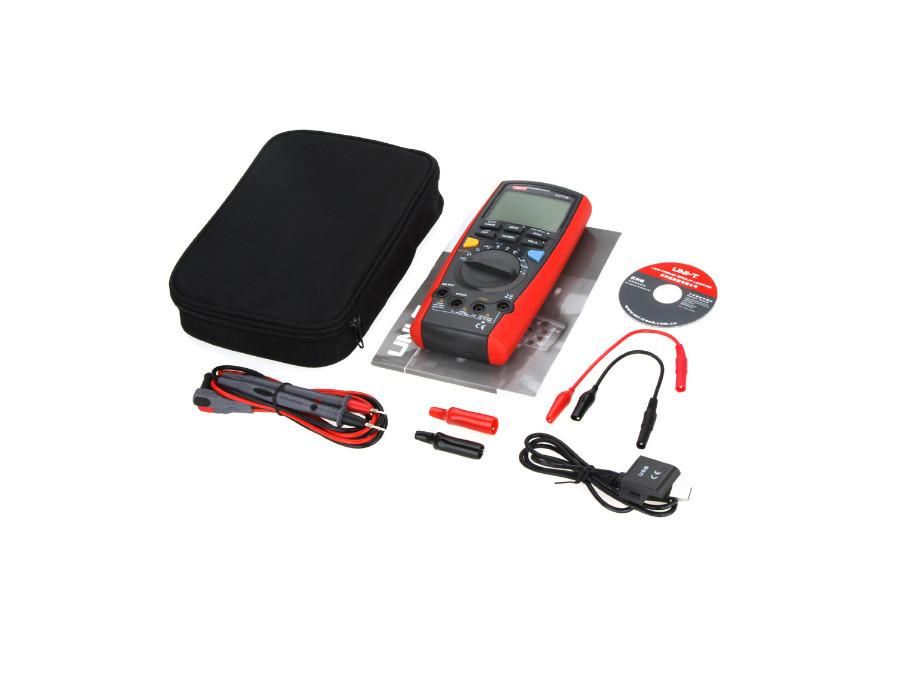

Set contains:
- UT-71A universal digital meter

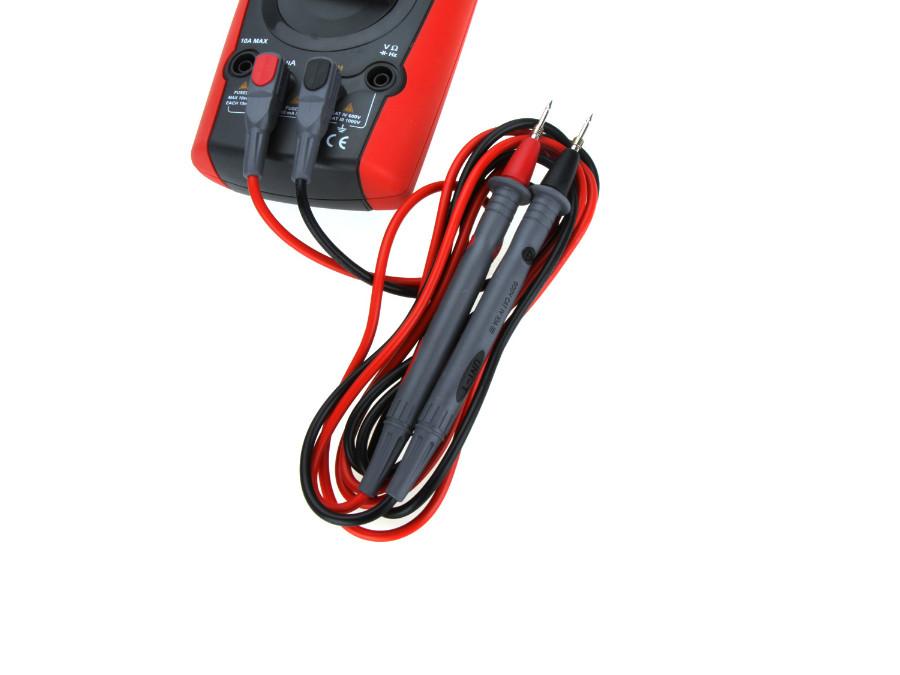

- Test leads
- Case
- 9V battery
- USB cable
- User manual
- Manufacturer's packaging
Additional features:
- Automatic/manual change of measuring ranges
- AC+DC measurements
- Analog bargraph
- True RMS
- Peak value recording
- MAX/MIN value recording
- Relative value measurement
- Data transmission
- Freeze last indication
- Automatic shutdown
- Low battery indicator
- LCD backlight
- Setup function
- Main display + two auxiliary displays
- Maximum reading: 20000
- DC voltage
- AC voltage
- DC current
- AC current
- Resistance
- Capacitance
- Frequency
- Diode test
- Circuit continuity check
