Rebel RB-33C AC/DC Digital Multimeter

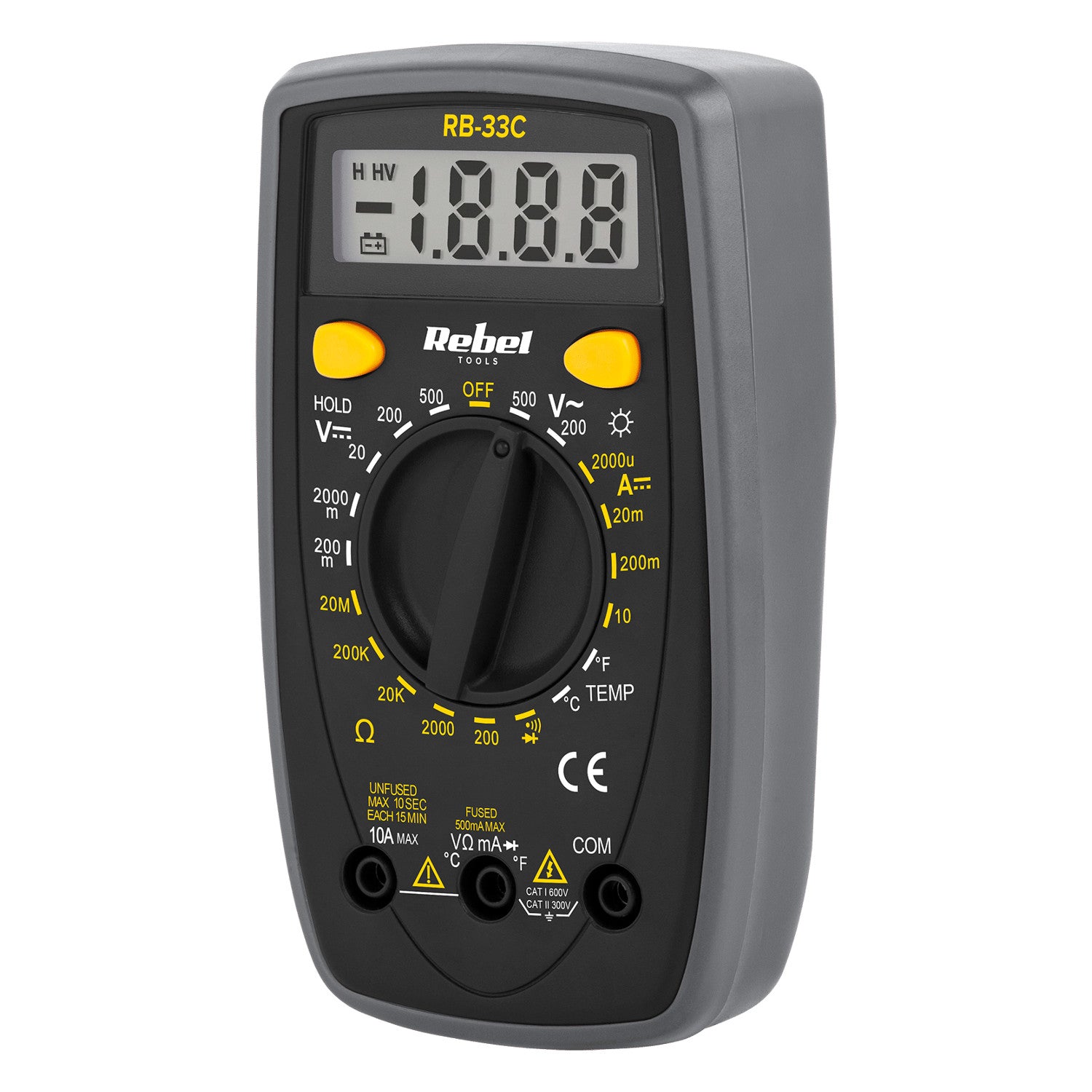

REBEL RB-33C MULTIMETER
The REBEL RB-33C multimeter is a precision measuring tool ideal for both home and professional use. Equipped with a wide range of measurement capabilities and practical features, the RB-33C is an invaluable tool for diagnosing and maintaining electrical systems and electronic devices.
VERSATILE MEASUREMENT RANGES
The REBEL RB-33C allows for the measurement of direct current (DC) voltage in ranges from 200 mV to 500 V and alternating current (AC) voltage up to 500 V, making it a versatile tool for working with various circuits. Its ability to measure direct current (DC) up to 10 A and resistance up to 20 MOhm allows for precise monitoring and analysis of electrical parameters. Additionally, the meter offers diode testing, circuit continuity testing, and temperature measurement using the included Type K thermocouple.
PRACTICAL AND INTUITIVE FEATURES
The RB-33C is equipped with a backlit display that makes it easy to read results even in low-light conditions. The last reading hold function allows for easy recording of readings, which is particularly useful when working in challenging conditions. The meter offers manual measurement range selection, allowing for precise adjustment to the user’s specific needs.
Specification:
- DC voltage: 200 mV, 2000 mV, 20 V, 200 V, 500 V
- AC voltage: 200 V, 500 V
- DC current: 2000 µA, 20 mA, 200 mA, 10 A
- Resistance: 200 Ohm, 2000 Ohm, 20 kOhm, 200 kOhm, 20 MOhm
- Diode test
- Circuit continuity test
- Temperature measurement
- Backlit display
- Manual measurement range selection
- Fold-out stand
- Last reading hold
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
- Display size: 45 x 21 mm
- Operating temperature: 0°C ~ 40°C at humidity <80%
- Storage temperature: -10° ~ 50°C at humidity <85%
- Power supply: 9 V battery
- Dimensions: 160 x 76 x 32 mm
- Weight: 150 g
Set contains:
- Rebel RB-33C Digital Multimeter

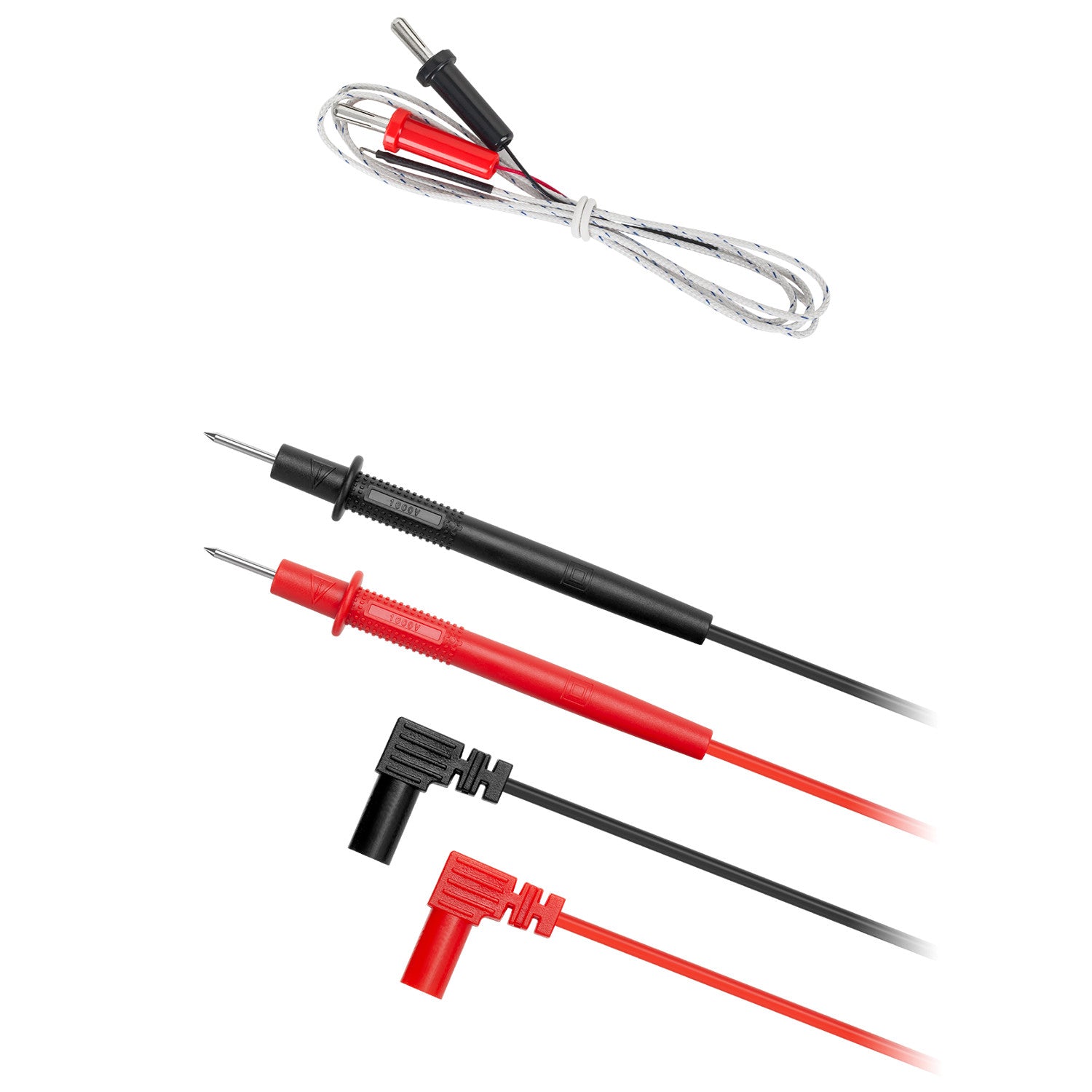

- Test leads
- Type K thermocouple
- User manual
- Manufacturer's packaging
ERGONOMIC DESIGN AND PORTABILITY

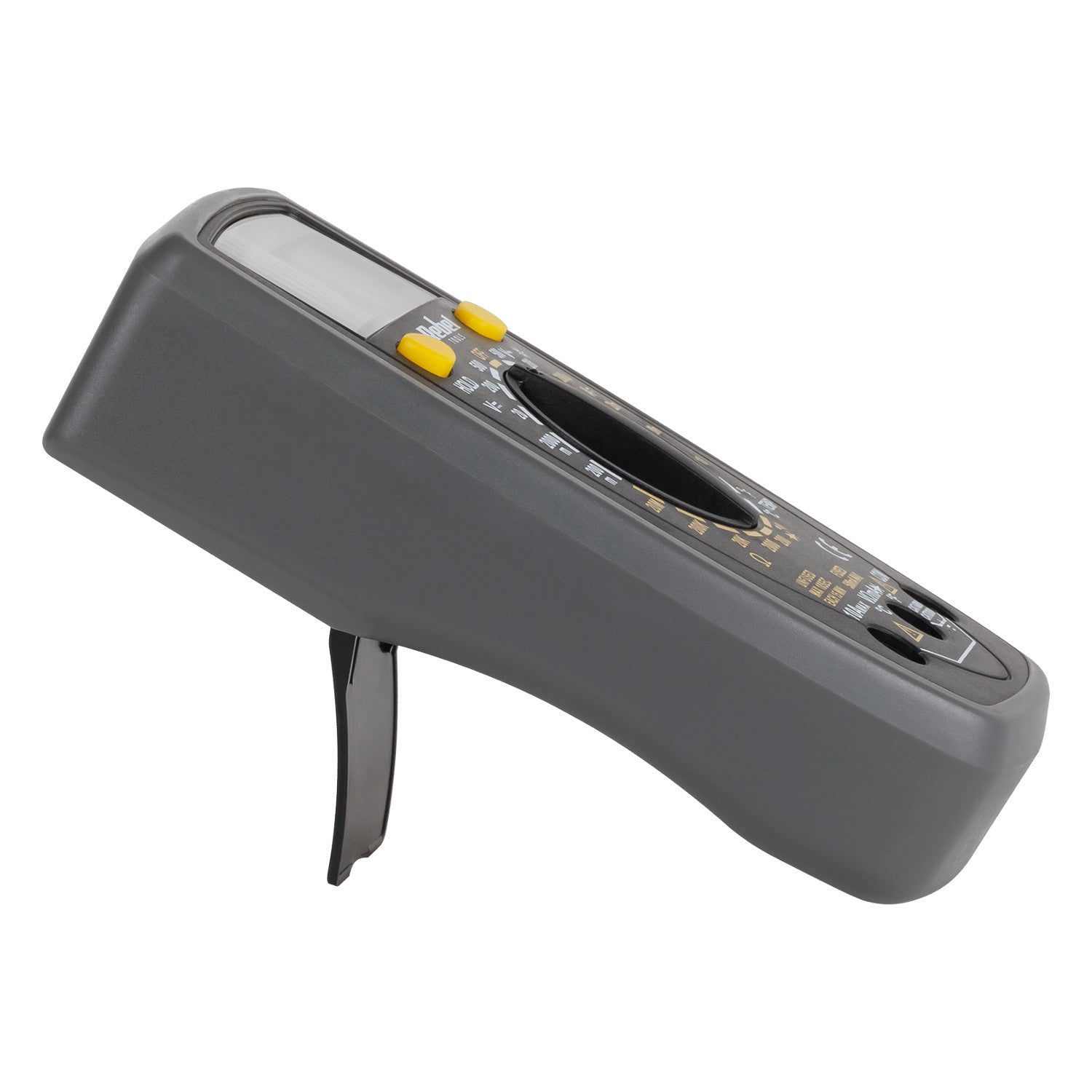

Its compact size (160x76x32 mm) and light weight (150 g) make the REBEL RB-33C meter easy to carry and use. The fold-out stand ensures stability during operation, and the low-battery indicator alerts you when the battery needs to be replaced, preventing unexpected downtime. The meter is powered by a standard 9 V battery, ensuring a long operating time.
- DC voltage measurement: 200 mV, 2000 mV, 20 V, 200 V, 500 V
- AC voltage measurement: 200 V, 500 V
- Diode test
- Circuit continuity check
- Temperature measurement
- Backlit display
- Manual measurement range selection
- Fold-out stand
- Freeze last reading
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Display size: 45 x 21 mm
