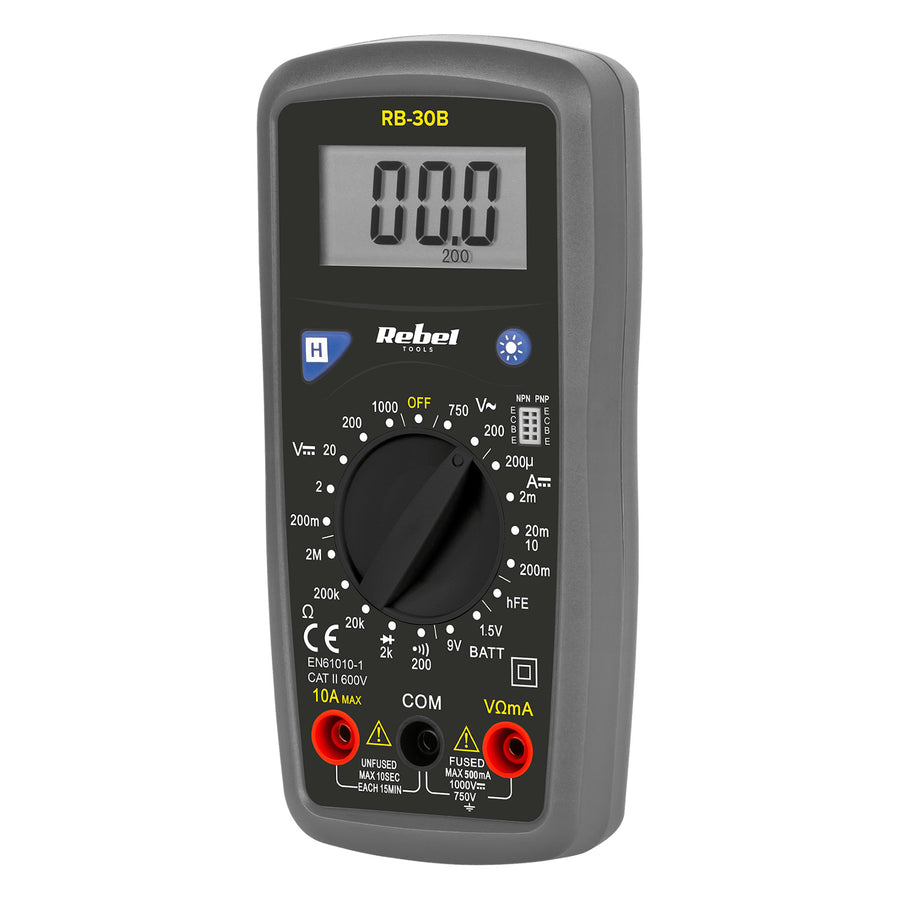

Rebel Tools RB-30B universal multimeter meter
REBEL RB-30B universal meter is a reliable measuring tool, ideal for professionals and do-it-yourselfers. Thanks to its wide measuring capabilities and ergonomic design, it allows precise diagnostics of electrical installations and electronic devices, both at home and in professional applications.
The REBEL RB-30B offers wide measurement ranges for various electrical parameters. Measuring direct voltage (DC) from 200 mV to 1000 V and alternating voltage (AC) up to 750 V allows it to work with a variety of circuits. The meter also supports DC current measurement up to 10 A and resistance up to 2 MOhm, making it a versatile tool for analyzing and repairing electrical equipment. In addition, functions for diode testing, battery testing (1.5V and 9V), hFE transistor checking and circuit continuity add to its functionality.
RB-30B is equipped with a backlit display that makes it easy to read the results even in low light. A freeze last indication function allows you to stop the measurement, which is especially helpful in situations requiring data analysis. Manual change of measurement ranges gives the user full control over the precision of measurements, and a low battery indicator ensures continuous operation.
Specification:
- DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V ±(1%+5)
- AC voltage: 200 V, 750 V ±(2%+10)
- DC current: 200 µA, 2 mA, 20 mA, 200 mA, 10 A ±(2%+10)
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm ±(1%+4)
- Battery test: 1.5 V, 9 V
- Diode test
- HFE transistor test
- Circuit continuity check
- Backlit display
- Manual change of measurement ranges

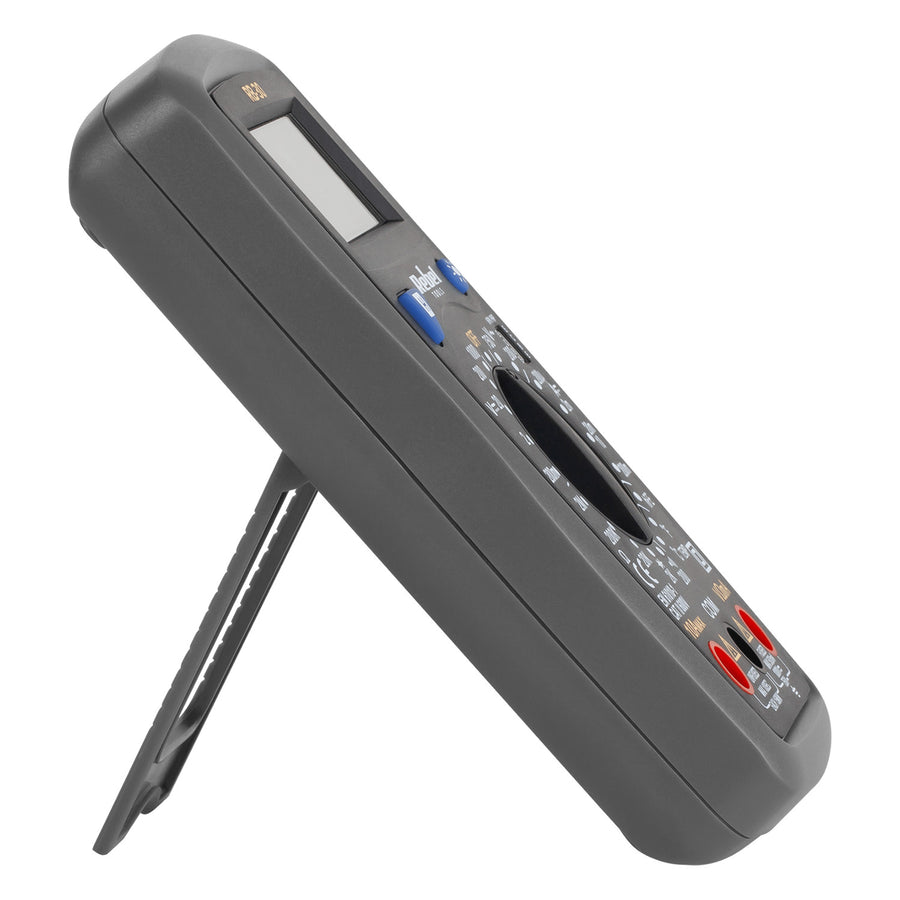

- Fold-out stand
- Freeze last indication
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
- Display size: 45 x 21 mm
- Operating temperature: 0°C ~ 40° at <80% humidity
- Storage temperature: -10° ~ 50°C at <85% humidity
- Power supply: 2x AAA batteries
- Dimensions: 160 x 76 x 32 mm
- Weight: 150 g.
Set contains:
- REBEL RB-30B digital universal meter

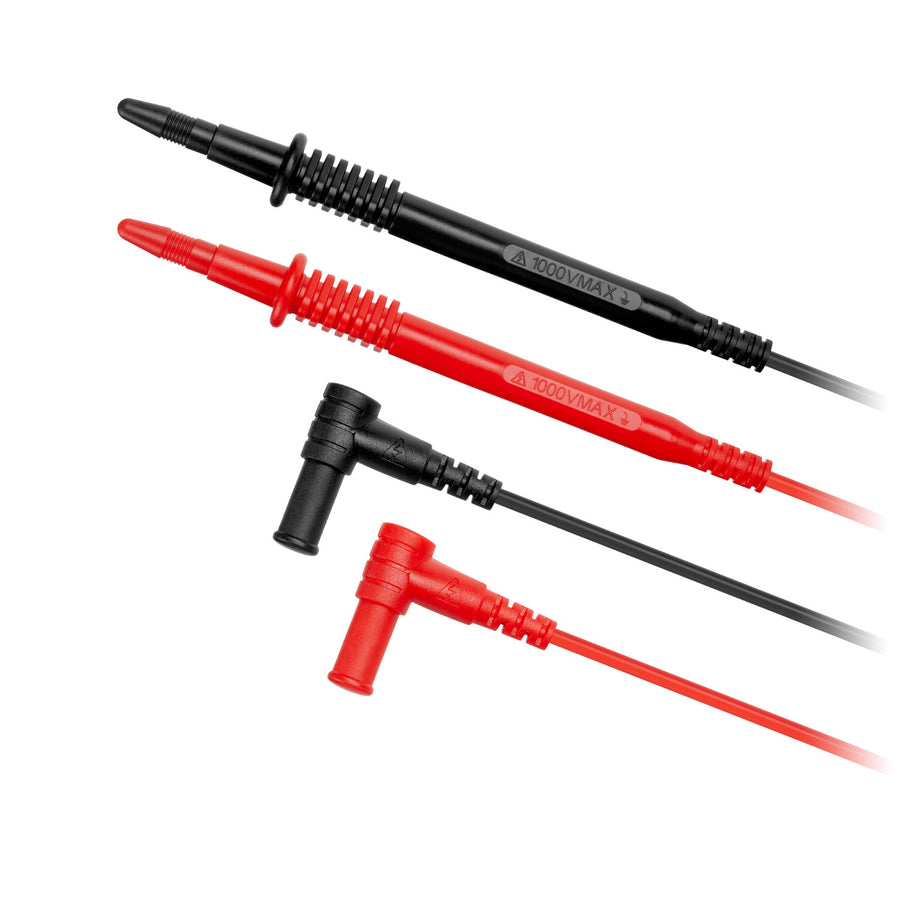

- Test leads
- Operating manual

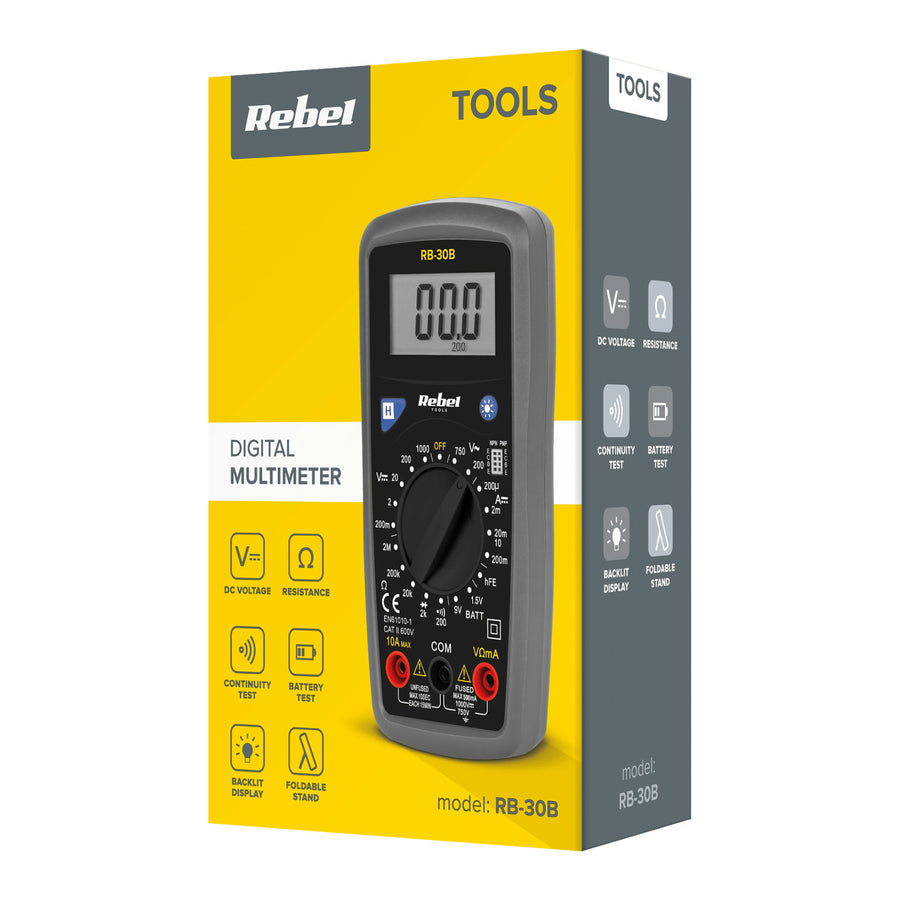

- Manufacturer's packaging
The REBEL RB-30B meter features compact dimensions (160 x 76 x 32 mm) and a lightweight design (150 g), making it easy to carry and operate anywhere. The fold-out stand allows the meter to be placed steadily on the work surface, making it more comfortable to use during prolonged work. Powered by two AAA batteries, the meter is energy-efficient and reliable in operation.
- Backlit display
- Manual change of measurement ranges
- Fold-out stand
- Freeze last reading
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
REBEL RB-30B universal meter is a reliable measuring tool, ideal for professionals and do-it-yourselfers. Thanks to its wide measuring capabilities and ergonomic design, it allows precise diagnostics of electrical installations and electronic devices, both at home and in professional applications.
The REBEL RB-30B offers wide measurement ranges for various electrical parameters. Measuring direct voltage (DC) from 200 mV to 1000 V and alternating voltage (AC) up to 750 V allows it to work with a variety of circuits. The meter also supports DC current measurement up to 10 A and resistance up to 2 MOhm, making it a versatile tool for analyzing and repairing electrical equipment. In addition, functions for diode testing, battery testing (1.5V and 9V), hFE transistor checking and circuit continuity add to its functionality.
RB-30B is equipped with a backlit display that makes it easy to read the results even in low light. A freeze last indication function allows you to stop the measurement, which is especially helpful in situations requiring data analysis. Manual change of measurement ranges gives the user full control over the precision of measurements, and a low battery indicator ensures continuous operation.
Specification:
- DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V ±(1%+5)
- AC voltage: 200 V, 750 V ±(2%+10)
- DC current: 200 µA, 2 mA, 20 mA, 200 mA, 10 A ±(2%+10)
- Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm ±(1%+4)
- Battery test: 1.5 V, 9 V
- Diode test
- HFE transistor test
- Circuit continuity check
- Backlit display
- Manual change of measurement ranges
- Fold-out stand
- Freeze last indication
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
- Display size: 45 x 21 mm
- Operating temperature: 0°C ~ 40° at <80% humidity
- Storage temperature: -10° ~ 50°C at <85% humidity
- Power supply: 2x AAA batteries
- Dimensions: 160 x 76 x 32 mm
- Weight: 150 g.
Set contains:
- REBEL RB-30B digital universal meter
- Test leads
- Operating manual
- Manufacturer's packaging
The REBEL RB-30B meter features compact dimensions (160 x 76 x 32 mm) and a lightweight design (150 g), making it easy to carry and operate anywhere. The fold-out stand allows the meter to be placed steadily on the work surface, making it more comfortable to use during prolonged work. Powered by two AAA batteries, the meter is energy-efficient and reliable in operation.
- Backlit display
- Manual change of measurement ranges
- Fold-out stand
- Freeze last reading
- Low battery indicator
- Polarity: automatic
- Sampling frequency: 2 times per second
- Maximum reading: 1999
