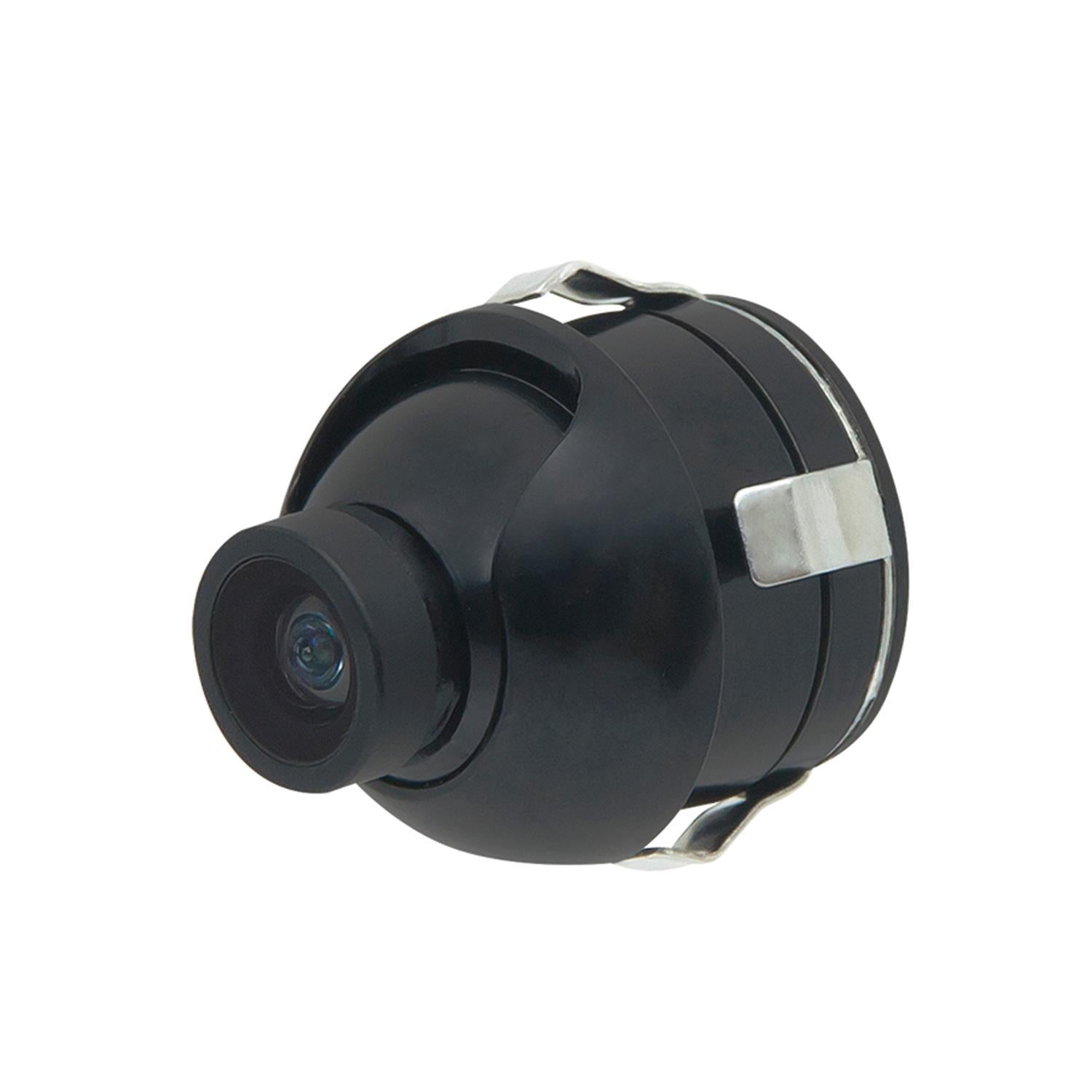

Reversing camera BLOW BVS-545 Wired type. 648x488
This product is out of stock. Check similar products in Other.
The reversing camera is a modern system designed for motor vehicles. It checks the space behind the vehicle during reversing procedures. The device assists during reversing, but does not relieve the driver from the special attention required during reversing. The set is adapted for mounting in passenger cars and delivery vans.
Specification:
- Image sensor: 1 / 3.6 in. CMOS
- Resolution: 648x488
- Measurement area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Horizontal definition: 480 TV lines
- Minimal lighting: 0.01 lux
- Signal / noise: <48.0 [dB]
- Image sensor angle: 170 °
- Horizontal viewing angle: 120 °
- Vertical viewing angle: 90 °
- Diagonal angle of view: 165 °
- Voltage range: DC 9-15V
- Video output: 1.0Vp-p / 75?
- Working temperature: -20 ~ + 70 ° C, RH 95% Max
- Storage temperature: -30 ~ + 80 ° C, RH 95% Max

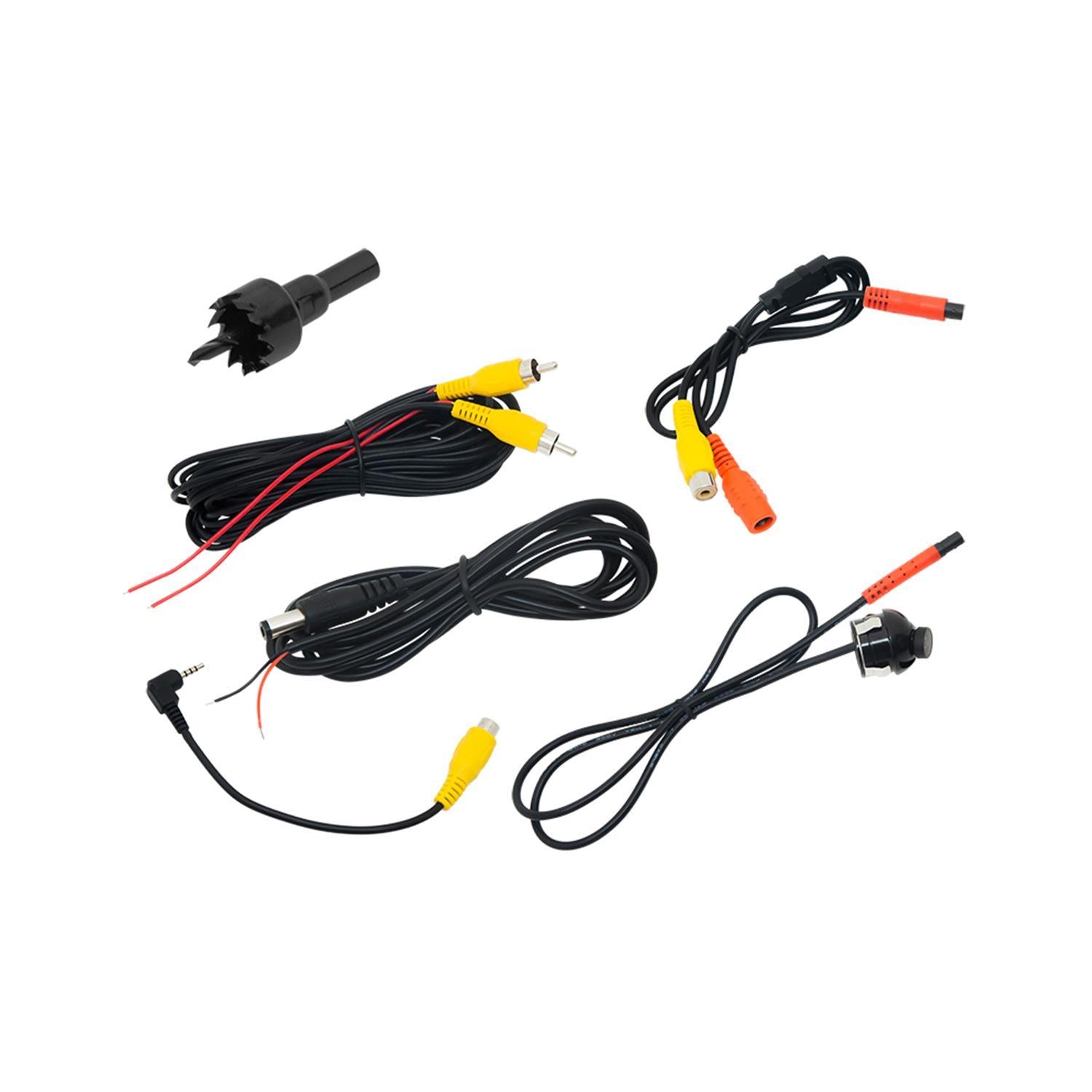

Set contains:
- Reversing camera BLOW BVS-545 Wired
- User manual
- Manufacturer's packaging
- The proof of purchase
- Automatic gain control and backlight adjustment
- Water resistance class: IP67
- Universal application
- High quality
