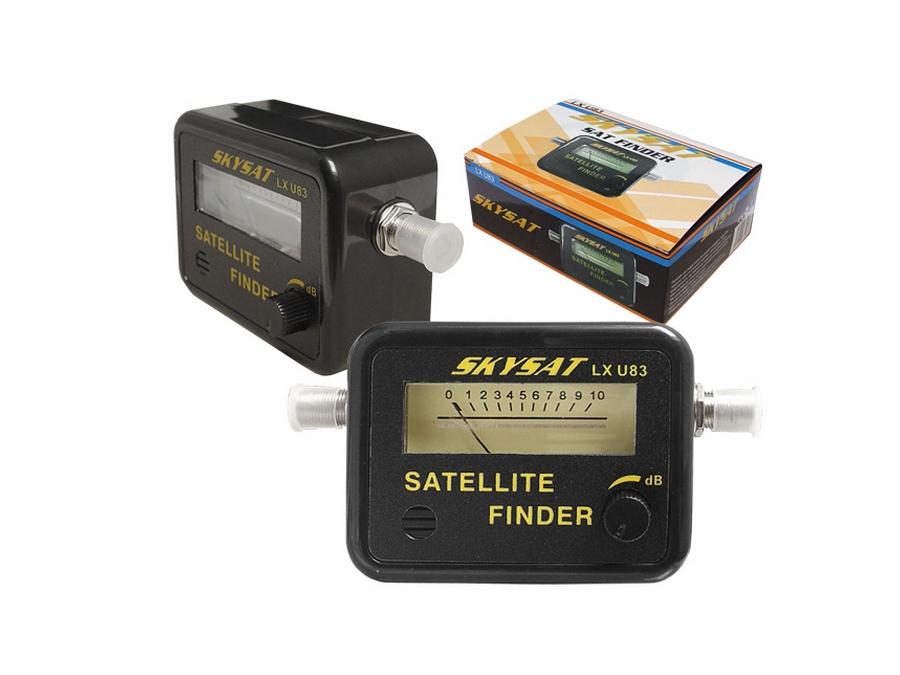

Satellite Skysat
Satellite is a very simple and convenient device for setting the optimal signal level received by the satellite dish. The meter has been equipped with a signal level tilt indicator and a variable sound siren for accurate and fast antenna placement. Thanks to the tilt and sound signal (variable sound modulation), adjustable sensitivity, and very easy control of this device, everyone can easily set the antenna both analog and digital.
Connection and service:
Make sure the satellite receiver is turned off before connecting the unit!
- connect the cable from the LNB satellite converter to the input described as "TO LNB".
- Connect the cable from the satellite receiver to the input labeled "TO REC".
Ensure that the connections are made correctly. Turn on the satellite receiver, the tester scale lights up, the pointer is set to 1.
Pre-set the satellite antenna to the satellite from which the programs will be received.
Use the handwheel located on the front panel of the tester to read the area around the scale 5.
To achieve the maximum level, make a precise set-up of the satellite dish and the LNB converter. If the value reaches the maximum value of the weight, turn the knob.
Check the antenna and the LNB satellite antenna setting at the maximum signal.
Turn off the satellite receiver, disconnect the meter from the measuring path.
Connect the satellite receiver directly to the LNB converter
Specification:
- Has a very readable signal pointer!
- Power supply: DC 13-18V (satellite receiver) or power supply and battery 14.4V
- Reinforcement: 17 dB
- Frequency: from 950 MHz to 2300 MHz
- Range of measured levels: LNB gain 52-60dB
- Sensitivity: 7uV at gain 55dB, 15dB three carrier C / N
- The meter does not require a separate power supply, it is powered directly from the tuner.
Set contains:
- Signal Meter
- User Manual
- Manufacturer's packaging
- Proof of purchase
- This device allows you to precisely position your satellite dish.
- Now you will not have any problems with very precise antenna setup.
- Signal level is measured with direction and sound indicators.
- The higher the sound level, the stronger the satellite signal.
- The device is very easy.
