Volt Sinus Pro 800E 500W 12/230V Uninterruptible Power Supply
SINUS PRO 800 E 12/230V (500W/800VA) Emergency Power Supply The 3SP080012E combines the functions of a pure sine wave DC/AC converter, a UPS emergency power switch, a battery charger, and an AVR mains voltage stabilizer. In the event of a 230VAC power outage, it automatically switches to battery power, ensuring uninterrupted operation of connected devices.
The device is designed, among other things, for central heating systems, central heating furnaces, pumps, controllers, feeders, computers, servers, computer systems, automatic gates, and automation equipment. The pure sine wave output allows for the powering of inductive devices. The color display allows you to monitor the system’s key operating parameters.
The total power is 800VA, and the continuous power is 500W. The device's efficiency exceeds 92%, while the mains/battery switchover time is ≤ 4 ms. The input voltage is 170–270 VAC, and the input frequency is 45–65 Hz. The output voltage is 230 VAC ±1% in battery mode and 216–245 VAC in mains mode with AVR. The output frequency is 50/60 Hz ±1 Hz.
The power supply works with a 12VDC battery, and the maximum charging current is 10A. The battery is not included. It is recommended to use AGM/Gel lead-acid batteries designed for float charging, cyclic charging, and deep discharge. Do not connect automotive batteries or LiFePO4 batteries.
Specification:
- Total (peak) power: 800VA
- Rated (continuous) power: 500W
- Efficiency: over 92%
- Mains/battery switchover time: ≤ 4 ms
- Input voltage: 170–270 VAC
- Input frequency: 45–65 Hz
- Output voltage: 230VAC ±1% in battery mode / 216–245VAC in mains mode with AVR
- Output frequency: 50/60Hz ±1Hz
- Output voltage waveform: pure sine wave
- Battery: not included
- Battery voltage: 12 VDC
- Max. charging current: 10 A
- Charging current selection (5/10 A): yes
- Protections: overload, over-temperature, overvoltage and undervoltage, battery discharge, short-circuit, and overcharge
- Priority selection button (mains/battery): no
- Operating temperature: 0–40°C
- Device dimensions: 138 x 226 x 155 mm
- Net weight: 4.5 kg
Set contains:
- Sinus Pro 800 E Uninterruptible Power Supply
- User Manual
- Manufacturer's packaging
- A device for providing uninterrupted power to, among other things: central heating systems (central heating furnaces, pumps, controllers, feeders, etc.), computers, servers, computer systems, automatic gates, and automation equipment
- Generates a sinusoidal output voltage identical to that of the utility grid
- Switches to battery mode in the event of a power outage

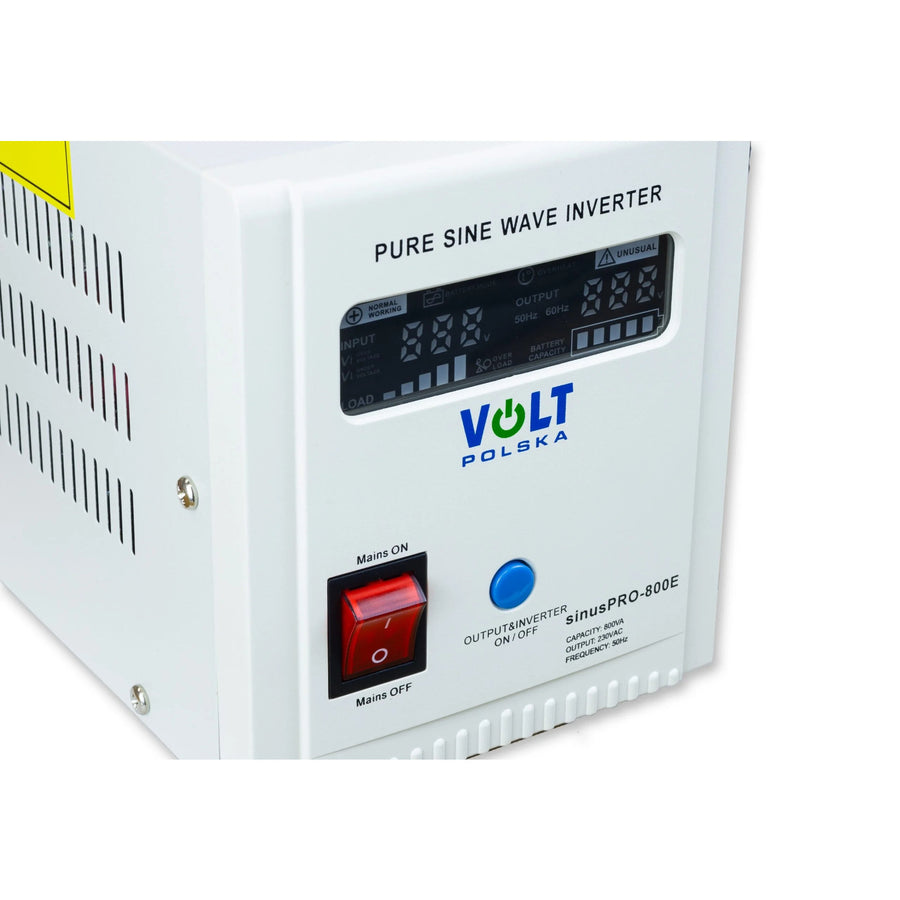

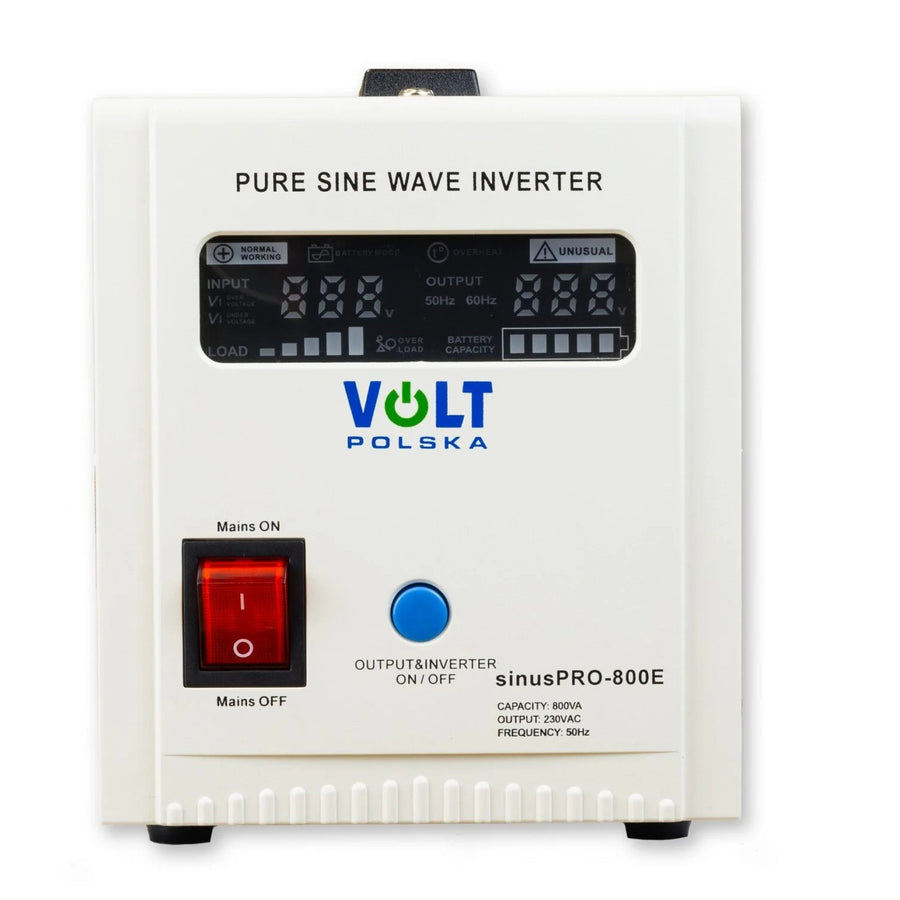

- A color display allows you to monitor the system’s key operating parameters
- Compatible with a 12VDC battery (not included)
- Continuous power: 500W
