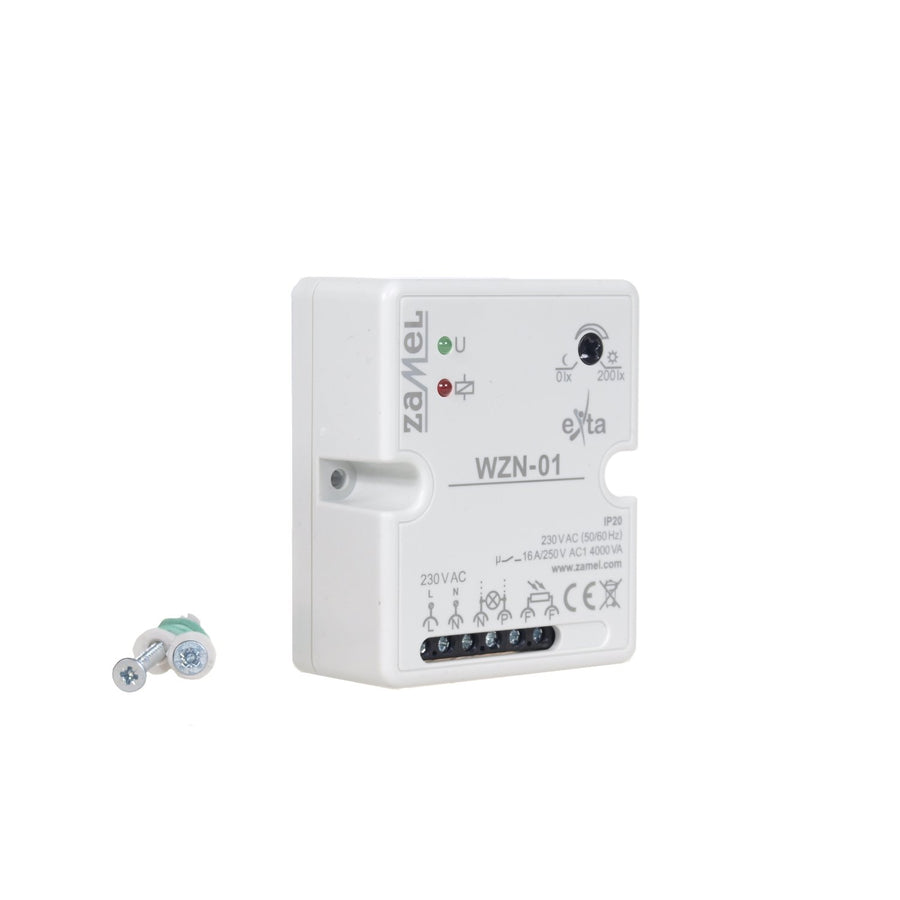

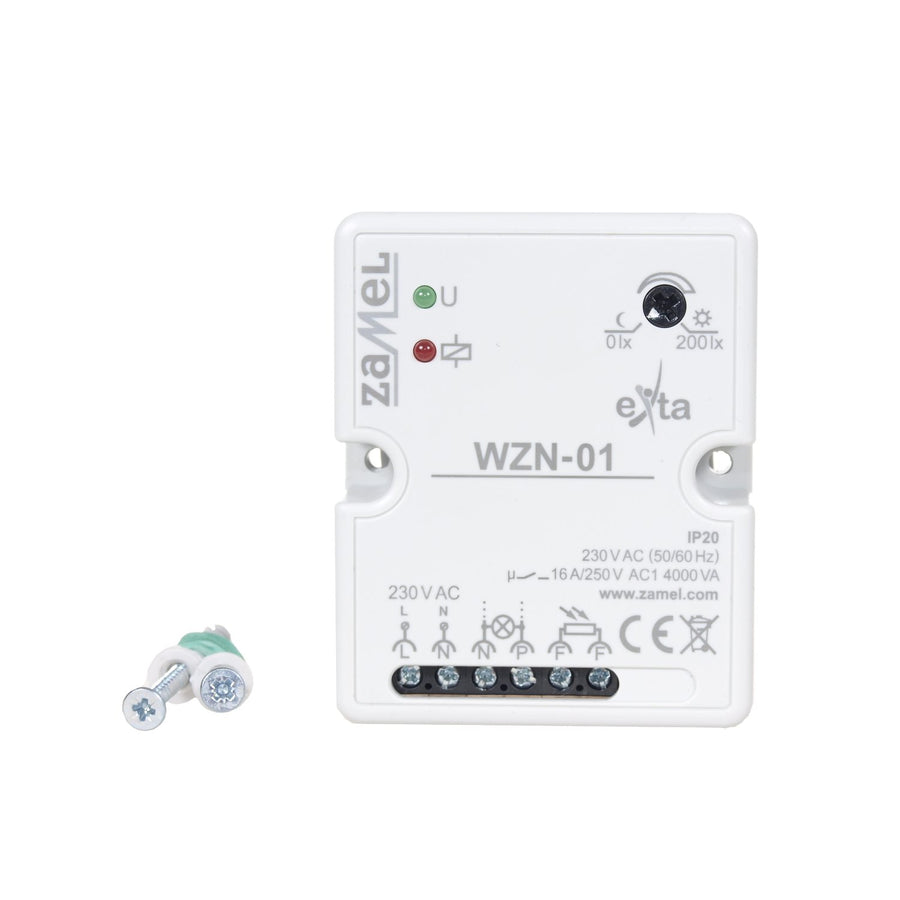

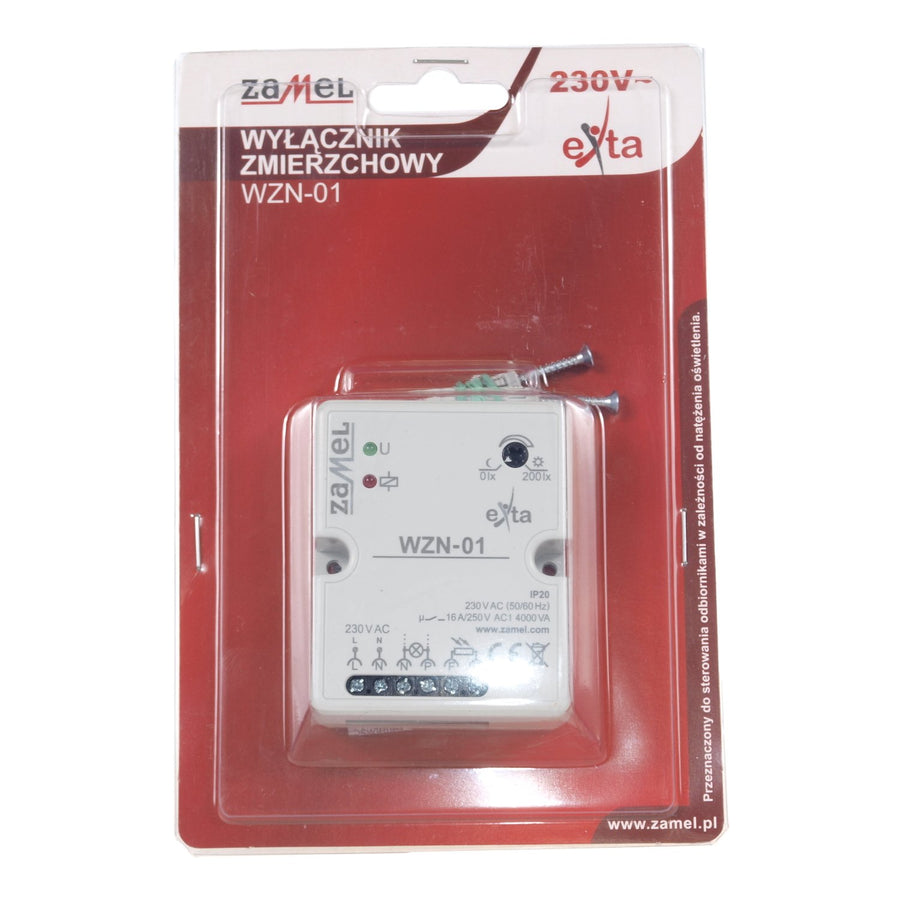

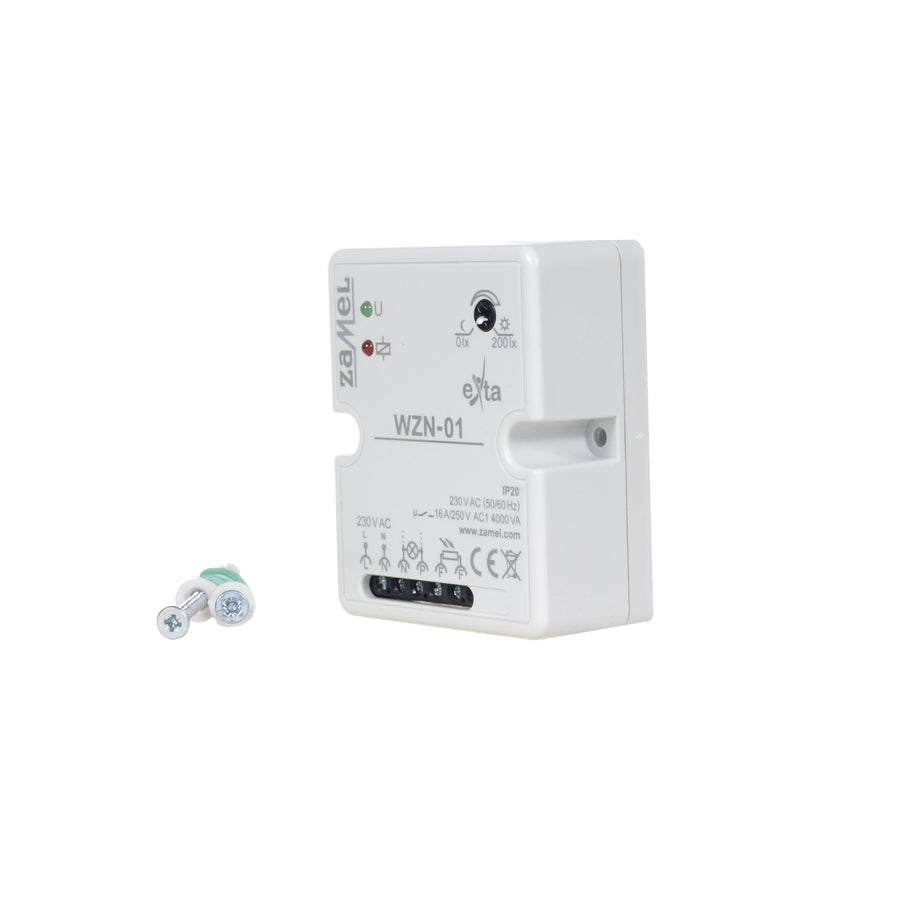

Twilight switch Zamel WZN-01
The WZN-01 twilight switch is used to control lighting devices or other energy receivers depending on the light intensity - switches on the lighting at dusk and switches off at dawn. The switching threshold can be smoothly set by the user. The device is resistant to short-term changes in the intensity of lighting which guarantees reliable operation. The SOH series external light intensity probe with a cable with a maximum length of 50 m makes it possible to place it in convenient places.
Specifikace:
-Dimensions: 69x56x27 mm
Weight: 73 g
-Variable power supply: 230 V AC
- Maximum contact voltage: 250 V
-Category of use: AC1
- Maximum power relay: 4000 VA
- Pin arrangement: 1NO
- relay current: 16 A
-Wave power consumption: 24 mA
- Enclosure protection: IP20
- Fastening of the expansion casing: 6x (3.5 × 35)
- Helpful in saving energy and time
-Automatic detection of dawn and dusk
- Permanent material
-High quality
