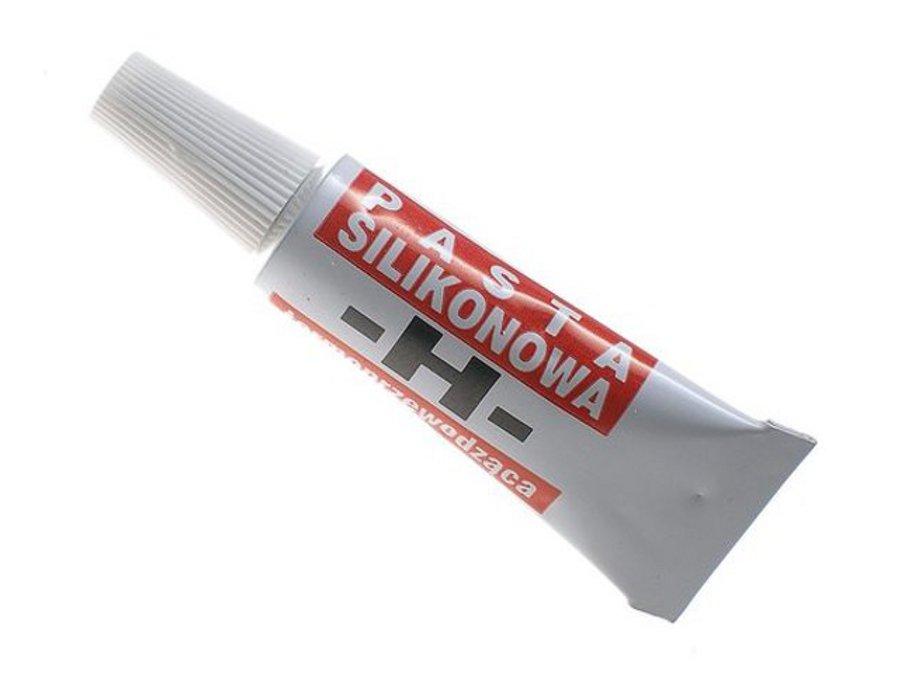

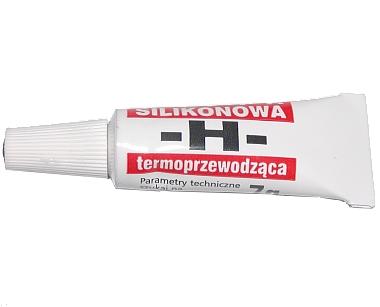

Silicone paste H 7g Heat conductive white Silicone paste H 7g Heat conductive white
SKU: 8782
EAN: 5901764320050
Shipping from £4.64, VAT included.
Express 24h shipping
30-day returns
2-year warranty
Only 3 left in stock
Secure Payments
The paste facilitates heat transfer between the electronic components and the heat sink. It is necessary for the proper functioning of all kinds of temperature sensors, protects against weather conditions and prevents breakthroughs.
The paste has a very good chemical resistance to oxidation; action of aqueous solutions of acids, bases and salts; sulfur dioxide and ammonia. It has a wide temperature range: from –50 ° C to 200 ° C.
Specification:
- Density at 20 ° C: 2.58 g / cm3
Flash point: 350 ° C
- Freezing point: -50 ° C
- Refractive index: 1.405
- Specific heat at 50 ° C: 0.243 Cal / g K.
- Heat transfer coefficient at 0-150 ° C: 0.88 W / m K
- Dielectric constant at 100 Hz: 4.7 (± 0.1)
- Cross resistance: 5 x 10 to the 14 Ohm x cm
- Tangent of the dielectric loss angle at f = 100 Hz: 0.020 (± 0.003)
- Working temperature range: -50 ~ 200 ° C)
- Net weight: 7 g
Set contains:
- Silicone paste H 7g thermally conductive white CHE1502 1672
The paste has a very good chemical resistance to oxidation; action of aqueous solutions of acids, bases and salts; sulfur dioxide and ammonia. It has a wide temperature range: from –50 ° C to 200 ° C.
Specification:
- Density at 20 ° C: 2.58 g / cm3
Flash point: 350 ° C
- Freezing point: -50 ° C
- Refractive index: 1.405
- Specific heat at 50 ° C: 0.243 Cal / g K.
- Heat transfer coefficient at 0-150 ° C: 0.88 W / m K
- Dielectric constant at 100 Hz: 4.7 (± 0.1)
- Cross resistance: 5 x 10 to the 14 Ohm x cm
- Tangent of the dielectric loss angle at f = 100 Hz: 0.020 (± 0.003)
- Working temperature range: -50 ~ 200 ° C)
- Net weight: 7 g
Set contains:
- Silicone paste H 7g thermally conductive white CHE1502 1672
