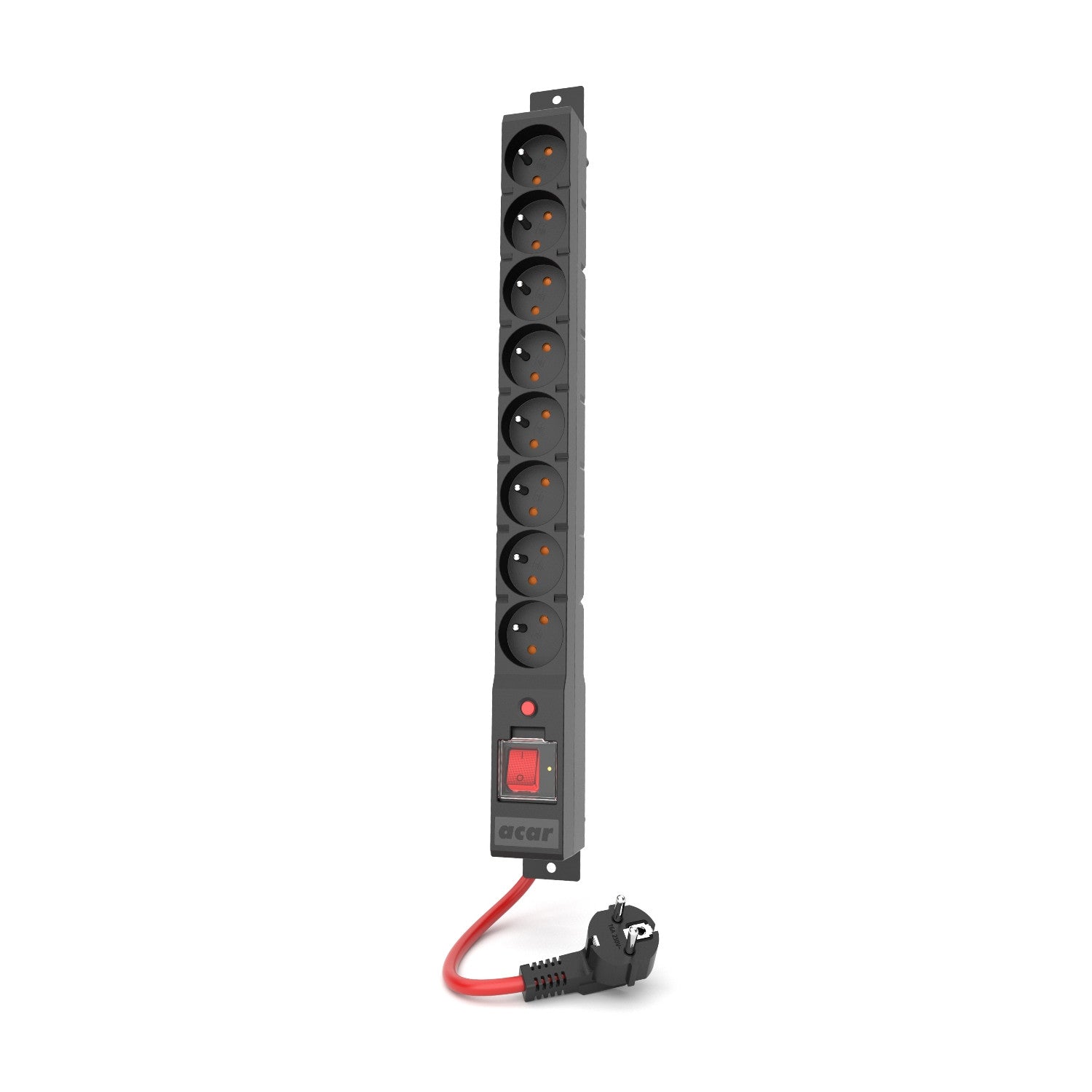

16A Acar R8 POWER surge protection strip 3m
Acar R8 POWER is a 16-amp protection device from the Acar family with enhanced surge protection. The device has eight grounded power outlets, sufficient in most cases to power all loads. It uses a reinforced circuit breaker that is resistant to large current surges that occur, for example, when switching on computer power supplies (desktop and laptop).
The mains switch is equipped with a hinged protective cover to prevent accidental switching. The unit's built-in enhanced surge protection circuit provides protection for all power lines and dissipates surge energy to ground via the PE protective conductor. The device has an indicator of the correct operation of the surge protection system. Mounting brackets are standard equipment of the device.
Specification:
- Permissible load: 3680W
- Cable length: 3m
- Rated voltage: 230V
- Rated frequency: 50Hz
- Rated load current: 16A MAX
- Response time of surge protection system: <25ns
- Maximum voltage: 250V 50Hz
- Protection level: ≤1.3kV
- Rated discharge current: 2kA (L/N; L(N)/PE) - 8/20µs
- Maximum discharge current: 10kA (L/N; L(N)/PE) - 8/20µs (type 2)
- Fuses: one automatic fuse with 16A/250V delayed characteristics
- Electric shock protection system: socket protection pins connected to the protective conductor
- Number of power outlets: 8 bipolar sockets with protective contact 16A/250V
- Circuit breaker: reinforced two-pole illuminated switch resistant to high current surges
- Housing: self-extinguishing plastic
- Dimensions: 444x44x5 2mm
- Weight: ~0.96 kg

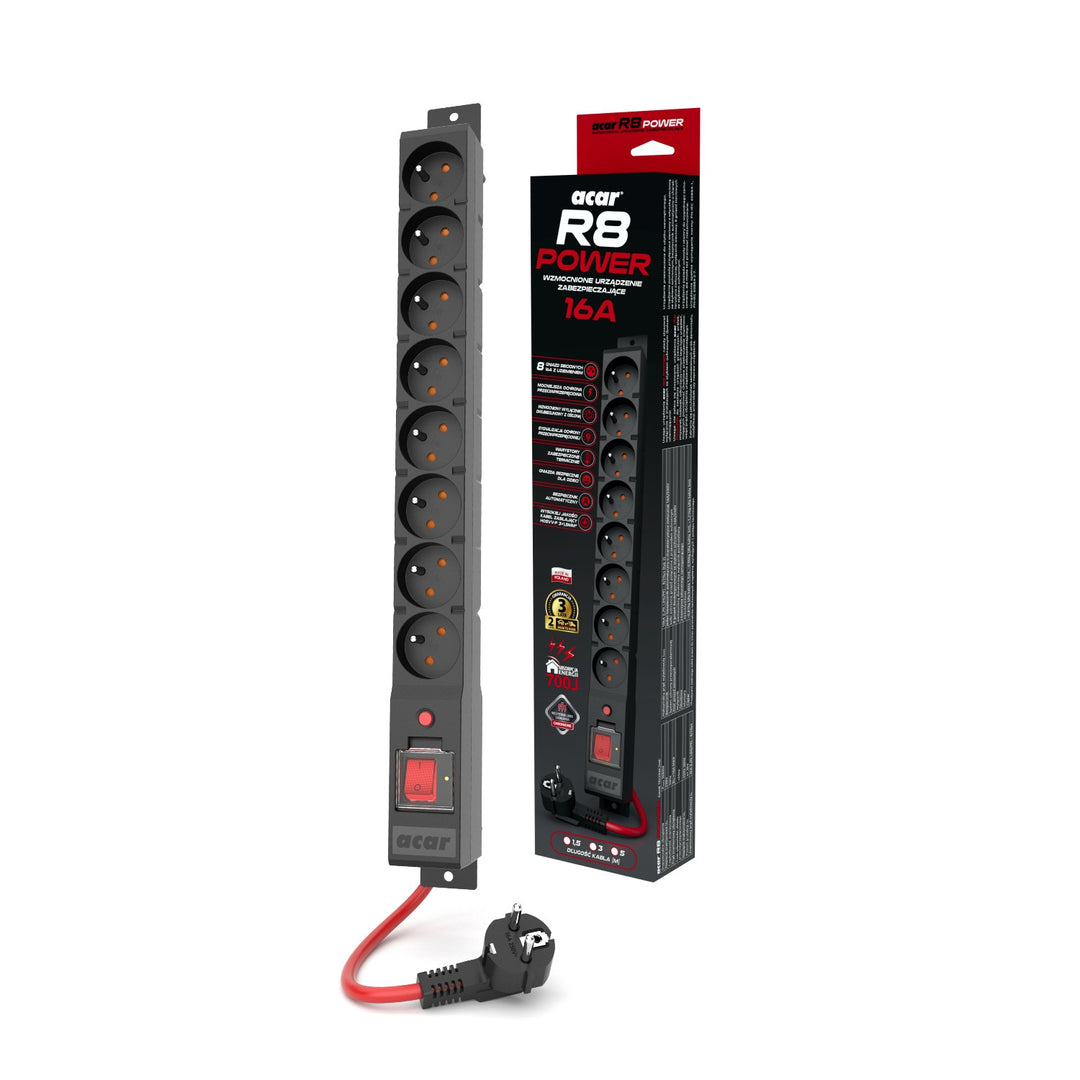

Set contains:
- Reinforced surge protection strip 16A, black 3m W2451
- Reinforced surge protection
- 8 grounded power sockets
- Reinforced circuit breaker
- Tiltable cover to prevent accidental switching
- Indicator for correct operation of surge protection system
- Mounting brackets
- Color: black
- Cable length: 3m
