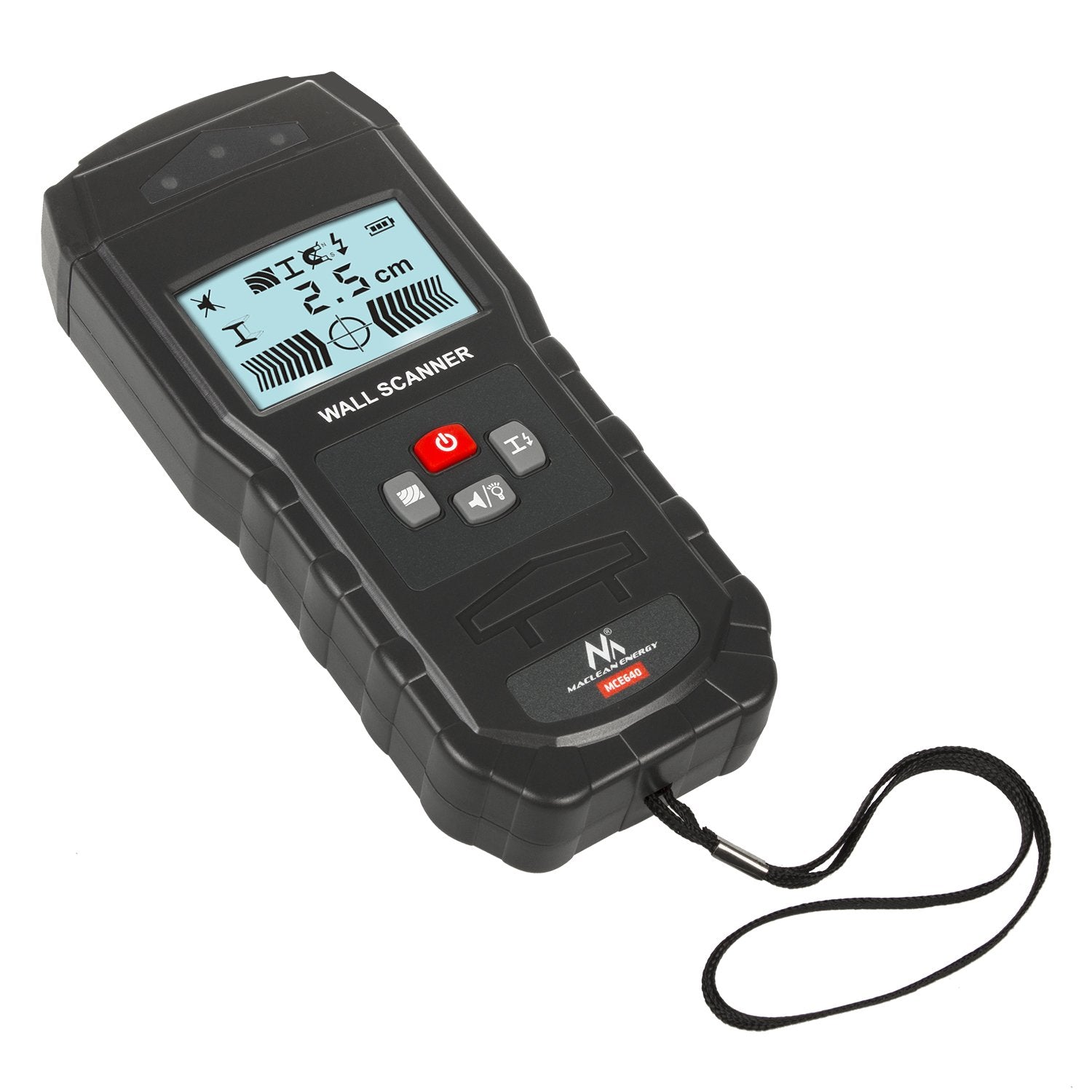

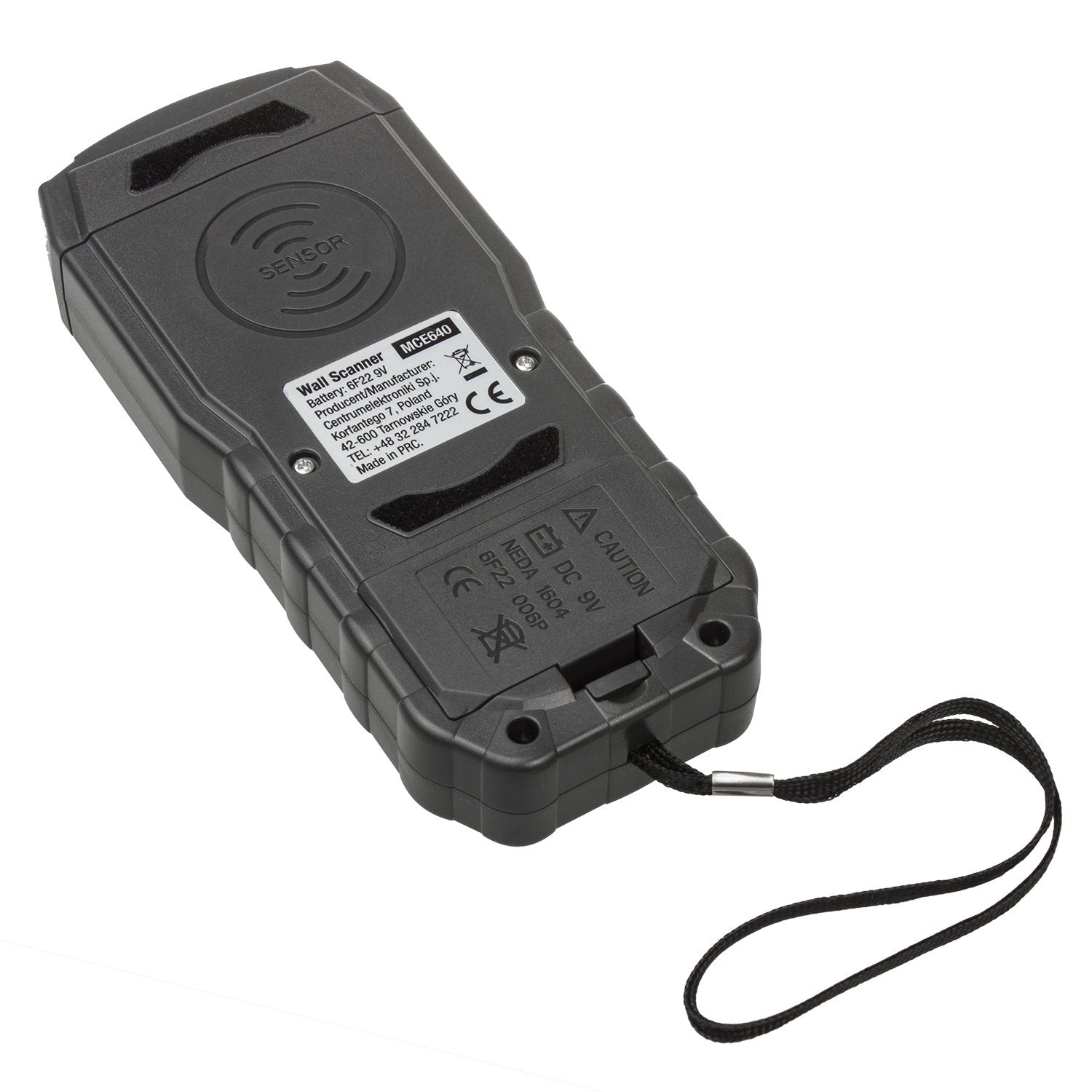

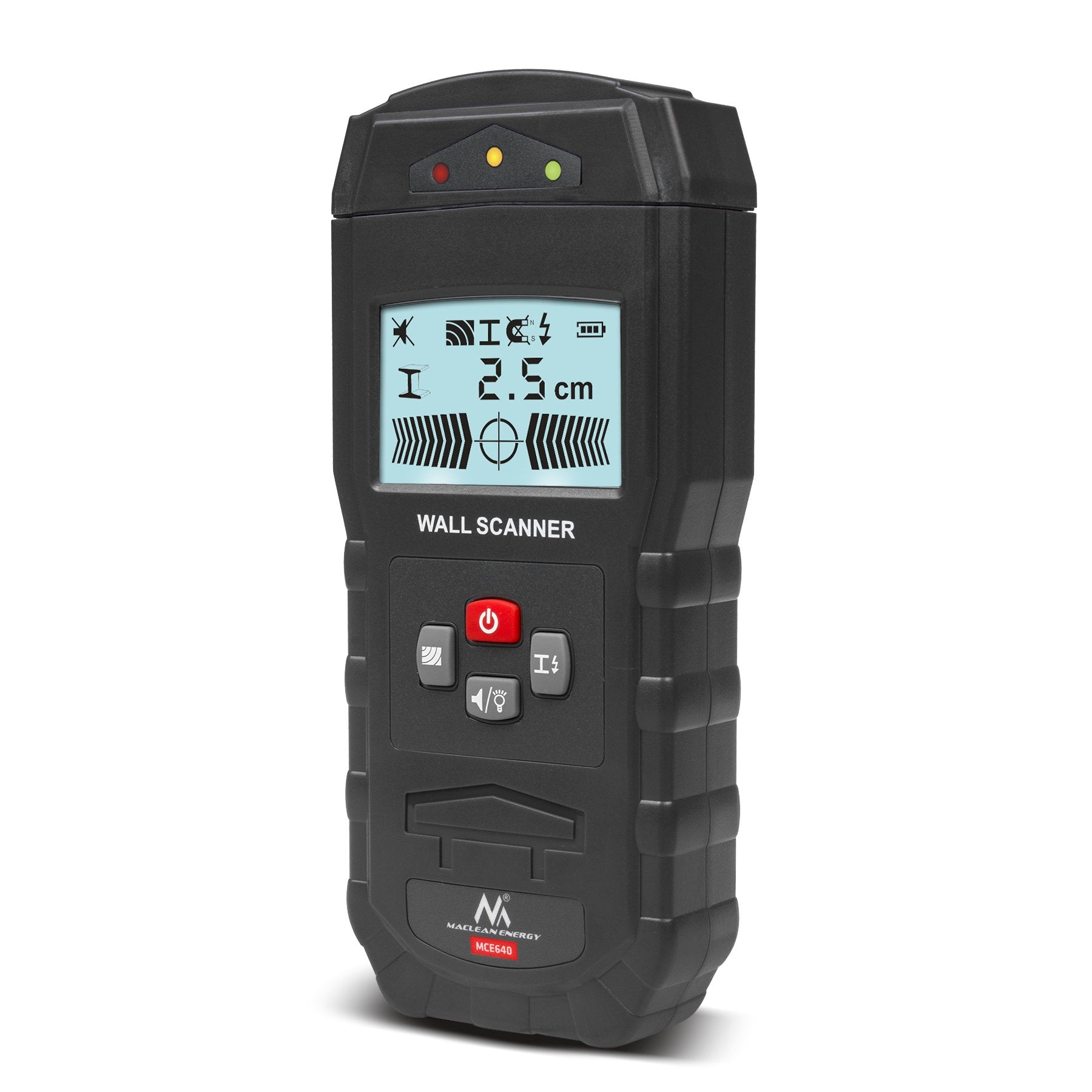

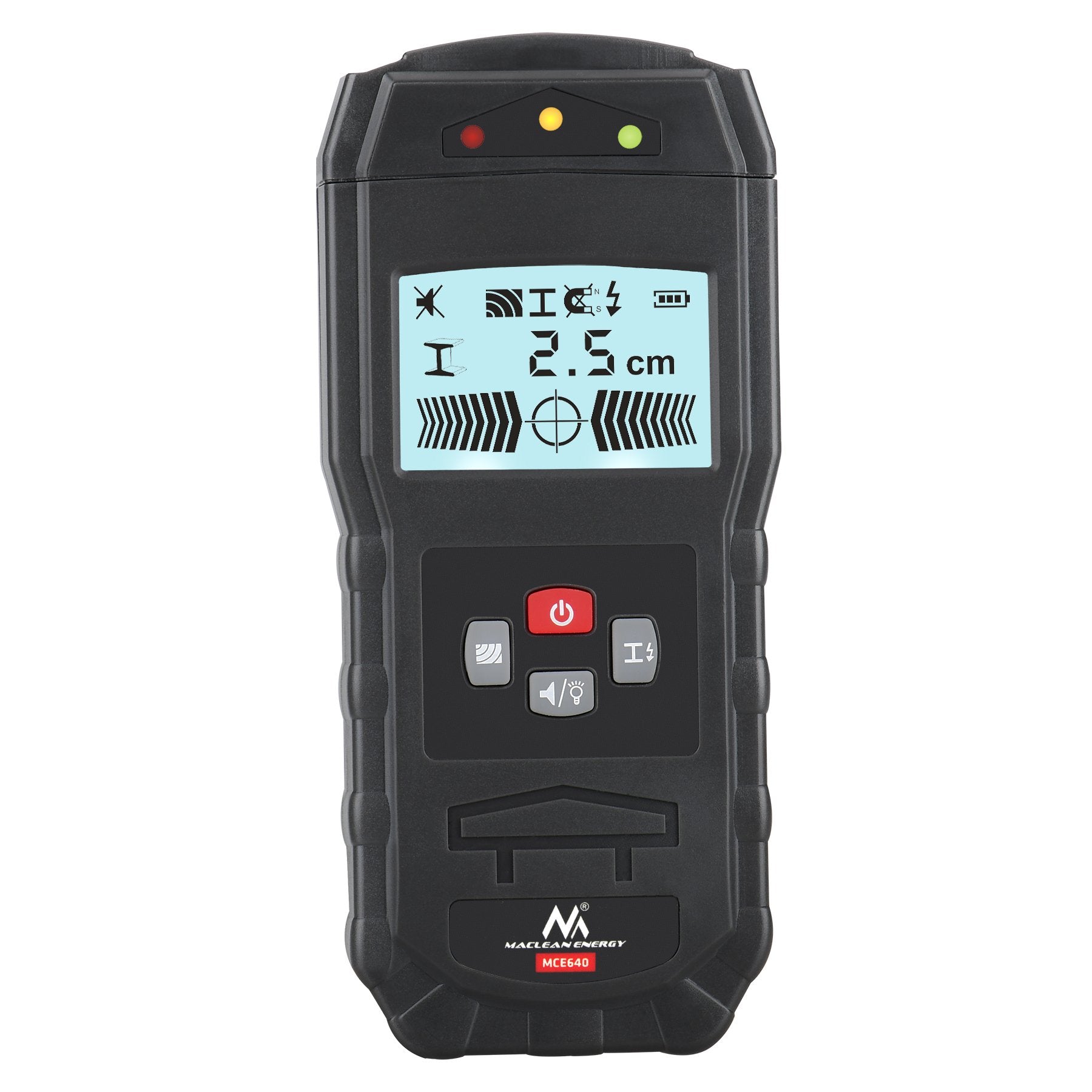

Maclean MCE640 Wall Scanner 3 in 1 Metal Detector
The locator is used to detect metals (ferrous and non-ferrous metals), wooden beams and live cables in walls, ceilings and floors made of conventional concrete, ceramic tiles, wooden panels, etc.
Professional locating device finds its application for electricians and plumbers as well as for do-it-yourselfers.
The detector has compact dimensions and the set includes a carrying case that makes it easy to carry and store the device. Very Easy to Use - The locator has a backlit LCD screen, audio and visual display.
3 operating modes:
-Metal detection:
When metal objects are detected, the red light will illuminate and the sound will be turned off. The closer the detector is to the metal, the stronger the detection signal and the more bars light up. If the detector does not detect any metal objects nearby, the green light will illuminate.
Maximum measuring depth for ferrous metals is 5cm. Non-ferrous metals (copper) are recognized up to 8cm.
-Detection of live cables:
When an AC voltage of 110 to 220 V is detected, the red light will illuminate and the sound will be turned off. The stronger the signal, the more bars light up. If there is no AC power cord near the detection area, the indicator lights green. The detector can detect AC power lines at 50 or 60 Hertz (Hz).
The maximum depth for detecting live wires is 5 cm.
-Wood detection:
When wood is detected, the red light lights up and the sound signal is switched off.
When using capacitance detection, water pipes and other non-wood materials can also produce inductive signals that can affect the results.
The maximum depth for recognizing wood is 2 cm.
Specifikace:
Technical specifications:
- Brand: Maclean
- Model: MCE640
- Automatic switch-off after approx. 5 min
- Working temperature from -10 ° C to 50 ° C
- Storage temperature from -20 ° C to 60 ° C
- Power supply: battery operated
- Battery: 6F22 9V
- Battery life: approx. 6 hours
- Weight 186.5 g (with battery)
- Dimensions 72.0 x 160.6 x 29.5mm
Maximum measuring depth:
- Iron metals: 5cm
- Non-ferrous metals (copper): 8cm
- Copper wires (under tension): 5cm
- Wood: 2cm

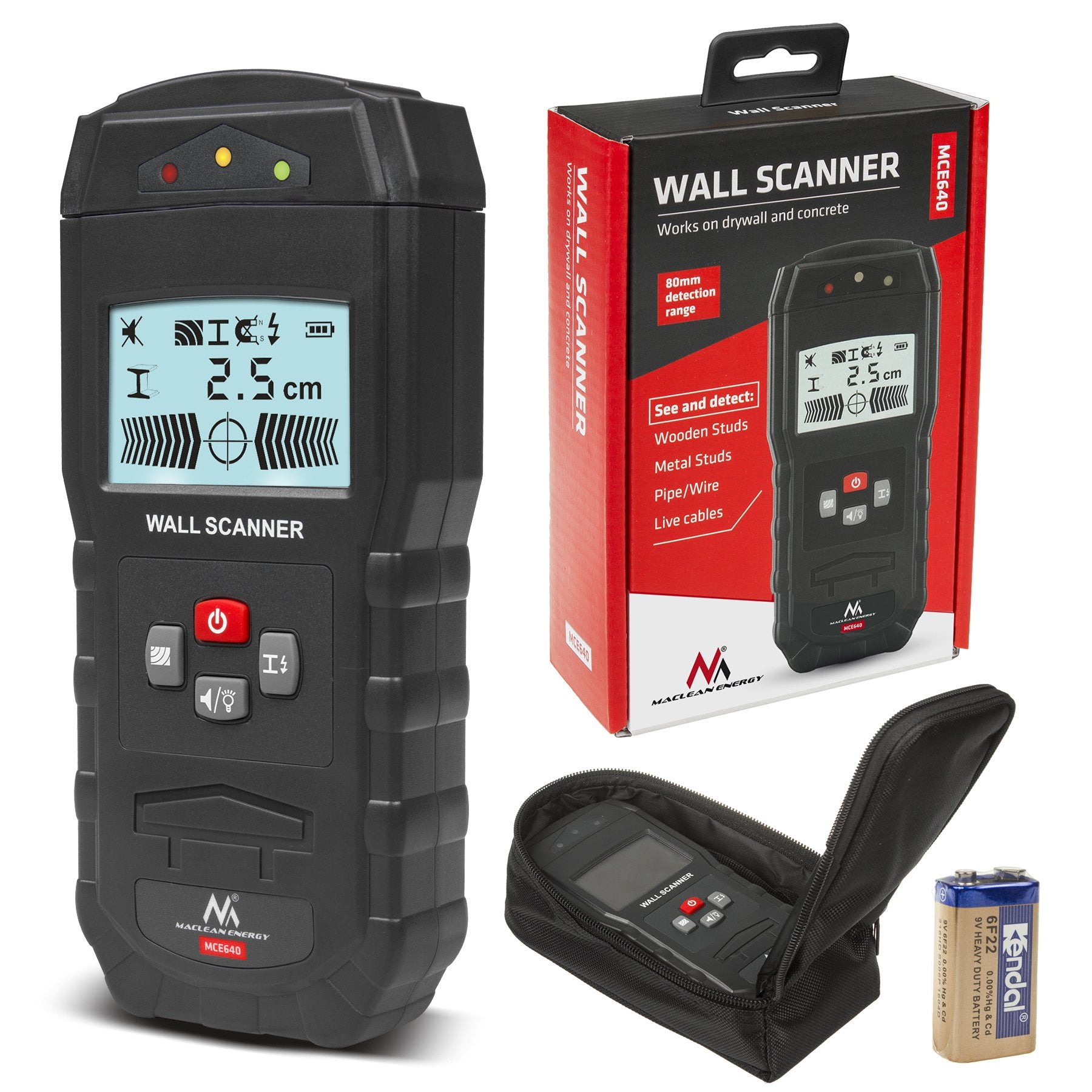

Sada obsahuje:
In set:
- MCE640 tracking device
- Battery: 6F22 9V

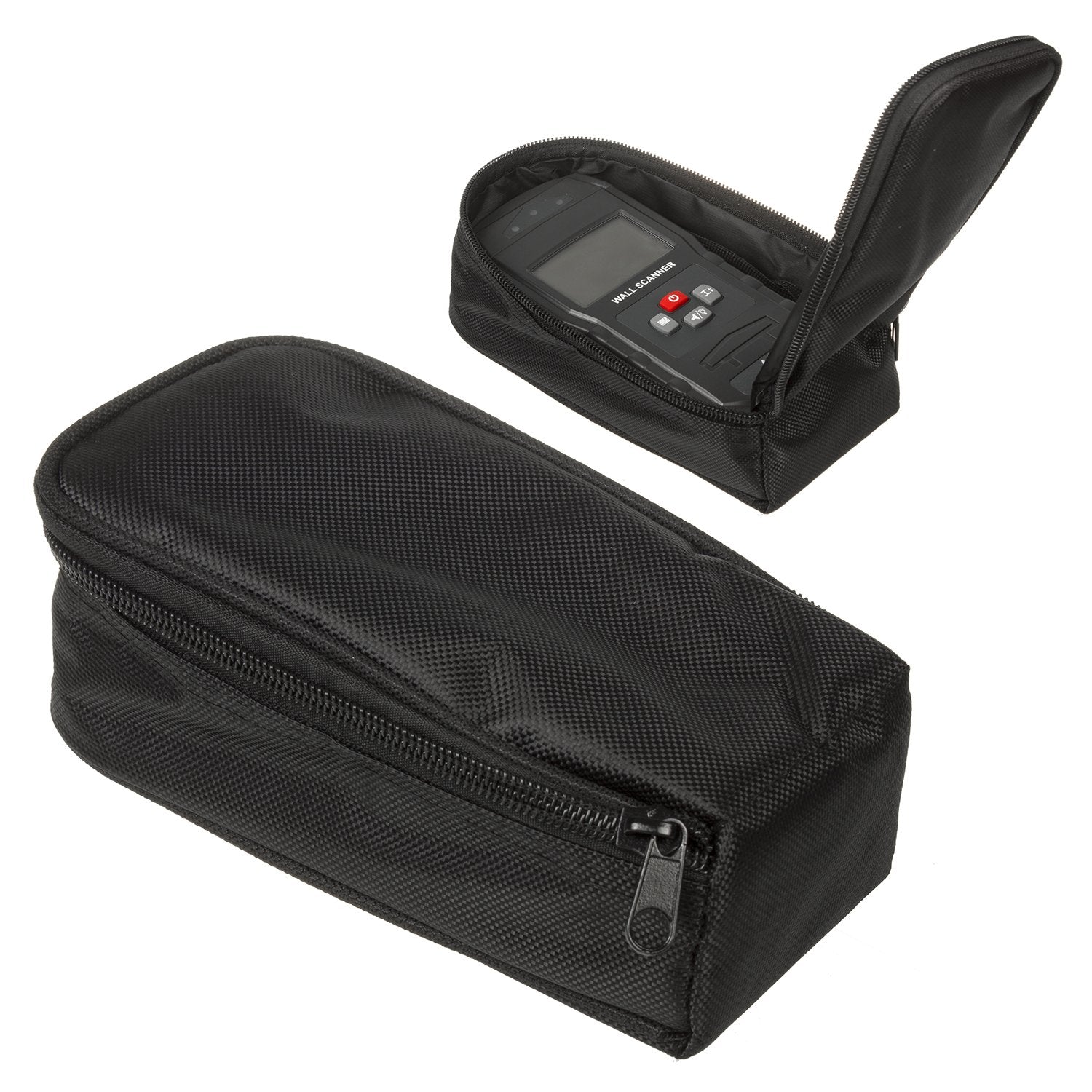

- Carry bag
- User Guide
- The tracking device detects ferrous and non-ferrous metals, wood and live cables that are hidden in walls, ceilings and floors
- 3 operating modes: power line, wood and metal detection
- Red, yellow and green indicator lights ensure safe operation
- Detection range up to 80 mm with precise and reliable position
- Useful device for electricians, plumbers and do-it-yourselfers
- Adjustable volume and mute
- Battery operated - working time approx. 6 hours with a fully charged battery
- Automatic shutdown
- Precise detection and high accuracy
- Easily readable LCD display with backlight
- Compact dimensions and a pocket for convenient storage
