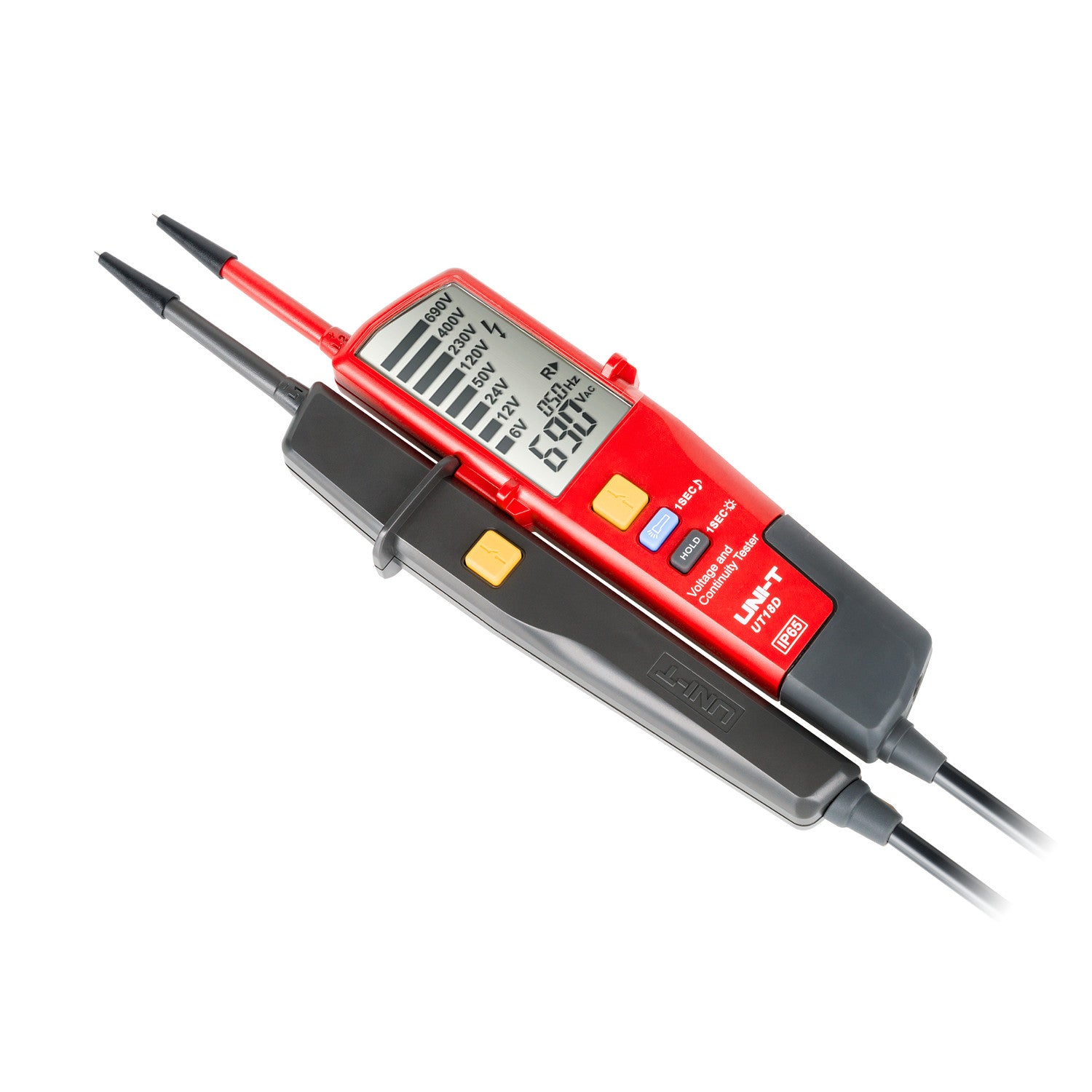

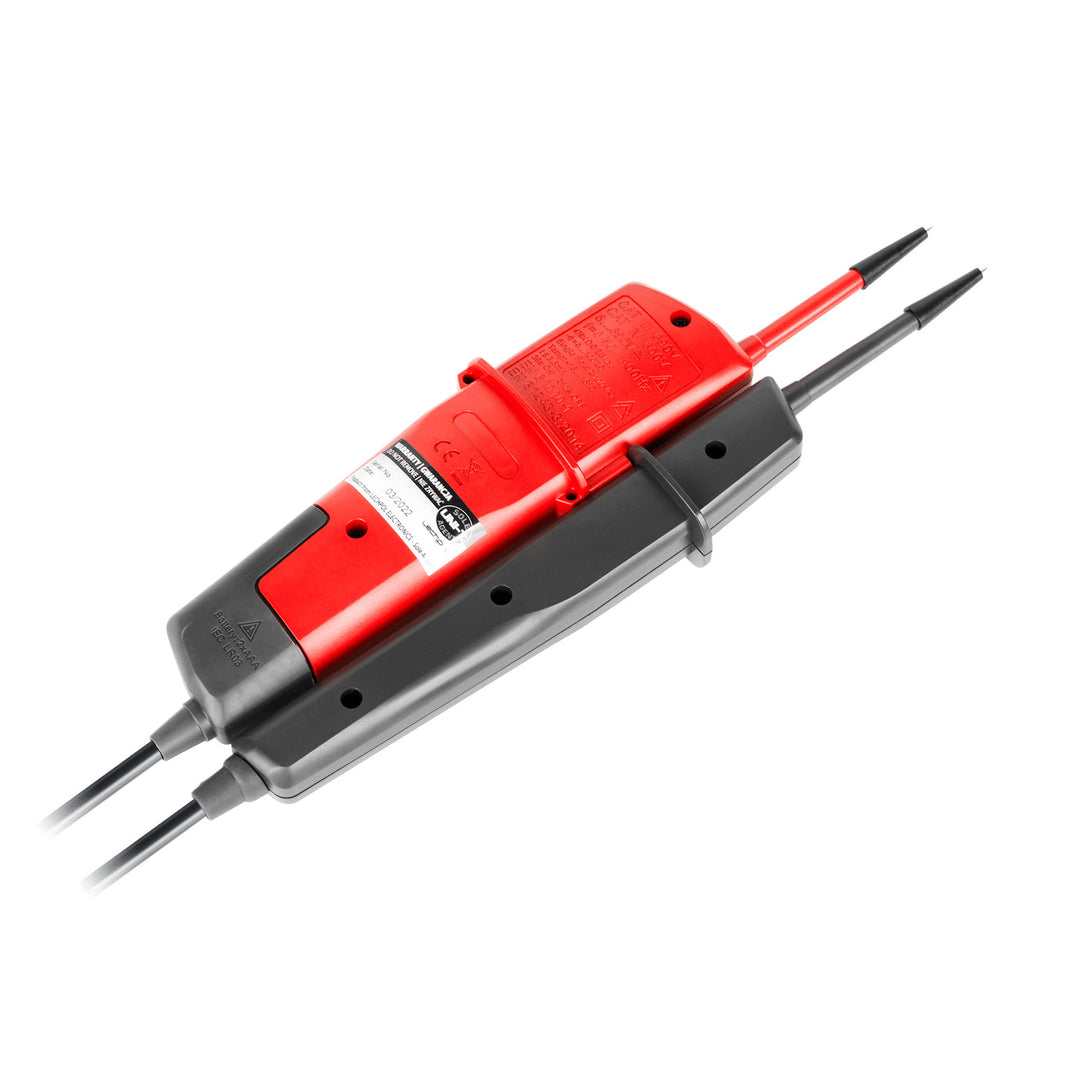

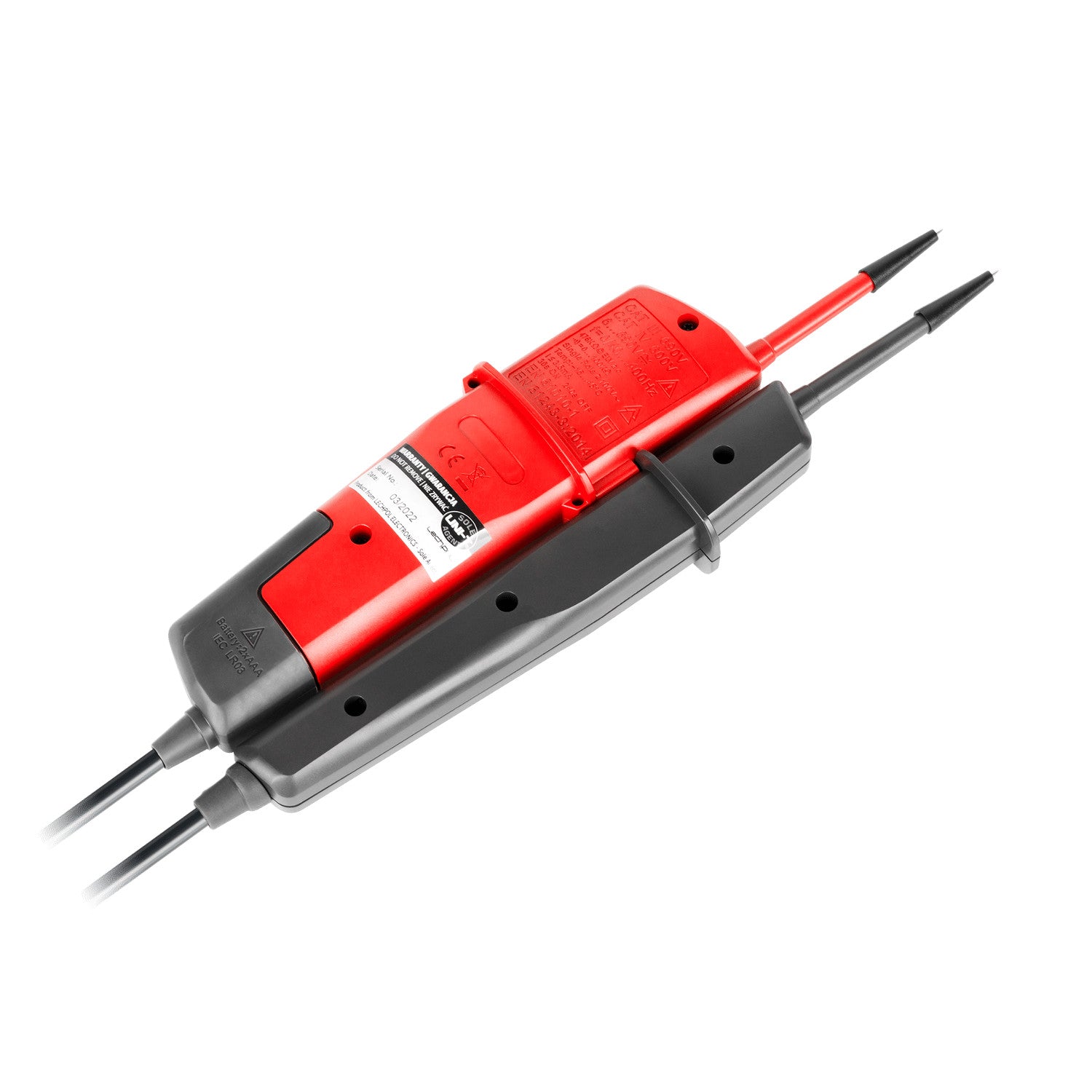

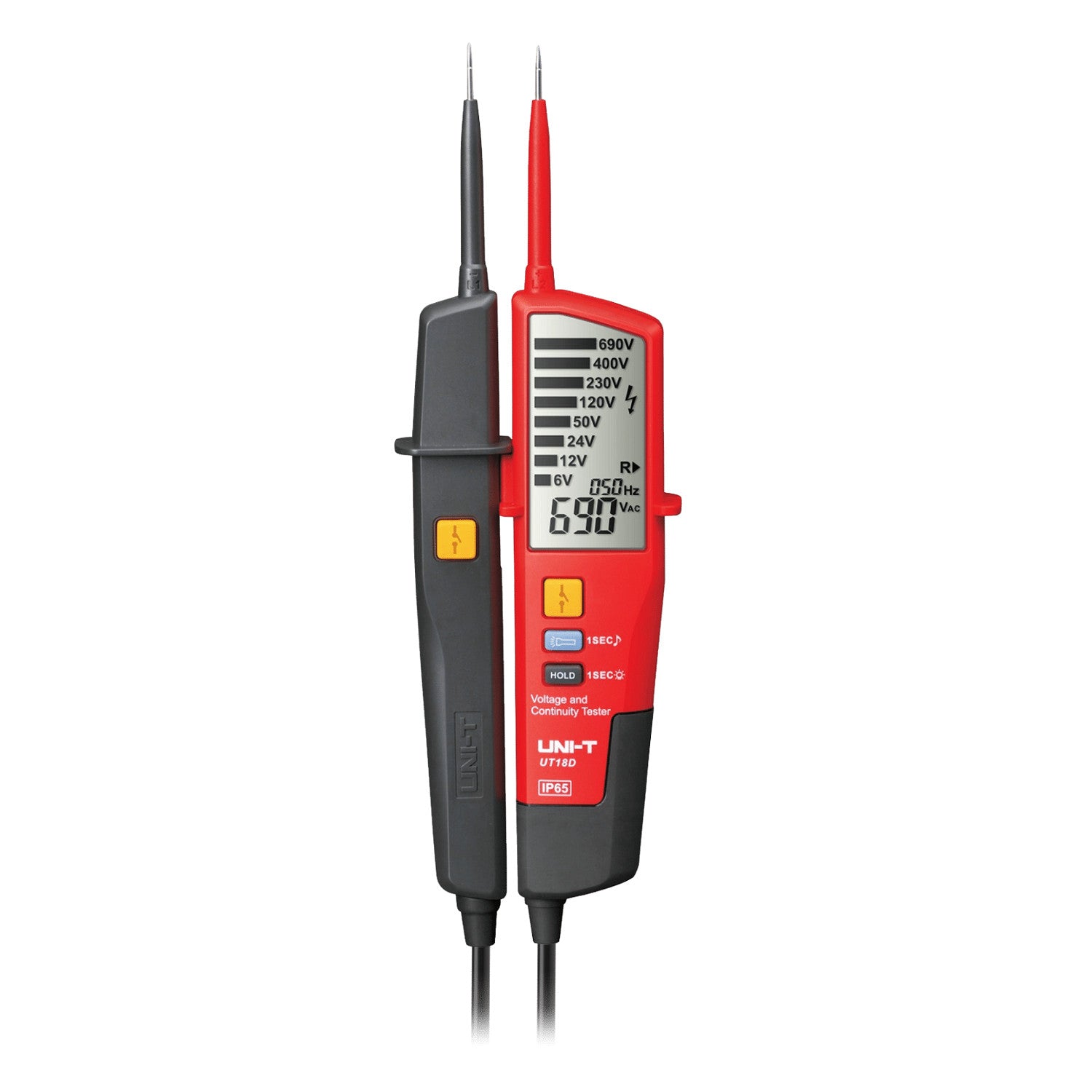

Uni-t UT18D universal voltage tester
The UT18D meter is an advanced measuring tool designed for versatile applications in electrical diagnostics. With its LED indicator and testing functions, it is the ideal choice for fast and accurate voltage measurement and electrical circuit testing in a variety of conditions.MEASURING RANGES AND FUNCTIONALITY The UT18D offers a wide voltage measurement range from 6 V to 690 V with an accuracy of ±(1.5%+5). It also allows for circuit continuity testing up to 100 kOhm and polarity detection, ensuring accurate electrical condition analysis. The RCD testing function and automatic measurement range switching increase its versatility.
ADDITIONAL FEATURES
The meter is equipped with automatic pre-measurement testing functions and low battery and overvoltage indicators. The backlit LCD screen and measurement area illumination ensure comfortable operation in low-light conditions. The last reading freeze function allows for easy recording of measurement results.
Specification:
- LED voltage measurement indicator: ranges: 6 V / 12 V / 24 V / 50 V / 120 V / 230 V / 400 V / 690 V; accuracy: ±(1.5%+5)- Phase sequence test: voltage: 100 ~ 690 V; frequency: 50 ~ 60 Hz
- Circuit continuity test: resistance: 0 ~ 100 kOhm; buzzer and LED indicator
- RCD test: voltage: 230 V; frequency: 50~400 Hz
- Polarity detection: positive and negative
- Automatic measurement range change
- Instrument test before measurement
- Last reading freeze
- Low battery indicator
- Overvoltage indicator
- Automatic standby mode
- Measurement spot illumination
- Backlit LCD screen
- IP65
- Power supply: 2x 1.5 V (R03)
- Display size: 73.5 x 35.5 mm
- Dimensions: 272 x 85 x 31 mm
- Weight: 280 g

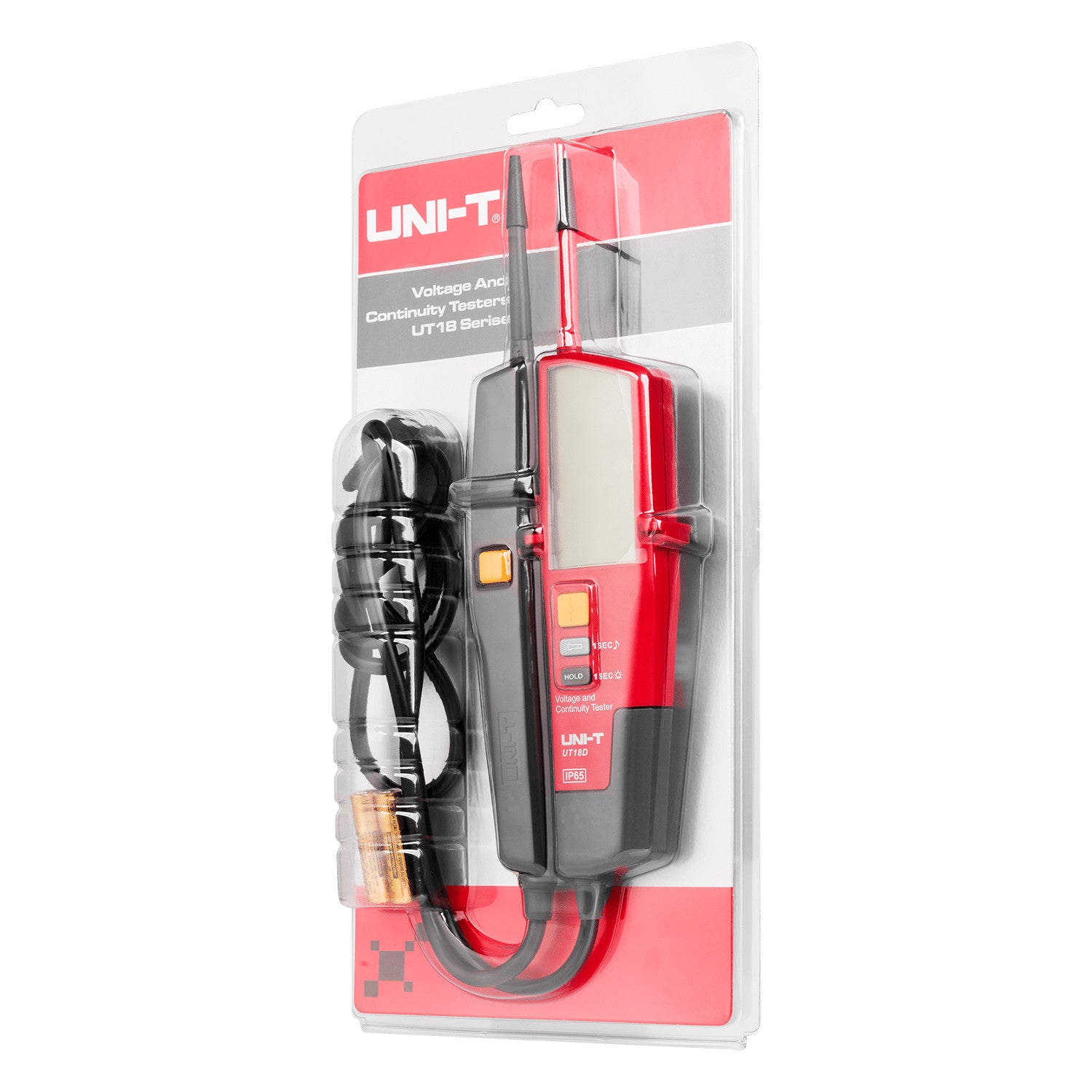

Set contains:
- Uni-t UT18D universal meter
- 2x 1.5 V (R03) batteries
- User manual
- Manufacturer's packaging
DURABILITY AND PRACTICALITY
With an IP65 rating, the UT18D is resistant to dust and water, making it ideal for use in harsh environments. Powered by two AA batteries, it offers solid construction in a compact form (272 x 85 x 31 mm, 280 g), ensuring long-term use and convenient portability.
- Ideal choice for fast and accurate voltage measurement and electrical circuit testing in various conditions
- Wide voltage measurement range from 6 V to 690 V
- Allows circuit continuity testing up to 100 kOhm and polarity detection
- RCD testing function
- Automatic testing function before measurement
- Backlit LCD screen
