DVB-T2 USB active terrestrial TV antenna for an RV
Maclean MCTV-104 is a universal antenna for receiving analog and digital DVB-T/T2 HEVC TV programs.
The antenna is characterized by small dimensions and low weight. Perfect for trucks, caravans, campers, yachts, cottages.
In this version of the antenna, the coaxial cable attachment is routed through the base of the antenna and the tube to the central part of the antenna, which makes the cable invisible after mounting the antenna.
The hermetic housing allows it to work in any climatic conditions.
A very important advantage of the MCTV-104 antenna is its omnidirectional (horizontal) directional characteristics, which in practice means that it does not need to be specially directed towards the transmitter.
It is powered from a USB socket.
Specification:
- Frequency range: 174-230 MHz, 470-698 MHz
- Energy gain: 30-33 dB, max 44 dB
- Output: 75 ohm
- Orientation: 360°
- Polarization: horizontal
- Built-in filter: LTE
- Power supply: USB 5V 30mA DC
- Diameter: 26.5 cm
- Mounting hole spacing: 42 x 42 mm
- Capable of receiving: MUX1, MUX2, MUX3, MUX8

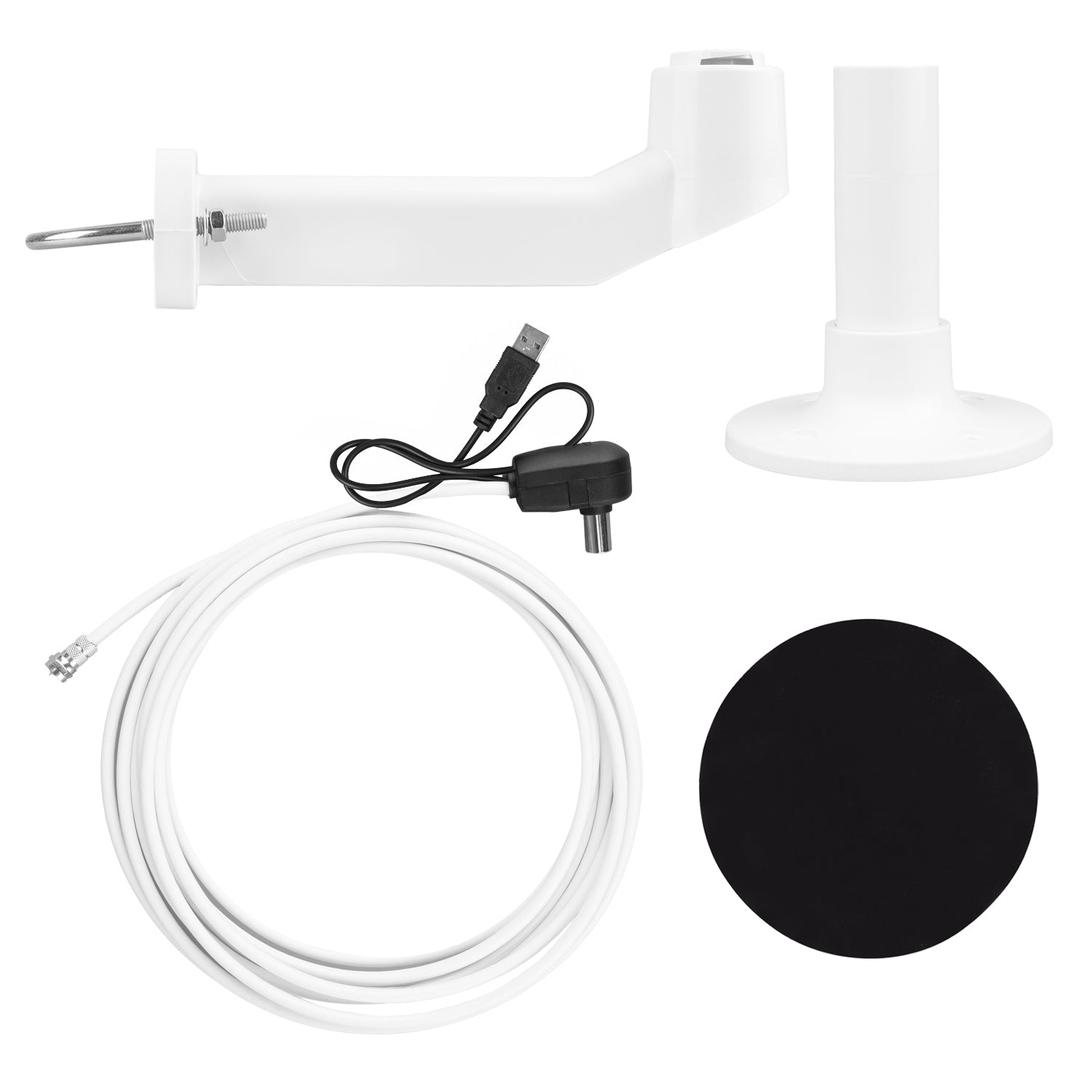

Set contains:
- Maclean MCTV-104 omnidirectional active DVB-T/T2 HEVC antenna
- Handle
- Connector
- Stand
- 75 Ohm antenna cable 5 m long terminated with F-type connector
- USB power plug with separator
- Clamp/coil
- Rubber pad
- Installation manual
- Manufacturer's packaging.
- Universal antenna for reception of analog and digital TV programs DVB-T/T2 HEVC
- Small size and weight
- Hermetic housing allows to work in all climatic conditions
- Omnidirectional (horizontal) directional characteristics
- Built-in amplifier
- Built-in LTE filter provides better and trouble-free reception
- Can be mounted in many places (roof, balcony, window), also on mobile objects (yacht, car)
- Perfect for trucks, caravans, campers, yachts, summer houses
- Manufactured in Poland
- Perfectly receives terrestrial, digital signal (DVB-T/DVB-T2)
- Powered from USB port
